Electrical Eddy Current Conductivity Test TMD-102

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TMD-102
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 10PCS/Two weeks
Detail Information
Warranty: 2 Years Operating Frequency: 60KHz,240KHz
Color: Red, Black Size: 180*80*30 Mm
Relative Humidity: 0~95% Weight: 260g
Display Screen: 240X320 Pixels TFT-LCD
High Light:

eddy current inspection equipment

,

eddy current testing machine


Product Description

Eddy Current Electrical Conductivity Meter TMD-102







TMD-102 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate,quality control,material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.



Features

★ The meter uses 60 KHz (aviation industry standard) to inspirit, and the testing data can be read in two kinds of unit: %IACS or MS/m.

★ Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.

★ Two kinds of operate languages satisfy different national demand.

★ It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.

★ The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.

★ It can store 1000 measurement data.



Applications

★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.

★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.

★ Test the conductivity aluminum when it has not been oxidized.

★ Test the purity grade of materials.

★ Test materials resistivity.

★ Material Thermal Performance analysis.



Technical parameters

NAME CONTENT
Measurement technology Eddy current
Operating frequency 60KHz,240KHz
Display screen 240X320 pixels TFT-LCD;4 kinds of background color
L*B*H 180*80*30 mm
Instrument case Anti-intense impact,water-proofing polyester
Weight 260g
Power supply High capacity, high performance lithium polymer battery
Measuring range Conductivity 6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
Resistivity Correspond the Conductivity
Distinguishing rate

0.01% IACS

0.000001Ω·(mm)2/m

Measuring accuracy

0°C to 50°C

0~23%IACS :±0.1%IACS

23%IACS~110%IACS :±0.3%IACS

Temperature compensation Automatic compensation to the value of 20 ℃.
Normal work environment Relative humidity 0~95%
Operating temperature 0℃~50℃
Language English,Chinese
Fitting Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter.
Probe

Diameter:12.7mm

(Applicable to minimum measuring area diameter at 60KHz is10mm.)

Diameter: 8mm

(Applicable to minimum measuring area diameter at 240KHz is 7CM



Note: The conductivity measurements automatically rectified to the value at 20℃.

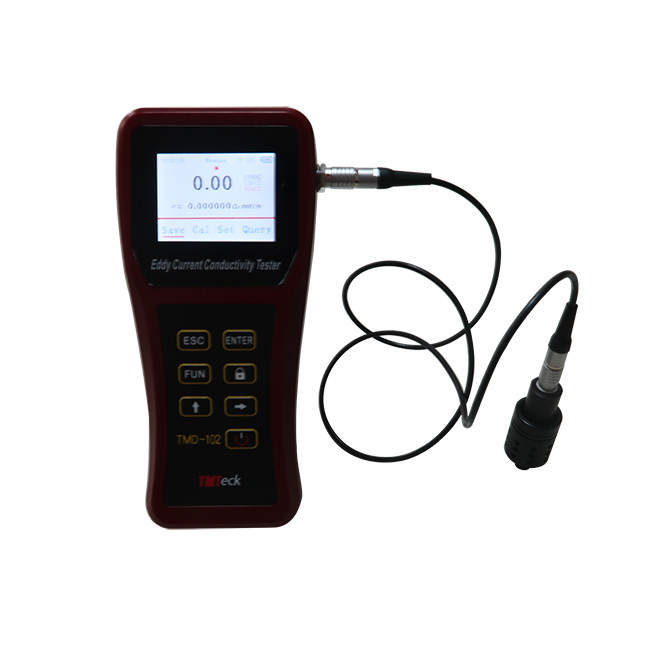

Electrical Eddy Current Conductivity Test TMD-102 0
