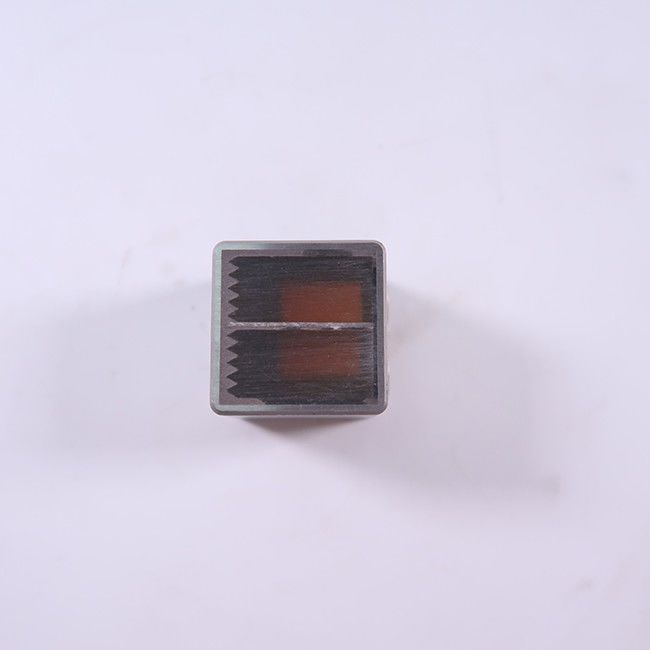

2 MHz Ultrasonic Transducer Probe High Angle Creep Ultrasonic Longitudinal Waves

Basic Information
Place of Origin: China
Brand Name: TMTeck
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Detail Information
Type: Ultrasonic Transducer Condition: 100%new
Frequency: 2 MHz Connector: Lemo00
Crystal Size: 6x10mm Or 10x15mm
High Light:

high frequency ultrasonic transducer

,

high power ultrasonic transducer


Product Description

Creep Waves Probe,ultrasonic probe transducer with high angle ultrasonic longitudinal waves




Features:
Creep Waves are high angle ultrasonic longitudinal waves. The creeping wave is actually the upper part of the envelope of a 76 degree compression wave beam which propagates just under the component surface, see Figure. These are not true surface waves and the energy is concentrated within a few millimetres of, and almost parallel to, the surface. Hence, the technique is very sensitive to shallow surface-breaking cracks whilst at the same time being relatively insensitive to surface condition
2 MHz Ultrasonic Transducer Probe High Angle Creep Ultrasonic Longitudinal Waves 0

The maximum working range is typically 45 mm in front of the probe because
the creep wave rapidly loses energy in the form of 33º indirect shear, or &39;head&39;, waves as it propagates. However, these head waves will
re-convert to a creep wave at the inner surface of the component. Like the top
surface creep wave, this inner surface creep wave is very sensitive to inner
surface breaking cracks and as it runs parallel to the inner surface it will not be sensitive to the presence of weld roots.

Creep waves have the advantage that, being longitudinal waves, they are far
less attenuated in austenitic and inconel weld metal than shear waves.

2 MHz Ultrasonic Transducer Probe High Angle Creep Ultrasonic Longitudinal Waves 1

Parameter:
P/N Frequency Mhz

CRYSTAL SIZE

mm

Connector

Dimension

AxBxCxD

2P6X10 76L 2 6x10 Lemo00 13x13x22x2
2P6X10 86L 2 6x10 Lemo00 13x13x22x2
2P10X15 76L 2 10x15 Lemo00 18x23x28x3
2P10X15 86L 2 10x15 Lemo00 18x23x28x3
