High Precision Vickers Hardness Test Unit With Large 8 Inch Lcd Screen Display

Basic Information
Place of Origin: China
Brand Name: Tmteck
Certification: CE
Model Number: TMHV-10DT
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 1pc/ wooden case
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union,Paypal
Detail Information
Test Force: 0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10Kgf(98.0N) Standard Conformed To: GB/T4340,ASTM E92
Min Measuring Unit: 0.01um Conversion Scale: Rockwell、Brinell
Hardness Measuring Range: 8~2900HV Method Of Testing Force Applied: Automatic (loading, Dwelling , Unloading)
High Light:

portable vickers hardness tester

,

vickers hardness test unit


Product Description

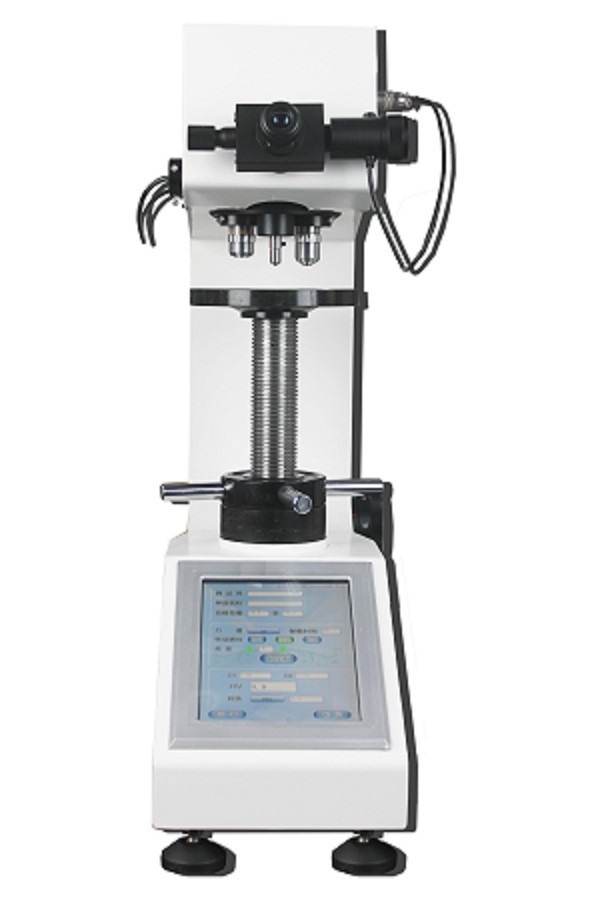

TMHV-10DT vickers hardness Tester with large 8inch LCD screen display

Main features:

TMHV-10DT with large 8’ LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.



Technical Specifications:

Model TMHV-10DT
Test force 0.3Kgf(2.94N),0.5Kgf(4.9N),1.0Kgf(9.8N),3.0Kgf(29.4N),5.0Kgf(49.0N),10Kgf(98.0N)
Carried standard GB/T4340,ASTM E92
Test resolution 0.01µm
Conversion scale Rockwell,Brinell
Hardness measuring range 8~2900HV

method of testing

force applied

Automatic (loading, Dwelling , unloading)

Test microscope

magnification

100X,200X(Both of them can be used for testing)
Test force dwell time 1~99s
Data output 8’touch screen, 20 different kinds of test result, built-in printer with RS-232 interface
Maximum height of specimen 160mm
Distance from the center to the outer wall of the indenter 135mm
Dimensions 600*190*620mm
Weight About 50Kg
Power AC220V+5%,50-60Hz





Standard Accessories:

Name Quantity Name Quantity
10X eyepiece 1 Middle, Large, V shape testing table Each 1
level 1 Regulating screw 4
Weight 3 Fuse cable(2A) 2
Standard block 2 Dust bag 1
Power cable 1 certificate,warranty,manual Each 1
Print paper 1 Wrench 1
Touch pen 1
