| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Certification: | CE |
| Model Number: | DTM600 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 4-6 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20PCS/Two weeks |
| Product Name: | X-RAY FILM DENSITOMETER | Brand: | TMTeck |
|---|---|---|---|
| Original: | China | Measuring Density Range: | Zero~5.0D |
| Measuring Area: | Phi 2mm(light Hole Diameter); | ||
| High Light: | wire type penetrameter,quantitative quality indicator |
||

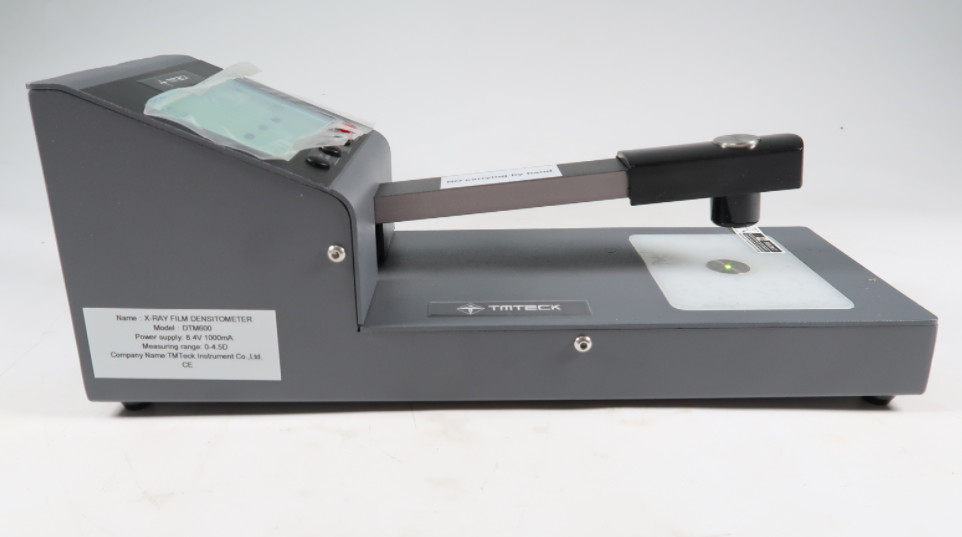

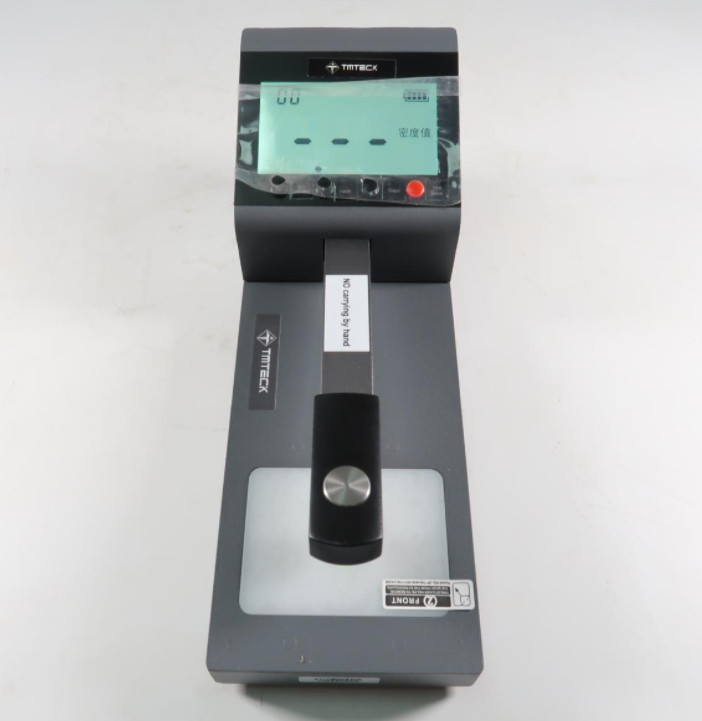

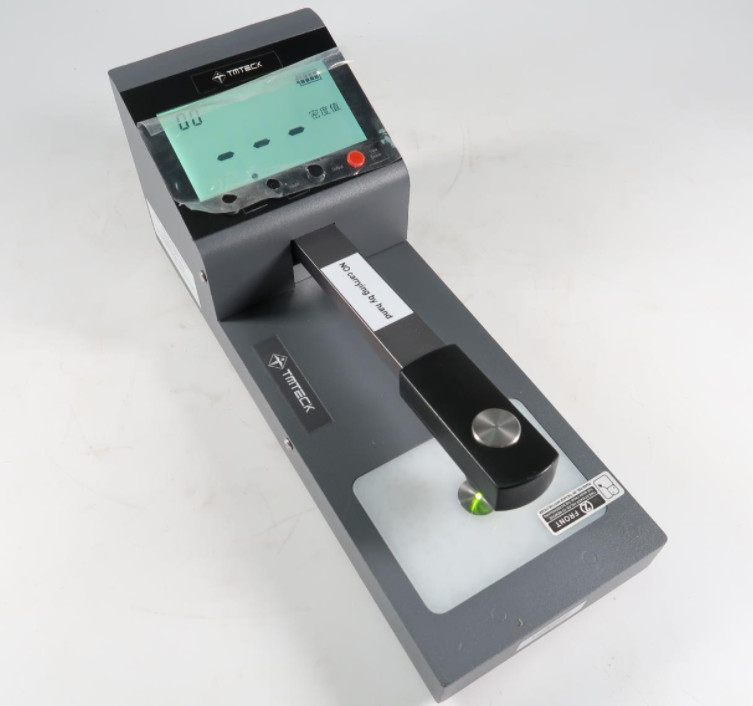

DTM600 INDUSRIAL X-RAY FILM DENSITOMETER
Product Description:
DTM-600 digital color transmission densitometer, is the electrical company through a lot of experiments, the development of a high precision, small volume, light weight, easy to carry, using computer control, has the advantages of convenient operation, high accuracy, good stability and so on.
DTM-600 digital transmission densitometer using black and white, AC modulation source, synchronization detection technology, using computer control and data processing, thus greatly improving the anti interference ability of the electric light, and temperature stability.
DTM-600 digital black and white transmission density meter, the factory has been strictly debugging and testing, the user boot, just press the zero button, you can conduct a formal test. Random standard density film for user verification.
DTM-600 Digital black and white transmission densitometer5.0DWithin the transmission density5.0DIt also has reference value for pressure vessels, ships, chemicals, bridges, hospitals and so onXIdeal instrument for quality analysis of light sheet.
Product performance:
| Measuring density range | Zero~5.0D; |
| Measuring area | Phi 2mm(light hole diameter); |
| Repeatability error | 0.03D; |
| Measurement error | (0.00D~3.00D) + 0.03D; (3.00D~4.00D) + 0.05D; (4.00D~5.00D) + 0.08D |
| Display mode | ThreeLEDDigital display; |
| Power supply | AC220V + 10% 50HZ; |
| power consumption | Less than 7W; |
| Use environment | 0~40 C, relative humidityLess than 85%KH; |
| 9Outline size | 330 x 110 x 116mm; |
| 10Weight | 1.7Kg. |
Working principle
DTM-600The digital black and white transmission densitometer is used for measuring transparent material(As the film base)The amount of light,The utility model relates to an instrument for determining the amount of light absorbed by a surface, which is mainly composed of a lighting system, a collecting light, a measuring system and a signal processing system. The use of AC modulated light source to provide light source with a certain quality and stability, through the photoelectric sensor for receiving light to be measured through the film, and convert it into electrical signals, completes the signal processing into the microcontroller, will eventually be measured film density value is displayed on the display.
Three, DTM-600Digital black and white transmission densitometer (black and white densimeter)

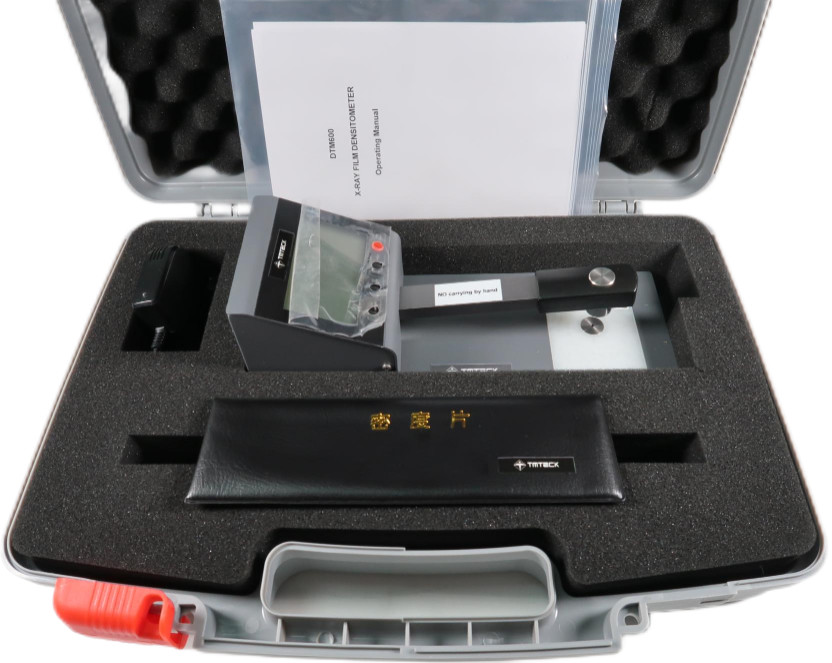

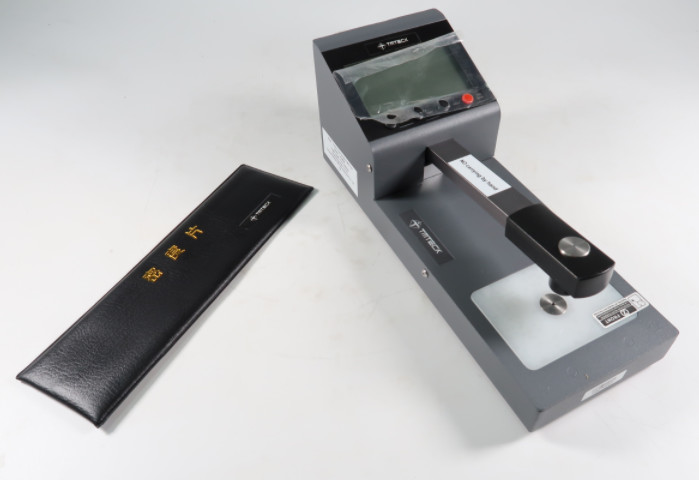

STANDARD PACKAGE
| Black and white densitometer mainframe | 1pc |
| Power cord | 1pc |
| Standard density film | 1pc |
| Spare fuse | 1pc |
| Instructions for use | 1pc |
| Instrument warranty card | 1pc |
| Certificate of conformity | 1pc |
