| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Model Number: | GS |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton, 3kgs |
| Delivery Time: | 4-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50PCS/Two weeks |
| Product: | GS Test Block | Material: | Aluminum/1018 Steel/304 Stainless Steel |
|---|---|---|---|
| Weight: | 3kgs | Type: | NDT Accessories |
| High Light: | GS Series Ultrasonic Calibration Block,NDT Ultrasonic Calibration Block,Aluminum Ut Calibration Blocks |
||
GS SERIES CALIBRATION BLOCK SPECIFICATION
|
MODEL |
TEST BLOCK ARC RADIUS OF CURVATURE |
PIPE OD RANGE |
TEST BLOCK ARC RADIUS OF CURVATURE |
PIPE OD RANGE |
| R1 | R2 | |||
| GS‐0 | 11.5 | 20~26 | 14.5 | 26~32 |
| GS‐ 1 | 18 | 32~40 | 22 | 40~48 |
| GS‐ 2 | 26 | 48~57 | 32 | 57~72 |
| GS‐ 3 | 40 | 72~90 | 50 | 91~110 |
| GS‐4 | 60 | 110~132 | 72 | 132`159 |
| GS‐5 | 84 | 150~250 | 110 | 200~325 |
| GS‐ 6 | 163 | 300~487 | FLAT | ≥500 |
Specifications:
NB/T47013.3-2015
Calibration Function:

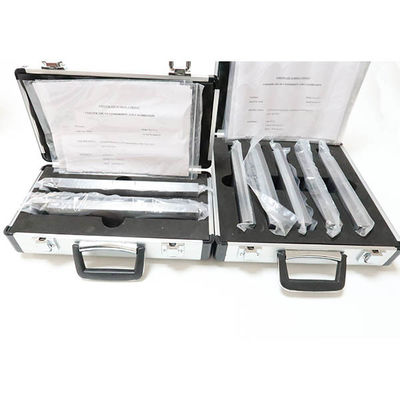

GS Series Calibration Block is used for ultrasonic testing of circumferentially butt joints (type II welded joints) for pipes (applicable OD range 20-500mm).
