Digital Hardness Meter Die Cavity Of Molds Heavy Work Piece 3 Inch Screen Lcd

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: EN ISO 16859-2016
Model Number: THL370
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/Two weeks
Contact Now
Detail Information
Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS Measuring Range: HLD(170~960)HLD
Warranty: 2 Years Memory: 600 Groups Max.(relative To Impact Times 32~1)
Dimension: 210mm*85mm*35mm Communication Interface: USB1.1
Power: 7.4V Li Battery
High Light:

digital hardness meter

,

handheld hardness tester


Product Description

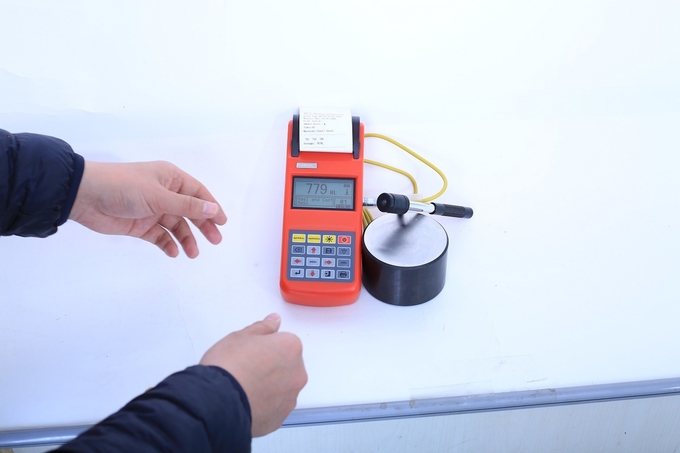

Leeb hardness tester THL370, Die cavity of molds, Heavy work piece, 3 inch screen LCD



Advantages

  • Largest screen 3 inch , showing all functions and parameters.it is the largest screen of leeb hardness tester in China , easy read and operate.
  • The best impact device in China we offer ,stable, ageing resistance,through exam ,we can 2 years long time using ,but others can not.
  • Test at any angle, even upside down.
  • Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
  • Seven impact devices are available for special application. Automatically identify the type of impact devices.
  • Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
  • Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
  • Battery information indicates the rest capacity of the battery and the charge status.
  • User calibration function.
  • USB port with the PC humanity multi-functions data proceeding software.
  • Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
  • Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).
  • Auto power off to save energy.
  • Excellent after-sale service system for high quality products---3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Standard according including: national standard: GB/T 17394.1-2014; GB/T1172-1999
EU standard: EN ISO 16859-2016
ASTM standard: ASTM A956(2012)

Main Application

  • Die cavity of molds
  • Bearings and other parts
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Heavy work piece
  • The installed machinery and permanently assembled parts
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specification

  • Measuring range:HLD(170~960)HLD
  • Measuring direction:360 drgree.
  • Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
  • Display:3 inch screen ,one of the biggest in China.
  • Data memory: 600 groups max.(relative to impact times 32~1)
  • Printing paper: width is (57.5±0.5)mm, diameter is 30mm
  • Battery pack: 7.4V Li battery
  • Battery charger: 9V/1A
  • Continuous working period:about 150 hours(With backlight off, no printing)
  • Communication interface:USB1.1
  • Outline dimensions:210mm*85mm*35m

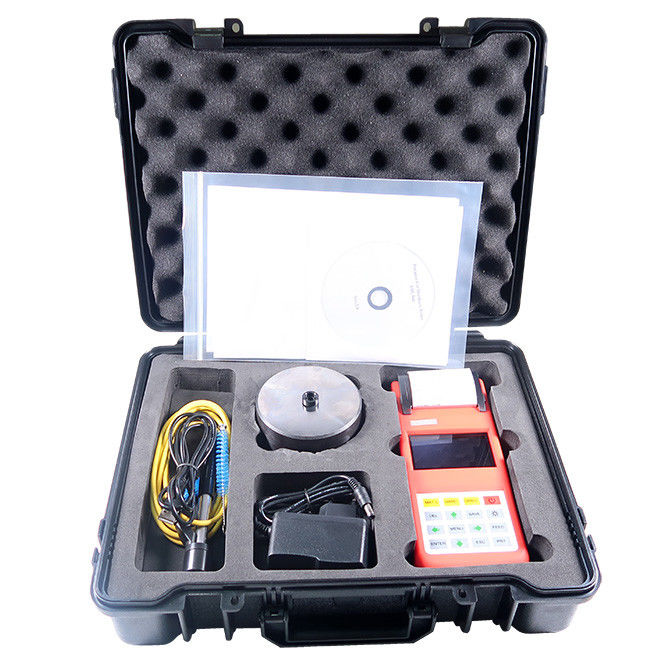

Standard Configuration



  No. Item Quantity Remarks
Standard Configuration 1 Main Unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6 Battery Charger 1 9V 1A
7 Paper for printing 1
8 Manual 1
9 Instrument case 1
10 Software 1
11 Cable with CD 1
