Surface Roughness Instrument Large Capacity Data Memory Connected To Computer Printer

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE、ISO9001
Model Number: TMR200
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-5 work day
Payment Terms: T/T, Western Union
Supply Ability: 30PCS/Two weeks
Contact Now
Detail Information
Indicating ErrorIndicating Error: Not More Than ± 10% The Maximum Driving Trip: 17.5mm/0.7inch
Warranty: 2 Years Variation Of Indication: Not More Than 6%
Dimensions (L×W×H): 143 X 55 X 42mm Weight: 400g
The Sampling Length L: 0.25mm,0.8mm,2.5mm,8mm Evaluation Length: (1-5)l
High Light:

surface roughness instrument

,

surface roughness testing machine


Product Description

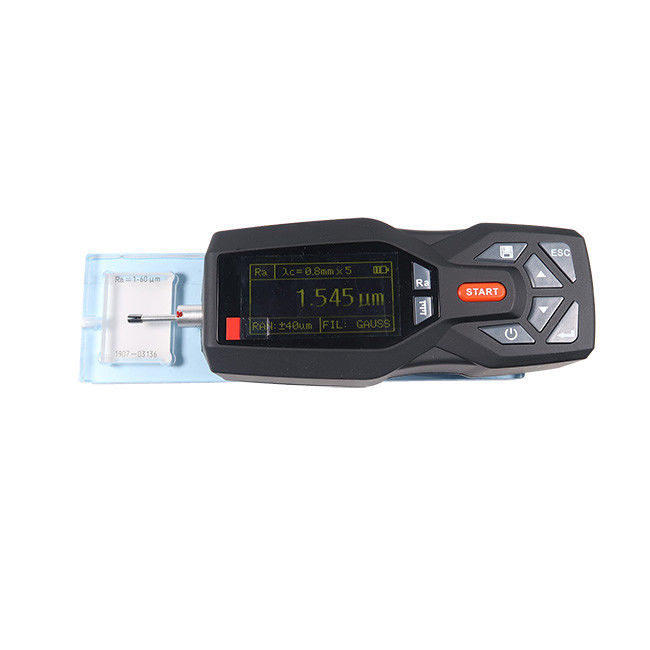

Surface Roughness gauge TMR200

The TMR200 portable roughness measuring instrument is a new product of TMTECK , it is a portable stylus surface roughness shape measuring instrument, applicable to the workshop testing station, laboratory, metrology room environmental detection. Measurement of parameters in line with international standards of the United States, Germany, Japan and is compatible with Britain and other industrial developed country standards. Measurement results can be digital and graphic LCD display, also can be output to the printer.



Features:

1.Electromechanical integration design, small volume, light weight, easy to use;

2.Using DSP chip to control and data processing, high speed, low power consumption;

3.Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

5.Display information rich, intuitive, can display all the parameters and graphics;

6.Compatible with ISO, DIN, ANSI, JIS national standards;

7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;

8.Residual quantity indicator icon, prompting the user to charge;

9.Display of the charging process instructions, the operator can understand the degree of charge

10.Working time more than 20 hours of continuous work

11.Large capacity data memory, can store 100 groups of original data and waveform.

12.Real-time clock settings and display, convenient data recording and storage

13.With automatic dormancy, automatic shutdown and power saving function

14.Reliable control motor to go dead circuit and software design

15.Measurement information display, menu prompt information, false information and switch machine and other tips that information;

16.Full metal shell design, sturdy, compact, portable, high reliability.

17.Can be in English freely switch

18.Can be connected to a computer and printer;

19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.



Surface Roughness Instrument Large Capacity Data Memory Connected To Computer Printer 0

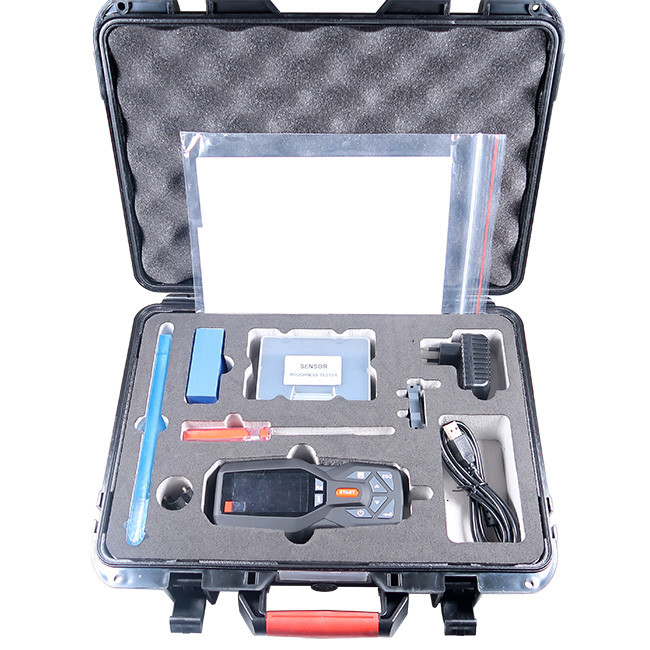

Standard configuration:

Main body 1
Standard sensor 1
Reticle temp-let 1
Template support 1
Movable support 1
Power adapter 1
USB charging cable 1
instrument container 1



The Stand for TMR200 for optional

Surface Roughness Instrument Large Capacity Data Memory Connected To Computer Printer 1



The performance index of sensor:

The performance index of sensor:
The detection principle Current induction
Measuring range 160 μm
Tip radius 5 μm
Tip material Diamond
Stylus force 4mN(0.4gf)
Stylus angle 90°
The guide head vertical radius 45mm



Technical parameters:

Item Description
The maximum driving trip 17.5mm/0.7inch
Indicating error Not more than ± 10%
Variation of indication Not more than 6%
The measured profile Roughness, waviness, the original contour
Parameter Ra(0.005μm ~ 16μm),Rz(0.02μm ~ 160μm),Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.
Filter RC,PCRC,Gauss,ISO13565
The sampling length L 0.25mm,0.8mm,2.5mm,8mm
Evaluation length L (1-5)l
Internal storage capacity 100 groups of original data
External input / output interface USB
Electric source Built-in rechargeable lithium ion battery or external power adapter



Outline dimension:

143 x 55 x 42mm (host).

Weight: about 0.4KG (host).
