Usa Style Ultrasonic Transducer Contact Probe / Single Straight Beam Bnc Probe

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: C TYPE
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Contact Now
Detail Information
Type: Ultrasonic Transducer Condition: 100%new
Frequency: 2.25,5 MHz Crystal Size: 12,20,24mm
Connector: BNC
High Light:

high frequency ultrasonic transducer

,

ultrasonic transducer probe


Product Description

USA CONTACT PROBE Replaceable USA Style Single straight beam BNC Probe



Feature:



S/N.:151195

Probe Parameters
Probe Frequency:2.25Mhz
Crystal Dimension:1.000inch
Center Frequency:2.35MHZ
Sensitivity:-5dB
Bandwidth(-6dB):>45%
Angular Deviation: +/-1 deg
Temp.:-5—50C
Probe Type:Straight beam
Connector Type: BNC
Model Frequency MHz Crystal Dia.(in/mm) Standard Connector
C2-50 2.25 .50".12mm BNC
C5-50 5 .50".12mm
C2-75 2.255 .75",20mm
C5-75 5 .75",20mm
C2-100 2.25 1",24mm
C5-100 5 1",24mm

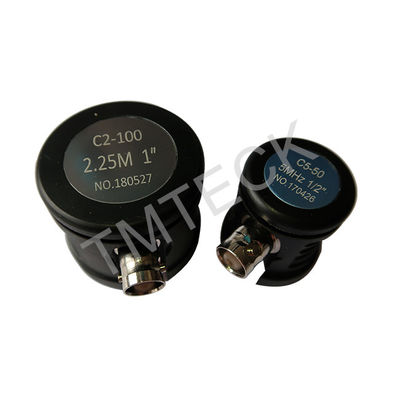

Usa Style Ultrasonic Transducer Contact Probe  / Single Straight Beam Bnc Probe 0

Usa Style Ultrasonic Transducer Contact Probe  / Single Straight Beam Bnc Probe 1
