| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Certification: | CE |
| Minimum Order Quantity: | 1pc |
| Delivery Time: | 4-6 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Warranty: | 12 Months | Application: | Industrial Detection |
|---|---|---|---|
| Usage: | Flaw Detection | Power: | Electronic |
| Name: | Tmteck TEM-620XH Rebar Scanner | Certification: | CE |
| High Light: | rebar scanner Portable,Integrated rebar scanner,Portable rebar detector |
||

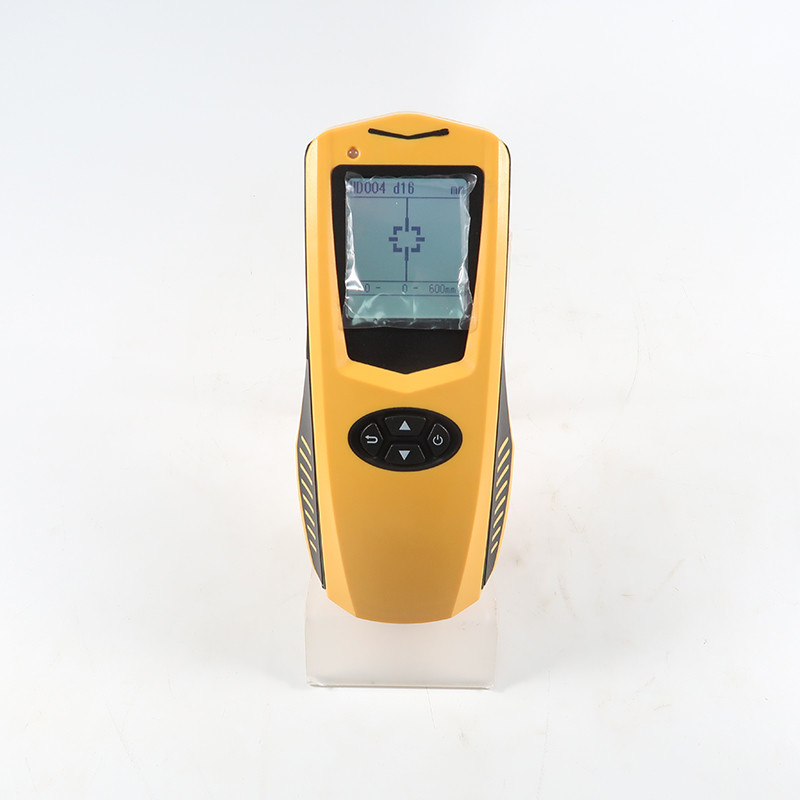

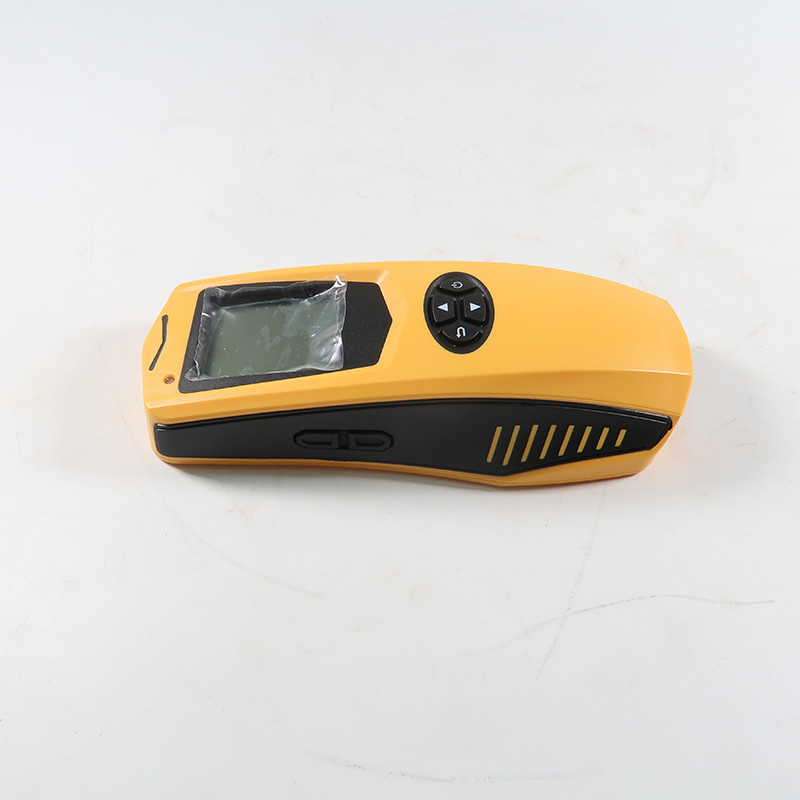

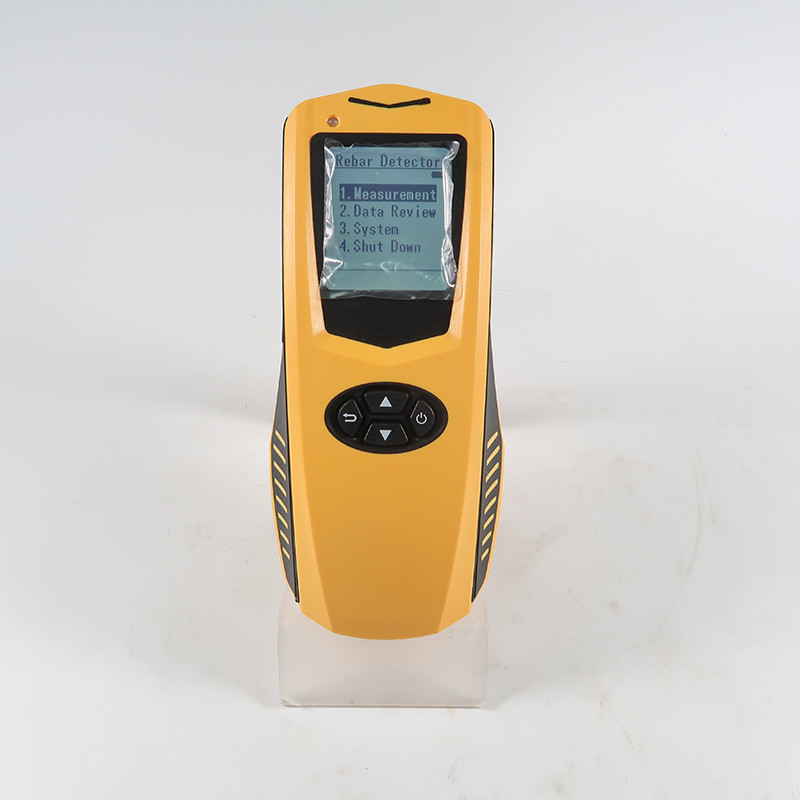

TEM-620XH Rebar scanner portable rebar integrated detector
The first generation portable rebar integrated detector TEM-620XH uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data.
TEM-620XH Rebar scanner is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology
| Model | TEM-620XH Rebar scanner | |
| Diameter Measuring Range(mm) | φ6~φ50 | |
| Measuring Range (mm) | 5~100 | |
| Thickness Measuring Accuracy(mm) | 5~40 | ±1 |
| 41~60 | ±2 | |
| 61~80 | ±4 | |
| 81~90 | ±5 | |
| 91~100 | ±6 | |
| Diameter Measuring Modes | √ | |
| JGJ Measurement | √ | |
| Data Storage | USB transfer | |
| Off time | √ | |
| Working Temperature | -10℃~42℃ | |

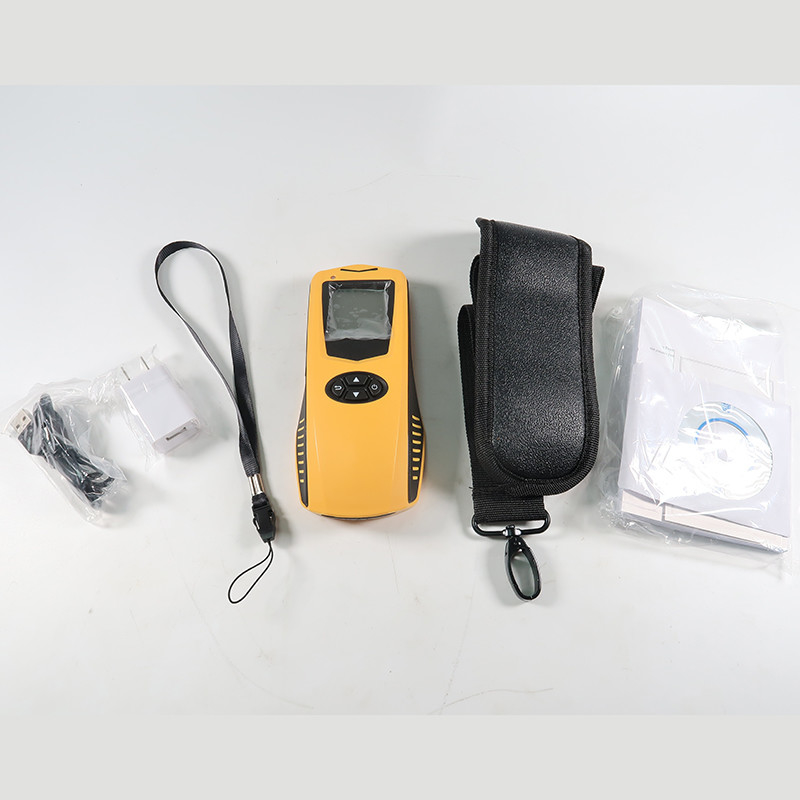

| Rebar scanner | ×1 Unit |
| Charger | ×1 Unit |
| USB cable | ×1 Unit |
| User Manual | ×1 Unit |
| Warranty Card | ×1 Unit |
| Software CD | ×1 Unit |

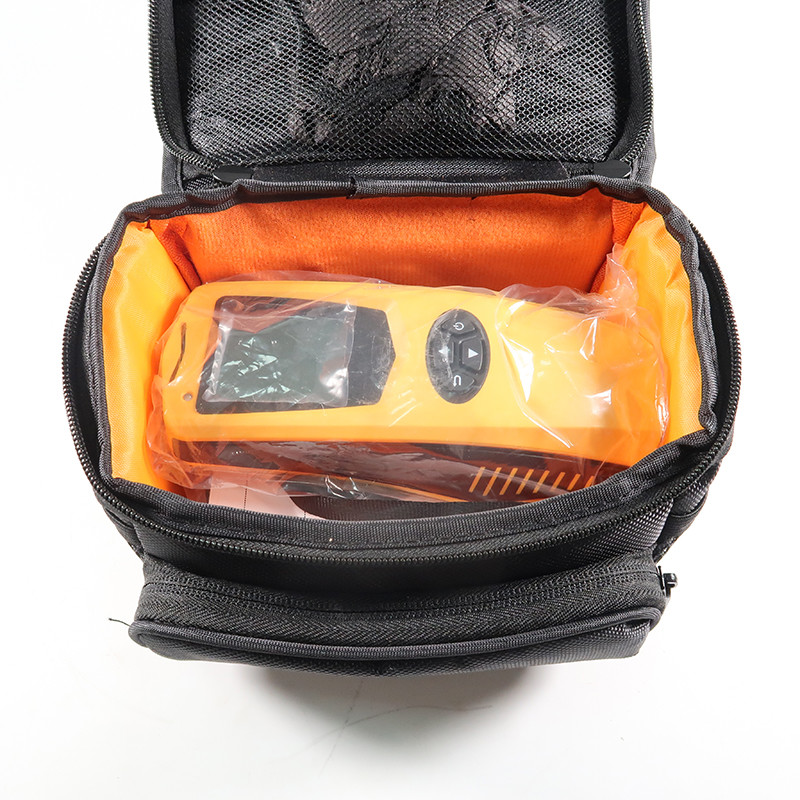

| Carrying Bag | ×1 Unit |
