Product Name: | Densitometer | Brand: | TMTeck |
---|---|---|---|
Original: | China | Display Mode: | Digital |
Power Dissipation: | 25W | Repeatability: | ±0.02 |
High Light: | field strength indicator,quantitative quality indicator |

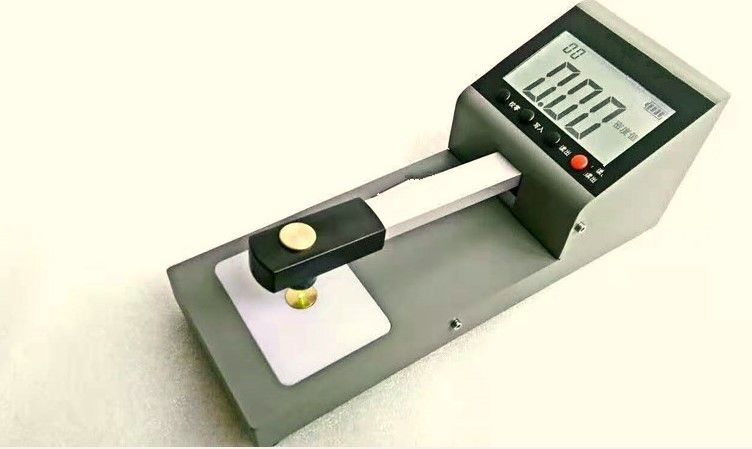

TM40 Black-White Densitometer
TM40 Series
Black-White Densitometer
TMTECK Instrument TM40 Series—Specification
Introduction
TM40 series black-white densitometer is used for measuring the blackness of films; it has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. It can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc. each unit is equipped with density tablet and calibration software for testing its accuracy.
Specification
Density Range | D=0.00—4.00 (TM40) | |
D=0.00—4.50 (TM45) | ||
D=0.00—5.00 (TM50) | ||
Repeatability | ±0.02 | |
Measuring Error | 0.00—2.00 | 0.02 |
2.00—4.50 | 0.05 | |
4.50—5.00 | 0.06 | |
Power | 50 ~ 60Hz, 100V-120V or 200V-240V | |
Power Dissipation | 25W | |
Aperture Size | Dia. 2mm | |
Display | Three digital display | |
Light Source | 27pcs LED | |
Sampling Time | 0.8 s | |
Communication Port | RS232 Port, optional USB connection | |
Working Environment | Temperature 0 ℃~40 ℃, Relative humidity(RH)≤85% | |
Dimension | 260×265×110 (H×W×L) | |
Weight | 2.1kg | |
Demonstration of Calibration
The users can calibrate the densitometer by their selves with our calibration software and standard step density tablet.
