Webster Hardness Tester

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: W Series Webster Tester
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4-6 Work days
Payment Terms: T/T, Western Union
Supply Ability: 30PCS/Two weeks
Detail Information
Product Name: Webster Hardness Tester Model: W-20a
Color: Silver Resolution: 0.5 HW
Capacity: 6mm (Expendable To 13mm) Range: 0-20 HW (40-100HRE)
Weight: 0.5kg Warranty: 2 Years
High Light:

Thick Wall Portable Hardness Tester


Handheld Hardness Tester

Product Description

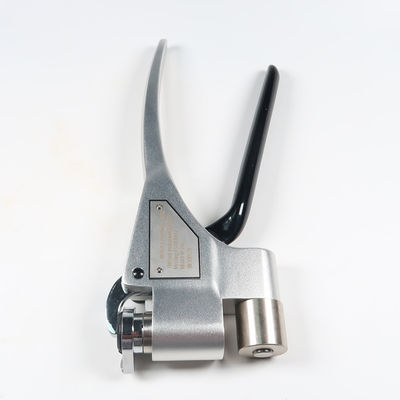

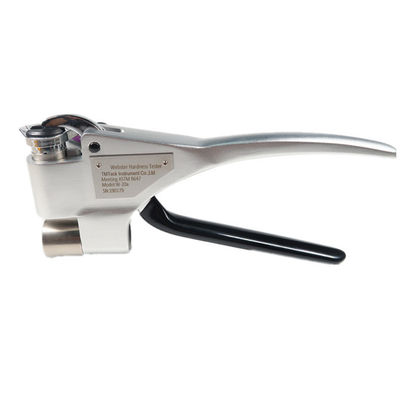

Webster Hardness Tester W-20a


TMTeck W Series Webster Tester is a portable instrument which can on-site test soft metals quickly. The Webster Hardness Tester is used to inspect the result of heat treatment, to sort the materials in the warehouse, and to test the long workpieces inconvenient taken to the lab. The Webster hardness tester is very suitable for quality inspection of batch products one by one in the production field. The hardness value can be read directly on the indicator dial.

MODEL B Webster Hardness Tester is the choice of virtually every aluminum extrusion manufacturer inChina. This first hardness tester specially crafted for aluminum has improved the aluminum industry.

A test can be completed by one press.

Model W-20 equivalent to Model B Tester

Models for testing brass, copper and mild steel respectively

Modification models for testing thick pieces or slim tubings

Tests sheets, extrusions, pipes

Very fast, very simple and very portable

Small indentation

Conforms to ASTM B647

Recommended in YS/T420.


Webster Hardness Tester for Aluminum Alloys W-20, W-20a, W-20b

MODEL Dimension of specimen Net weight Applications
W-20 08-6mm 0.5KG Regular type for aluminum alloy profile, pipe and sheet
W-20a 0.8-13mm 0.5KG Thick wall aluminum alloy material
W-20b Min dia 6mm 0.5KG aluminum alloy pipe of small diameter and aluminum alloy


Webster Hardness Tester for Copper Alloys W-B75, W- B75b, W- BB75, W-BB75b

MODEL Dimension of specimen Net weight Applications
W-B75 Thickness: 0.8-6mm 0.5KG Extra-hard aluminum, brass
W-B75b Min Dia:6mm 0.5KG Slim extra-hard aluminum or brass pipe
W-BB75 Thickness: 0.8-6mm 0.5KG Copper and soft copper alloys such as annealed brass
W-BB75b Min Dia:6mm 0.5KG Copper or annealed brass pipe


Webster Hardness Tester for Mild Steel W-B92

MODEL Dimension of specimen Net weight Applications
W-B92 0.8-6mm 0.5KG Soft steel materials not exceeding 230HV, such as code rolled sheet, hot rolled sheet and galvanized sheet etc.


B+ Webster Aluminium Hardness Tester

The Webster hardness tester is a portable instrument for fast hardness inspection of aluminum alloy. The hardness value can be directly read on the dial after one simple press on the handle. The Webster hardness tester conforms to ASTM B647. It is suitable for testing the mechanical performance of the result of heat treatment of aluminum extrusions, sheets and tubes. The typical application is 100% quality inspection as acceptance check at the production line, in the warehouse or in the office.

The new B+ Webster hardness tester features a wear-free nanotechnology indentor. The indentor is so hard that it cuts glass like a diamond tool. It has a guaranteed life of three years, and its actual life is more than five years under normal use condition. This is the first hardness tester indentor in the industry to have a warranty.

A major factor affecting the accuracy of most Webster testers is that when exerting excessive force on the handles after the bottom is felt, the indicator will continue to move half or one graduation higher. This is no longer a problem for the redesigned B+ Tester, and the reading is consistent for all operators.


Wear-free indentor w/ 2 yr warranty

Less frequent calibration required

More consistent reading

Oxide coated aluminum handles

Exchangeable indicator dial assembly


Range: 0-20 HW (40-100HRE)

Resolution: 0.5 HW

Capacity: 6mm (Expendable to 13mm)

Net weight: 0.47kg


Webster Hardness Tester 0
