high accuracy Ultrasonic Thickness Gauge Plus Data Transfer To Pc

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TM210plus
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton 30*15*24cm 2.5kg
Delivery Time: 3-5 work day
Payment Terms: T/T
Supply Ability: 50PCS/Two weeks
Detail Information
Accuracy: ±(0.5%Thickness +0.02)mm Battery: 2pcs 1.5V AA Size
Measurement Range: 0.75mm~300.0mm Display: 128×64 LCD With LED Backlight
Sound Velocity: 1000m/s~9999m/s (0.039~0.394in/µs Communication:: USB Serial Port
High Light:

ultrasonic gauge thickness tester

,

ultrasonic metal thickness gauge

,

ultrasonic thickness measuring device


Product Description

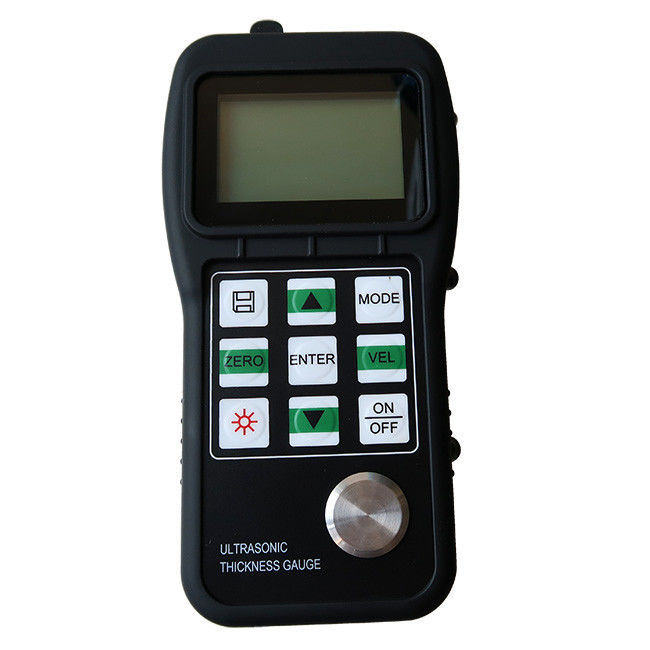

Ultrasonic thickness gauge TM210Plus





Feature

1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2. Transducer models are available for special application, including for coarse grain material and high temperature applications.

3. Probe-Zero function, Sound-Veloctiy-Calibration function.

4. Two-Point Calibration function.

5. Coupling status Indicator showing the coupling status.

6. Battery information indicates the rest capacity of the battery. Ultra-low power consumption, it is can continue working 100 hours.

7. Auto sleep and auto power off function to conserve battery life.

8. Usb port with Protective Membrane and datapro software to process the memory data on the PC.

9, Adjust gain function ,can easy to test the cast iron material,



Specifications

Display: 128×64 LCD with LED backlight.
Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch)
Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs
Display resolution:0.01mm or 0.1mm (lower than 100.0mm)
0.1mm (more than 99.99mm)
Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions
Units: Metric/Imperial unit seletable.
Lower limit for steel pipes:
5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)
10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)
Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).
Communication: USB serial port
Outline Dimensions: 150mm×74mm×32mm
Weight: 238 g
Four measurements readings per second for single point measurement,
Memory for up to 5 files(up to 100 values for each file) of stored values



Configuration

  No Item Quantity Note
Standard Configuration 1 Main body 1
2 Transducer 1 Model: TM-08
3 Couplant 1
4 Instrument Case 1
5 Operating Manual 1
6 Alkaline battery 2 AA size
12 DataPro Software 1
13 Communication Cable 1

Optional

Configuration

7 Transducer: ZT-12   Appendix A
8 Transducer: TM-06
9 Transducer: HT5



Probe optional for ultrasonic thickness gauge

Model Freq. MHz Diam. Min. Measuring range Lower limit Description
ZT-12 2 12 3.0mm-300.0mm (in steel) 20 For thick, highly attenuating, or highly scattering materials
TM-08 5 8 1.2mm-230.0mm (in steel) ¢20mm×3.0mm Normal measurement
TM-08/90 5 8 1.2mm-230.0mm (in steel) ¢20mm×3.0mm Normal measurement
TM-06 7 6 0.75mm-80.0mm (in steel) ¢15mm×2.0mm For thin pipe or small curvature pipe wall thickness measurement
HT-5 5 13 3mm-200mm (in steel) 30 For high temperature measurement (up to 300℃)
HT5-2 5 13 3mm-200mm (in steel) 30 For high temperature measurement (up to 550℃)
