| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Certification: | CE、ISO9001 |
| Model Number: | TMR120 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 work day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30PCS/Two weeks |
| Accuracy: | ±5% | Roughness Parameter: | Ra,Rz,Rq,Rt |
|---|---|---|---|
| Warranty: | 2 Years | Power Supply: | 3.7V Li-ion Battery |
| Relative Humidity: | <90% | Dimensions (L×W×H): | 106×70×24mm |
| Weight: | 200g | Measuring Range: | Ra: 0.05-10.0μm Rz: 0.1-50μm |
| High Light: | surface roughness instrument,surface roughness testing machine |
||

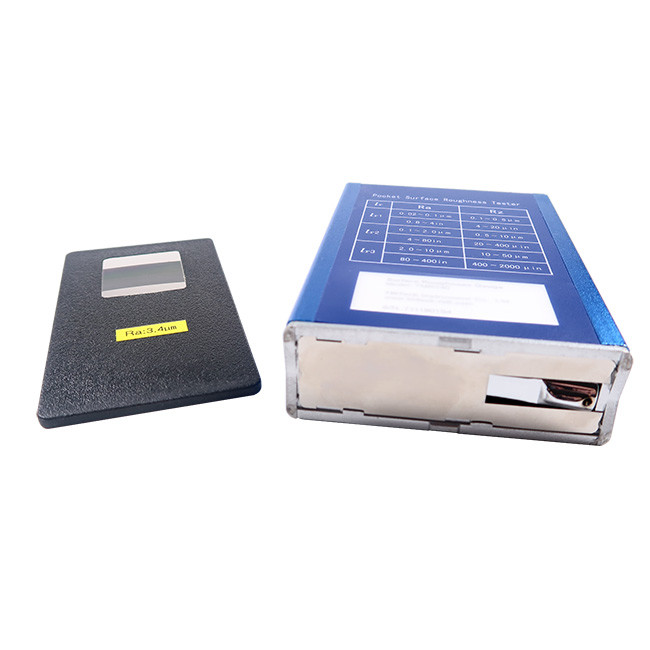

Surface Profile gauge TMR120
Features:
Pocket-size & economically price
Useing the high speed microprocessor DSP;
Using the OLED screen,bright and without visual angle
Data ourput USB port
Large measuring range suitable for most materials
Measures flat,outer cylinder and sloping surface
Both Ra and Rz parameters in one instrument
Works on 3.7V rechargeable lithium-battery, work while charging
Real time battery indicator
TECHNICAL SPECIFICATIONS
| Roughness parameter | Ra,Rz,Rq,Rt |
| Tracing length | 6mm |
| Tracing speed | 1.0mm/sec |
| Cut-off lengths | 0.25mm/0.8mm/2.5mm |
| Evaluation length | 1.25mm/4.0mm |
| Measuring range | Ra: 0.05-10.0μm Rz: 0.1-50μm |
| Accuracy | ±5% |
| Repeatability | <12% |
| Radius and angle of the stylus point |
Diamond,Radius : 10μm±1μm Angle: 90°(+5°or -10°) |
| Power supply | 3.7V Li-ion battery |
| Recharging time | 3 hours |
| Operating temperature | -20-40 ℃ |
| Relative humidity | <90% |
| Dimensions (L×W×H) | 106×70×24mm |
| Weight | 200g |
Standard delivery:
Main unit TMR120
Specimen Ra
Charger & USB cable
Instruction manual
Carrying case
