Auto Turret Micro Vickers Hardness Tester / Microhardness Unit High Precision

Basic Information
Place of Origin: China
Brand Name: Tmteck
Certification: CE
Model Number: TMHV-1000MDT
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 1pc/ wooden case
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100pcs/month
Detail Information
Hardness Measurement Range: 8~2900HV Test Force Loading Mode: Automatic (loading、dwell、unloading)
Magnification Of Microscope: 400X(testing),100X(observation) Dwell Time: 1-99s
Max. Height Of Specimen: 100mm
High Light:

micro hardness testing machine

,

hardness testing equipment


Product Description

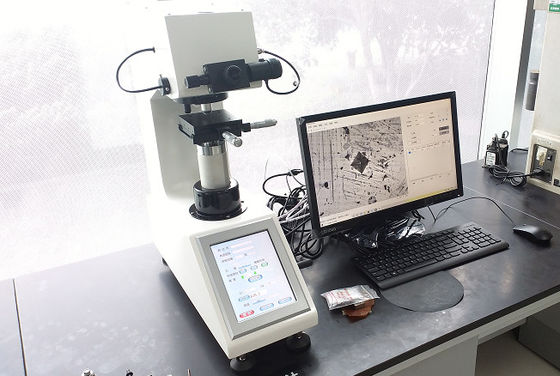

TMHV-1000MDT Auto Turret Micro vickers hardness Tester

Main features:
TMHV-1000MDT adopts 8-inch touch screen display, dual language setting, convenient for users to choose;The operation interface adopts menu-type structure. Hardness scale HV or HK can be selected on the operation panel.During the test, the pressure head and objective lens automatically switch with each other, and the test point is automatically positioned accurately;Test hardness value, automatic calculation, automatic display, automatic storage, automatic data processing, printing;Various hardness values can be converted to each other;The brightness of the light source can be adjusted.
The optical cross guide rail is adopted to ensure the guiding accuracy;The speed and stability of transmission can be realized by using the two-stage pinion and rack transmission.High transmission ratio high precision worm gear worm, ensure more accurate transmission force.
Can be equipped with a built-in camera, the image is clearer
Can be calibrated according to the standard hardness block or length scale, so that the hardness value more accurate in line with the requirements.
Rs-232 interface is available for computer connection.
Technical Specifications:





Model TMHV-1000MDT
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1Kgf (9.8N)
Carried standard GB/T4340.2,ASTM E92
Measurement resolution 0.01µm
Data output 8-inch touch screen displays readings, can store 20 kinds of test results, built-in printer and rs-232 interface, optional U disk
Conversion Rockwell,Brinell
Hardness measurement range 8~2900HV
Test force loading mode Automatic (loading,dwell,unloading)
Magnification of microscope 400X(testing),100X(testing,observation)
Dwell time 1-99s
Max. Height of specimen 100mm
Distance from the center to the outer wall of the indenter 130mm
X-Y stage dimension:100*100mm movement :25*25mm
size 540*260*650mm
weight  about 50Kg
Power AC220V+5%,50-60Hz

Operation interface:

Auto Turret Micro Vickers Hardness Tester / Microhardness Unit High Precision 0



Hardness calibration:

Auto Turret Micro Vickers Hardness Tester / Microhardness Unit High Precision 1

Data

Auto Turret Micro Vickers Hardness Tester / Microhardness Unit High Precision 2

Standard accessories:



Item Quantity Item Quantity
Axle weight
  1.
Weight
  1.
10X eyepiece
  1.
Micro standard block(high,medium) Each 1
XY stage
  1.
Regulating screw
  1.

level

  1.
Fuse (2A)
  1.
Power cable
  1.
Dust bag
  1.
Certificate, warranty card
  1.
Manual
  1.
