|Dial Value:||0 ～ 100HD||Needle Stroke:||2.5 Mm|
|Measure Range:||10 ～ 90HD||Needlepoint Size:||SR 0.1 Mm|
digital rubber hardness tester,
rubber hardness testing machine

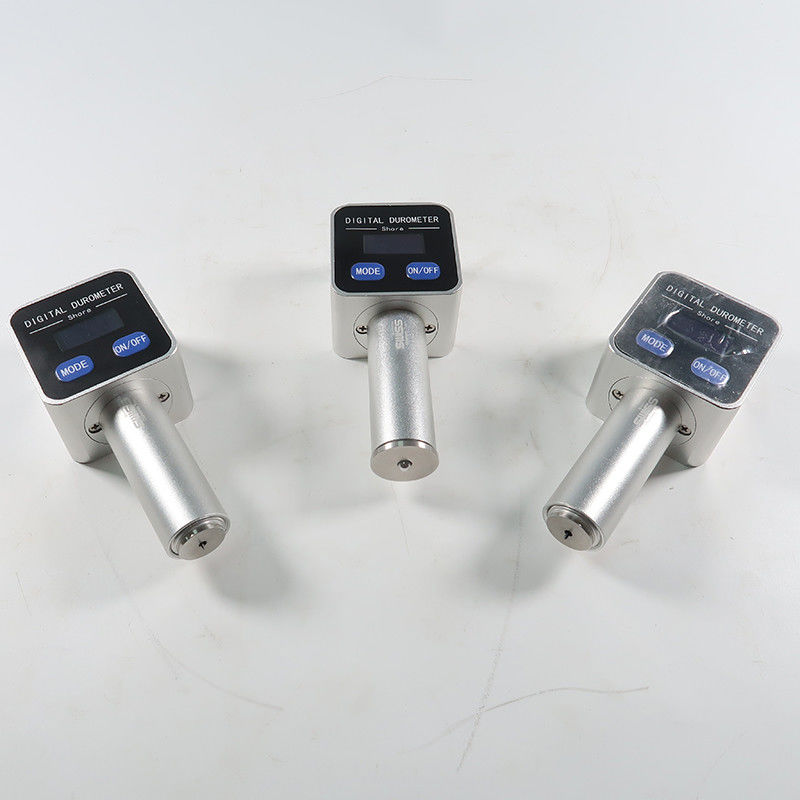

NEW TYPE digital shore durometer, rubber hardness tester,shore hardness tester TS-300(TS-300A and TS-300D)
DIN ISO 7619, DIN EN ISO 868, ASTM D2240, NF EN ISO 868, JISK 6253
TMTeck offers Digital Hardness Tester TS-300 series which provides significant
test data for the use in laboratory or field.
Companies that develop or use the products made of soft elastic materials
produce, have usually a laboratory in which the products and raw material are
regularly tested according to the standard.
1. TS-300 series housing is made of aluminum alloy which provides robust
structure and light weight
2. A large screen with 102 x 64 pixels with selectable information to display
3. Navigate all functions through a touch of your thumb. The TS-300 series is
designed for one-handed operation.
4. Equipped with 2 temperature sensors with 1 for measuring the specimen
temperature and the other for the environmental temperature as well as
5. A patented hand-grip helps minimizing incorrect measuring angle and
ensuring the right force is applied.
A sleek appearance
The TS-300 series measures 143 L x 57 W x 41 D mm and weighs only as little
as 341 grams.
The Slightly tilted top section eliminates any light reflection from the screen
making it a comfortable reading angle. The structure importance is not
compromised because of its sleek design, the entre TS-300 series housing is
made of aluminum alloy which is meant to provide light weight and robustness.
TS-300 series Display
On the TS-300 series display, not only you get a view of the hardness value,
additional information such as the environmental temperature/humidity
specimen temperature, date/time, No. of measurements are all at a glance.
Another breakthrough is that all previous measurements are viewable directly
on the display and transferrable by USB
Navigate through your thumb
The TS-300 series is designed to provide great usability. Simply with a touch of
your thumb, you can navigate through all functions on the screen while your
hand has a firm grip on the lower section of the device. It is a truly one-handed
Innovative feature on TS-300 series
Both rubber and plastic are prone to change their properties due to the
temperature change. To help you better understand how temperature could
influence the hardness of your specimen, the TS-300 series is equipped with
two thermal couples for delivering information of your specimen temperature
and the environmental temperature
Minimizing user error
One of the most common mistakes to make when a measuring is taken place
is the angle of approach. The TS-300 series has a large hand grip to assist the
user to approach the specimen perpendicularly. The special mechanism inside
the hand grip delivers an exact amount of load (Shore A = 1kg / Shore D = 5 kg)
required as when the presser foot gets into a full contact with the specimen
