Optical Inverted Metallurgical Microscope / Portable Metallurgical Microscope

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Model Number: MR-2000/2000B
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 1pc/carton box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/month
Detail Information
Name: Metallographic Specimen Preparation Type: Portable Metallurgical Microscope
OEM/ODM: Support Size: Customized
High Light:

metallurgical sample preparation


inverted metallurgical microscope

Product Description

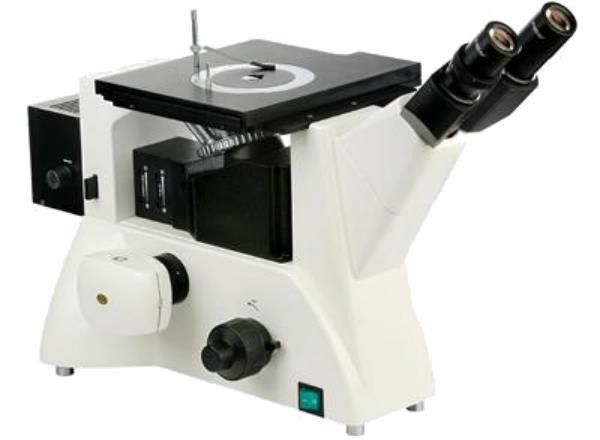

MR-2000/2000B Inverted metallurgical microscope

Metallurgical microscope price, china supplier, high quality inverted metallographic microscope


Features and Applications:

1. Equipped with excellent UIS optical system and modularization function design.Users can update system conveniently to achieve polarization and dark field observation.
2. Compact and steady main frame body to resist shock and vibration
3. Ideal ergonomic design, easy operation and wider space.
4. Suitable for research in metallography, mineralogy, precision engineering, etc. It’s an ideal optical instrument for micro observation in metallographic structure and surface morphology.



Eyepiece 10X wide field plan eyepiece and field of view number is Φ22mm, the eyepiece interface is Ф30mm
Infinity plan achromatic objectives MR-2000 (Equipped bright field objective) PL L10X/0.25 working distance:20.2 mm
PL L20X/0.40 working distance:8.80 mm
PL L50X/0.70 working distance:3.68 mm
PL L100X/0.85(dry) working distance:0.40 mm
MR-2000B(Equipped with dark / bright field objective) PL L5X/0.12 working distance:9.70 mm
PL L10X/0.25 working distance:9.30 mm
PL L20X/0.40 working distance:7.23mm
PL L50X/0.70 working distance:2.50 mm
Eyepiece tube Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm
Focusing system Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
Nosepiece Quintuple (Backward ball bearing inner locating)
Stage Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination system MR-2000 6V30W halogen and brightness enable control.
MR-2000B 12V50W halogen and brightness enable control.
Integrated field diaphragm , aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters
