Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a

Basic Information
Place of Origin: China
Brand Name: TMTECK
Certification: CE、ISO9001
Model Number: TFD320PLUS
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 30PCS/Two weeks
Detail Information
Measuring Range(mm): 2.5 ~ 10000 Zero(μs): 0.0 ~ 99.99
Port Type: BNC Frequency Range(MHz): 0.5 ~ 20
H×W×D(mm): 210×156×40
High Light:

phased array flaw detector

,

ut flaw detector


Product Description

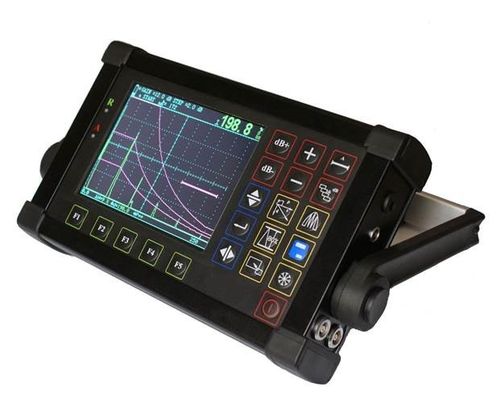

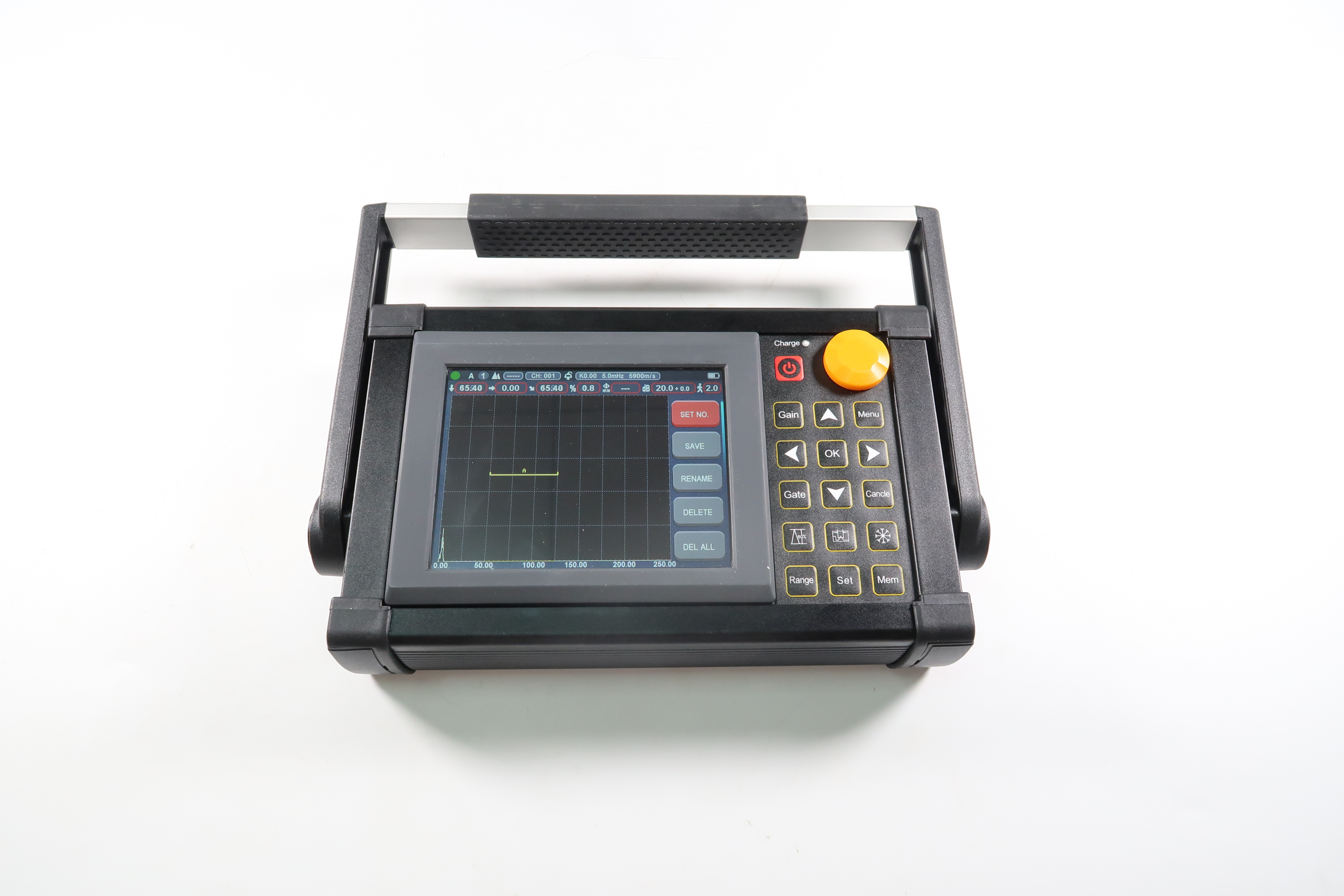

TFD320PLUS ULTRASONIC FLAW DETECTOR DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector

DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD320PLUS for Gate and DAC alarm& 5 MINUTES VIDEO


★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG, AWS.
★ Pulse Repeatition Frequency: 20-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 25M perfectly .
★ High speed real-time flaw detection video recording. Unlimited USB data storage.
★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.





Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a 0Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a 1Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a 2Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a 3Tfd320PLUS Ultrasonic Flaw Detector / Like Olympus Flaw Detector Dac Avg B Scan Dual 4a 4

Specifications
Range:0-10000 mm ,at steel velocity
Material Velocity:100~20000 m/s
Pulse Repetition Frequency:20-2000Hz
Dynamic range:≥38dB
Linearity: Horizontal: +/-0.2%, Vertical: 2.0%, Amplifier Accuracy +/-1 dB.
Resolving Power:>40dB (5P14)
Sensitivity Leavings:>66dB
Reject (suppression): 0 to 80% full screen height
500 independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 1000 A graph
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface
Gate Monitors: Two independent gates controllable over entire sweep range
Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
H×W×D(mm):240×150×50 (mm)
Weight :1.4kg
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass ): 0.2 to 25 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
Transducer Connections: LEMO 01
Functions

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connecting U-Disk,the unit can get unlimited memory.
Automated make video of test process and play; use upan,the length of video is unlimited.(Option)
Color B scan.( Option )
There are 15 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site.(Option)
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.

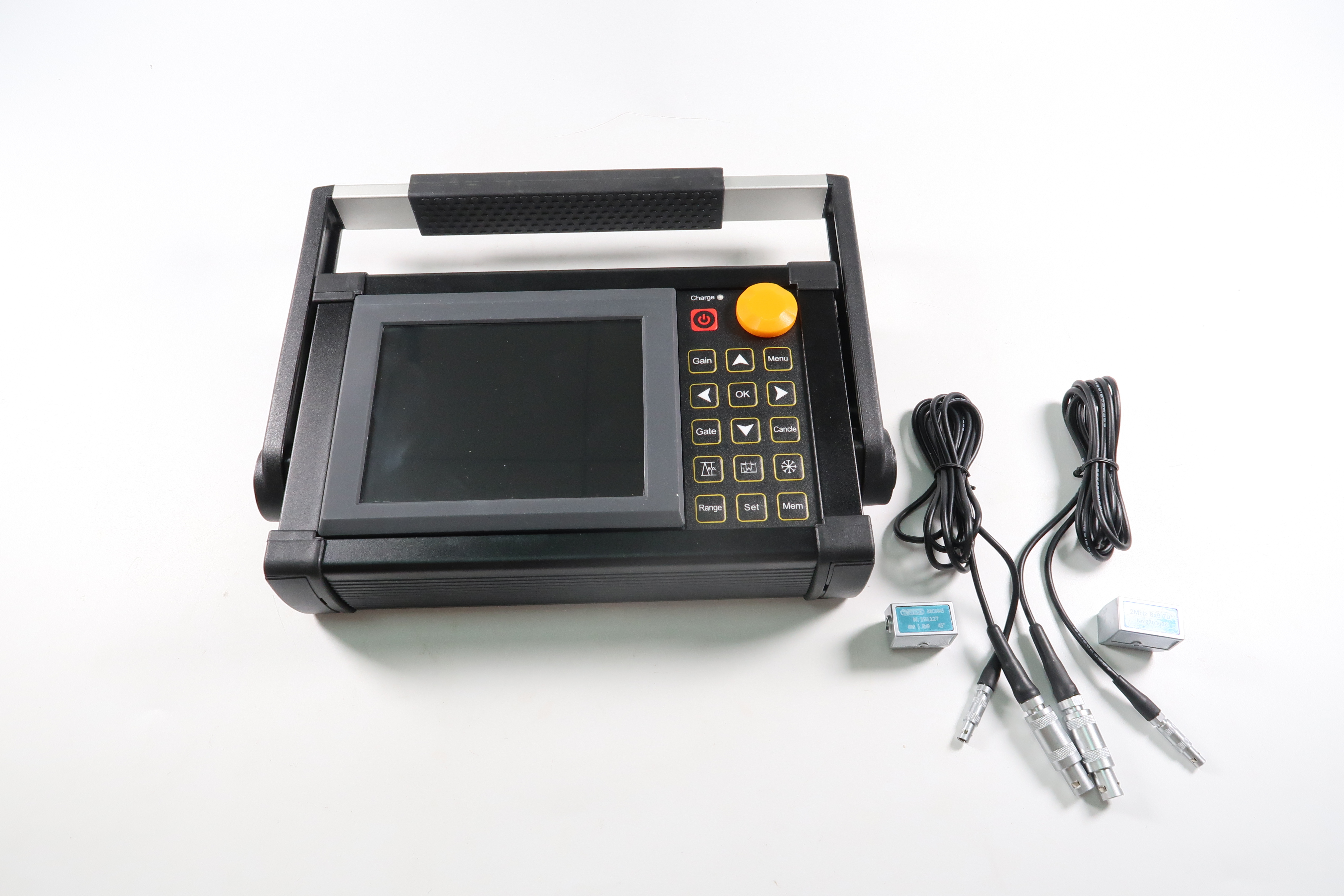

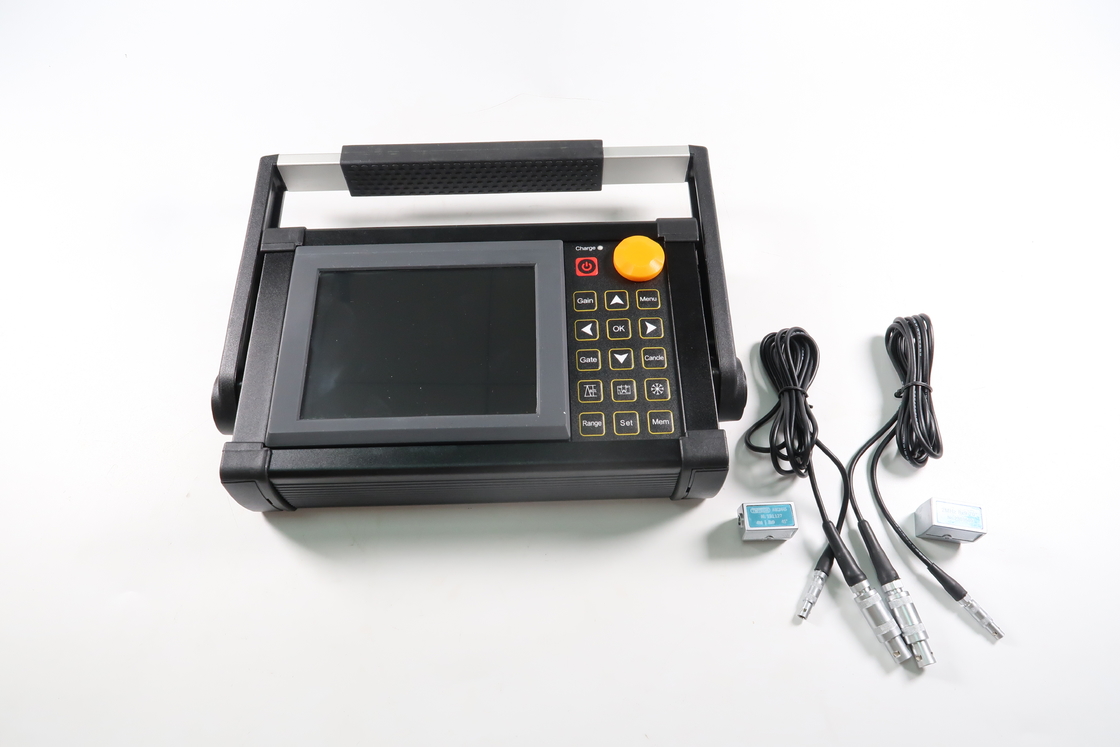

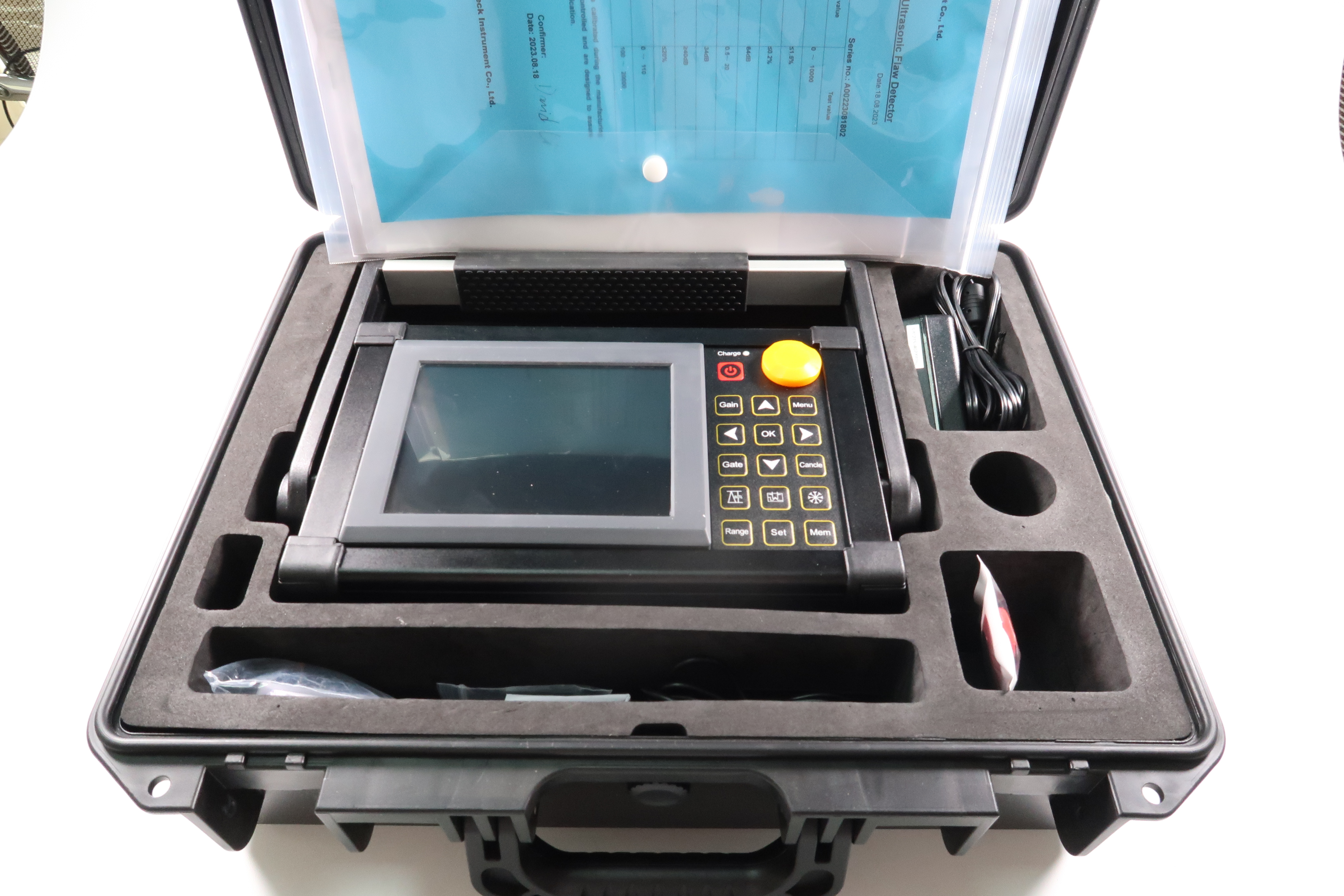

Base Instrument Package
1. Portable Ultrasonic Flaw Detector
2. Straight Beam Transducer (2.5 MHz, Φ20)
3. Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
4. Interconnect Cable for the transducer (Q9-C9 and C9- C5)
5. Rechargeable Li-Ion Battery Package, 8 amp hour
6. Power supply/charger unit
7. Operating Manual in English
