| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Model Number: | TMD-101 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/Two weeks |
| Warranty: | 2 Years | Operating Frequency: | 60KHz，240KHz |
|---|---|---|---|
| Color: | Red, Black | Size: | 180*80*30 Mm |
| Relative Humidity: | 0～95% | Weight: | 260g |
| Display Screen: | 240X320 Pixels TFT-LCD | ||
| High Light: | eddy current inspection equipment,electrical conductivity meter |
||

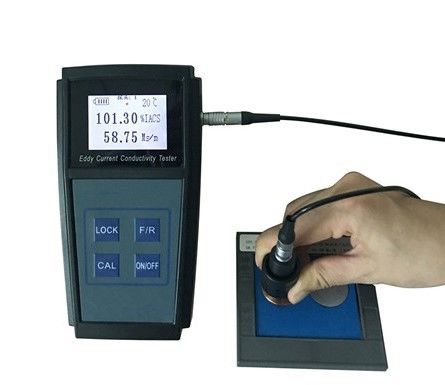

TMD-101 Eddy Current Electrical Conductivity Meter
TMD-101 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate,quality control,material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
Features
★ The meter uses 60 KHz (aviation industry standard) to inspirit.
★ The testing data can be read in two kinds of unit: %IACS and MS/m.
★ Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
★ It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
★ The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.
★ It can hold measurement data.
Applications
★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.
★ Test the conductivity aluminum when it has not been oxidized.
★ Test the purity grade of materials.
★ Test materials resistivity.
★ Material Thermal Performance analysis.
Technical parameters
| NAME | CONTENT | |
| Measurement technology | Eddy current | |
| Operating frequency | 60KHz ,120 KHz | |
| Display screen | Monochrome | |
| L*B*H | 180*75*30 mm | |
| Instrument case | Anti-intense impact,water-proofing polyester. | |
| Weight | 290g | |
| Power supply | High capacity, high performance lithium polymer battery | |
| Measuring range | 6.9%IACS—110%IACS(4.0 MS/m -64MS/m) | |
| Distinguishing rate | 0.1% IACS | |
| Measuring accuracy |
0°C to 50°C 0~23%IACS :±0.1%IACS 23%IACS~110%IACS :±0.3%IACS |
|
| Temperature compensation | Automatic compensation to the value of 20 ℃. | |
| Normal work environment | Relative humidity | 0～95% |
| Operating temperature | 0℃～50℃ | |
| Language | English | |
| Fitting | Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter. | |
| Probe |
Diameter:12.7mm (Applicable to minimum measuring area diameter at 60KHz is10mm.) |
|
Note: The conductivity measurements automatically rectified to the value at 20℃.
