Magnetic Coating Thickness Gauge

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: F5
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton 30*15*24cm 2.5kg
Delivery Time: 3-5 work day
Payment Terms: T/T
Supply Ability: 50PCS/Two weeks
Detail Information
High Light:

F5 Coating Thickness Gauge


Magnetic Coating Thickness Gauge

Product Description

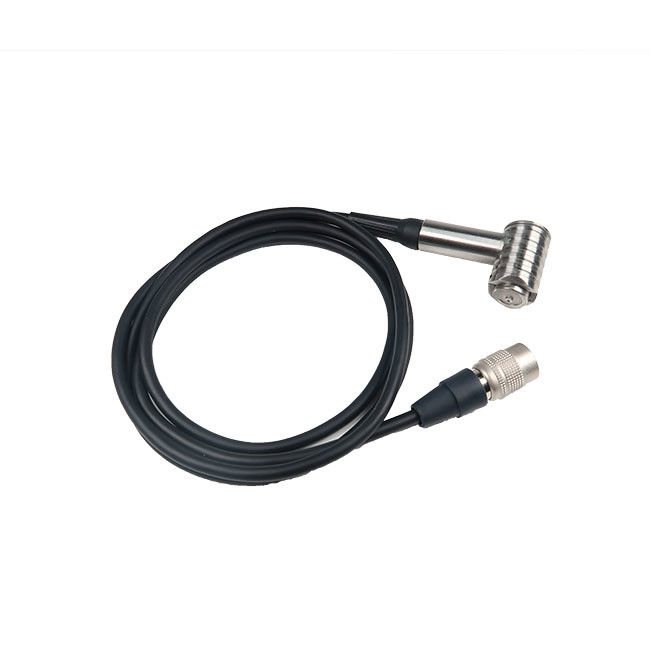

F5 Coating thickness probe for COATING THICKNESS GAUGE TM510FNPLUS

Information for all model of F type probe:

Probe F400 F5 F1 F1/90° F10
Measuring Principle   Magnetic method
Measuring range(mm) 0~400um 0~1250 um 0~10000
Min resolution(mm) 0.1 0.1 10
Tolerance One-point calibration (mm) ±(2%H+0.7) ±(2%H+1) ±(2%H+10)
Two-point calibration (mm) ±(1%H+0.7) ±((1%H+1) ±(1%H+10)
Minimum radius of curvature (convex) (mm) 1 1.5 1.5 flat 10
Minimum measuring area(mm) F3   F7 F7 F40
Minimum thickness of base material(mm) 0.2   0.5 0.5 2


If you have interest in other model ,contact us freely. we will quote our best price
