| Place of Origin: | China |
|---|---|
| Brand Name: | TMTeck |
| Certification: | CE |
| Model Number: | TMM-8000 Series |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | 1pc/carton box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100pcs/month |
| Model: | TMM-8000 Series | Optical System: | Infinite Optical System |
|---|---|---|---|
| Eyepiece: | Extra Wide Field Eyepiece EW10X/22 | Maximum Sample Height: | 30mm Or 50mm |
| Filter: | ND25、ND6 | Name: | Metallurgical Microscope |
| High Light: | tmteck Optical Metallurgical Microscope,TMM-8000,30mm Optical Metallurgical Microscope |
||
Product Description

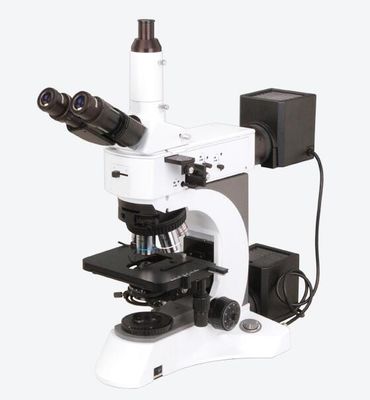

Laboratory metallurgical microscope, including bright field,dark field and polarization observation system.
Powerful transmitted and reflected system with Kohler illumination.
Ideal instrument for industry inspection and science research.
Product introduction
| TMM-8000NRF Technical specifications | ||
| Optical System | Infinite optical system | |
| Eyepiece | Extra wide field eyepiece EW10X/22 | |
| Infinite Plan Achromatic Objective | 5X/0.12/∞/-(BF) | WD 15.5mm |
| 10X/0.25/∞/-(BF/DF) | WD 10.0mm | |
| 20X/0.4/∞/0(BF/DF) | WD 4.30mm | |
| 50X/0.75/∞/0(BF) | WD 0.32mm | |
| 100X/0.8/∞/0(BF) | WD 2mm | |
| 2.5X/0.08/∞/-(BF) | WD 11.7mm | |
| 2.5X/0.08/∞/-(BF) | WD 10.7mm | |
| 5X/0.12/∞/-(BF/DF) | WD 12mm | |
| 40X/0.6/∞/0(BF/DF) | WD 2.90mm | |
| 50X/0.75/∞/0(BF/DF) | WD 0.32mm | |
| 100X/0.8/∞/0(BF/DF) | WD 2mm | |
| Maximum Sample Height:50mm | ||
| Viewing Head | Siedentopf trinocular viewing head, inclined at 30°, interpupillary 48mm-75mm | |
| Incident Light | 24V/100W Halogen light, lightness adjustable | |
| Kohler illumination and aspherical condenser | ||
| Polarizer and analyzer | ||
| An integrate device foe polarizer and analyzer | ||
| Blue, Green, Yellow and Ground glass | ||
| Filter | ND25,ND6 | |
| Focusing | Coaxial coarse and fine adjustment, fine division 1μm, moving range 30mm | |
| Nosepiece | Backward quintuple nosepiece | |
| Stage | Non-porous double layer mechanical stage 186X138mm/74mmX50mm | |
| Glass specimen preparation plate | ||
| Specimen Presser | ||
| Photo Attachment | ||
| Video Attachmen | C Mount 1X, 0.5X | |
| NMM-800TRF Technical specifications | ||
| Optical System | Infinite optical system | |
| Eyepiece | Extra wide field eyepiece EW10X/22 | |
| Infinite Plan Achromatic Objective |
5X/0.12/∞/-(BF) | WD 15.5mm |
| 10X/0.25/∞/-(BF/DF) | WD 10.0mm | |
| 20X/0.4/∞/0(BF/DF) | WD 4.30mm | |
| 50X/0.75/∞/0(BF) | WD 0.32mm | |
| 100X/0.8/∞/0(BF) | WD 2mm | |
| 40X/0.65/∞/0.17 | WD 0.54mm | |
| 100X/1.25/∞/0.17 | WD 0.13mm | |
| 2.5X/0.08/∞/-(BF) | WD 11.7mm | |
| 2.5X/0.08/∞/-(BF) | WD 10.7mm | |
| 5X/0.12/∞/-(BF/DF) | WD 12mm | |
| 40X/0.6/∞/0(BF/DF) | WD 2.90mm | |
| 50X/0.75/∞/0(BF/DF) | WD 0.32mm | |
| 100X/0.8/∞/0(BF/DF) | WD 2mm | |
| Maximum Sample Height | 30mm | |
| Viewing Head | Siedentopf trinocular viewing head, inclined at 30°, interpupillary 48mm-75mm | |
| Incident Light | 24V/100W Halogen light, lightness adjustable | |
| Kohler illumination and aspherical condenser | ||
| Polarizer and analyzer | ||
| An integrate device foe polarizer and analyzer | ||
| Blue, Green, Yellow and Ground glass | ||
| Transmitted Light | Swing-out condenser NA0.9/0.25 | |
| Halogen light and aspherical condenser | ||
| Blue filter | ||
| Filter | ND25,ND6 | |
| Focusing | Coaxial coarse and fine adjustment, fine division 1μm, moving range 30mm | |
| Nosepiece | Backward quintuple nosepiece | |
| Stage | Double layer mechanical stage 186X138mm/74mmX50mm | |
| Glass specimen preparation plate | ||
| Specimen preparation plate | ||
| Slide glass | ||
| Specimen Presser | ||
| Photo Attachment | ||
| Video Attachment | C Mount 1X, 0.5X | |
