Warranty: | 2 Years | Working Freq.: | 60KHz, Sine Wave |
---|---|---|---|
Lift-off Effect: | Probe Compensation 0.5mm | Size: | 220mmx95mmx55mm |
Weight: | 0.5kg (including Batteries) | ||
Highlight: | 60KHz eddy current conductivity meter,TMTeck digital conductivity meter,60K eddy current conductivity meter |

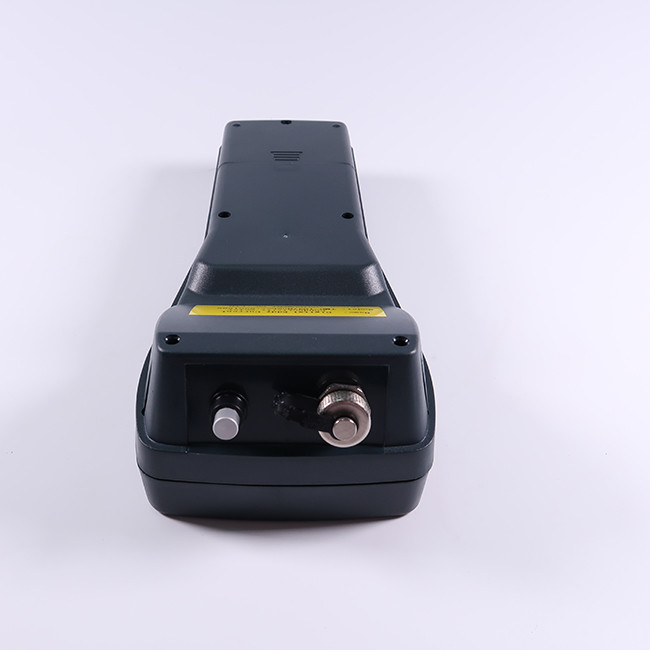

The TMD-103 eddy conductivity meter is the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, etc.
Model Items |
TMD-103 |
Working Freq. | 60KHz, sine wave |
Measurement range for conductivity | 0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m,or resistivity 0.015388 to3.33333Ω•mm²/m |
Resolving power | 0.01%IACS(when <51%IACS); 0.1%IACS(51%IACS to 112%IACS ) |
Measuring precision | ±0.5% reading |
Lift-off effect | Probe compensation 0.5mm |
Temp. measurement |
0℃ to +50℃(precision 0.5℃) |
Function of auto compensation | Measured result of conductivity, adjusting to value at temp. 20℃ automatically; Manual input temperature compensation mode |
Probes | The probe of diameter ¢14mm, working freq. 60KHz.The probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligently . |
Normal working environment | Temp. 0℃ to +50℃; relative humidity, 0 to 95% |
Display | Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously. |
Power supply | Equipped with a lithium ion battery of 2200mA/h |
Reading memory | Storage for16000 groups of measured data files. |
Communication with PC machine | RS 232 interface |
Weight of host machine | 0.5kg (including batteries) |
Dimension of host machine | 220mmx95mmx55mm |
Shell of instrument | Engineering plastic, high impact-resistance, waterproof shell for this instrument |
Package and protection | High impact-resistance, waterproof, portable box made of aluminium alloy; inside of it there are instrument, probes, communication cable, operation manual, conductivity blocks, recharger, instrument stand, U- disk (or optical disk). |
Accessories | 3 pieces of standard conductivity blocks,. You can purchase more blocks if you wish. |
4.Inventory
Detailed list | Number |
Instrument host | 1 |
Standard block (with block base) | 3 |
The probe( 60KHz) | 1 |
Instrument bracket | 1 |
Hexagon wrench | 1 |
Communication connecting cable | 1 |
Lithium ion battery (in the machine) | 1 |
Lithium ion battery charger | 1 |
An instruction manual | 1 |
Random U disk (or CD) | 1 |
Certificate | 2 |
File pocket | 1 |
Aluminum alloy instrument carrying case | 1 |
