60KHz Sine Wave Digital Conductivity Meter

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TMD-105
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 10PCS/Two weeks
Detail Information
Warranty: 2 Years Working Freq.: 60KHz, Sine Wave
Lift-off Effect: Probe Compensation 0.5mm Size: 220mmx95mmx55mm
Weight: 0.5kg (including Batteries)
High Light:

60KHz digital conductivity meter

,

sine wave digital conductivity meter

,

digital conductivity meter 60KHz


Product Description

The eddy conductivity meter of TMD-105 is the upgrading product of Sigma 2008A,Which have the leading technology performance, can totally instead of the similar products overseas. TMD-105 adding a new Frequency testing of 500KHz, This can accurate measure the thinner test pieces. The Application range is more extensive after adding continuity measurement and camber measurement mode. In the meanwhile adding lots of temperature compensation mode can make sure measuring the temperature accurately under difference temperature conditions.

1.APPLICABILITY AND FEATURES

TMD-105 is the product of digital conductivity meter designed with eddy phase. These products commonly used in industries of metallurgy, machinery, electric power, aviation and aerospace, nuke, military, etc.
Characteristics:

  • Beautiful appearance, easy to carry about and grasp, simple and convenient to use
  • Big screen, big character; displaying measured result, working frequency, temperature, temperature coefficient etc. simultaneously.
  • Two kinds of switchable frequencies for Sigma 2008B, 60KHz for aviation industry standard, 500KHz for detecting sheet metal.
  • Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
  • Up to 500μm lift-off compensation design, for maintaining the measuring accuracy when painted, coated or dusty on surface.
  • The variety of temperature compensation mode design, combined with temperature coefficient, instruments can ensure the measurement accuracy under different testing temperature.
  • With interchangeable probes, the user is able to change probes provided by our company without matching.
  • Built-in date memory, can record 16000 sets of test date and important test parameters, you can connect the computer to generate a complete report.
  • Two units (MS/m or %IACS) convenient choice, but also can directly switch resistivity in the measurement of interface.
  • Three kinds of language selection: Simplified Chinese, Japanese and English.

2.TYPICAL APPLICATIONS

  • Conductivity and resistivity measurement of
  • non-ferromagnetic material
  • Determining extent of thermal treatment
  • Checking thermal damage, material fatigue and crack
  • Determining metal purity
  • Monitoring of metal homogeneity
  • Metal classificationMonitoring of strength and hardnessDetecting the density of powder metallurgy parts

3.MEAURING SYSTEM INSTRUCTIONS




Model
Items

TMD-105
Working Freq.60KHz and 500KHz, sine wave
Measurement range for conductivity

0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m or
resistivity 0.01538 Ω·mm²/m到3.33333Ω·mm²/m

Resolution 0.1 %~0.001 %IACS

Measuring

precision

±0.5% reading
Lift-off compensation0.5mm of φ14 probe; 0.2mm of φ8 probe;
Temp. Measuring range0℃~+80℃(Temp. resolution0.1℃,Temp. Measuring precision0.5℃)

Temperature

Compensation Mode

The pseudo temperature compensation mode when conductivity is automatically adjusted to 20℃ ; Automatic temperature compensation mode and Manual input temperature compensation mode
ProbesB type machine with diameter 14 mm working frequency of 60 KHz and diameter 8mm working frequency of 500 KHz of a probe; The probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligently .
Working environmentTemp. 0℃~+50℃,Related humidity 0~85%(Non-condensing)
DisplayLarge screen LCD, with back-light designed, can display multiple items of important parameter simultaneously
Power supplyProvided lithium ion battery of 3.7V,2200mA/h, continuous working about 12hours
Temp. ProbeHand-hold surface temperature sensor
Reading memorySave 16000 sets of measuring date
PC Communication RS 232 interface, Baud rate: 2400bps; Date rate:8
Host weight0.5KG(Including battery)
Host size 220 mm×95 mm×55 mm
Shell Plastic shell
Package and protectionHigh impact-resistance, portable box made of aluminum alloy, and instrument, probe, communication cable, operation manual, conductivity block, charger, instrument bracket, U-disk (or optical disk).
Accessories3 pieces of standard conductivity blocks, can provide more blocks for customer choose.

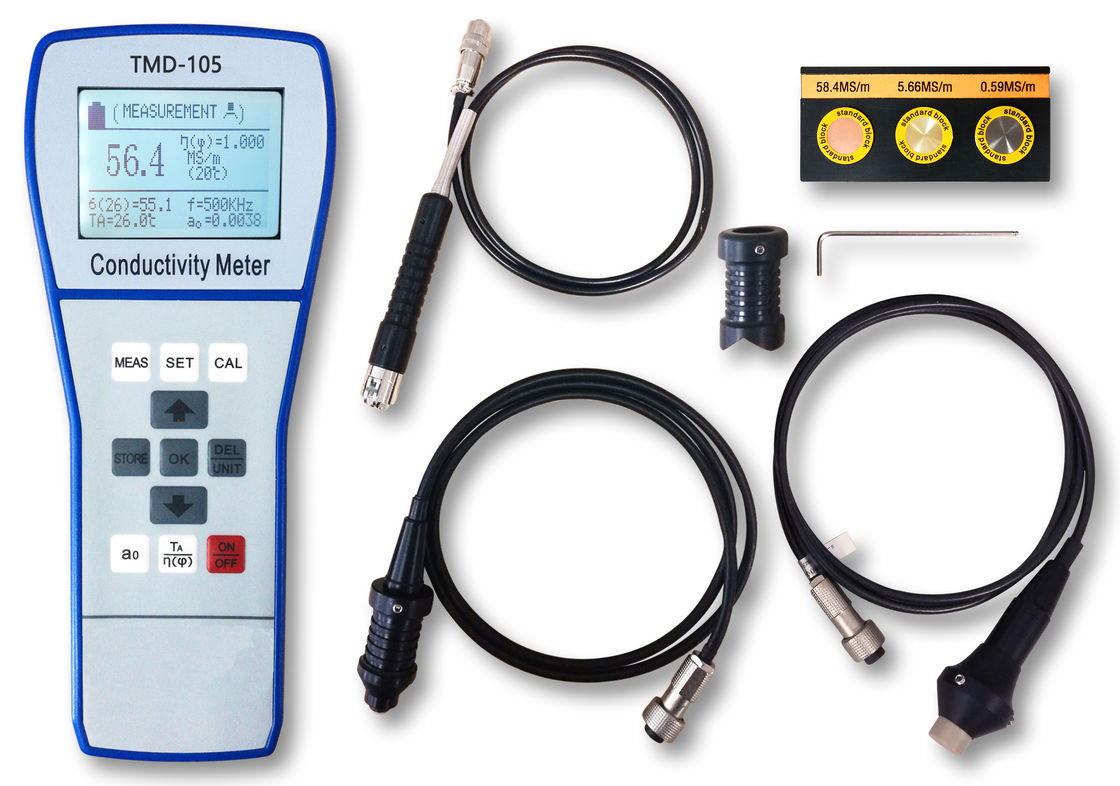

4.Inventory


Detailed listNumber
Instrument host1
Standard block (with block base)3
The probe( 60KHz)1
The probe( 500KHz)1
External temperature sensor1
Main engine protective cover1
Probe curved grip1
Instrument bracket1
Hexagon wrench1
Communication connecting cable1
Lithium ion battery (in the machine)1
Lithium ion battery charger1
An instruction manual1
Random U disk (or CD)1
Certificate2
File pocket1
Aluminum alloy instrument carrying case1
