0.5mm Sine Wave 60 KHz Digital Conductometer

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TMD-106
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 10PCS/Two weeks
Detail Information
Warranty: 2 Years Working Freq.: 60KHz, Sine Wave
Lift-off Effect: Probe Compensation 0.5mm Size: 220mmx95mmx55mm
Weight: 0.5kg (including Batteries)
High Light:

60 KHz digital conductometer


sine wave digital conductometer


0.5mm Digital Conductometer

Product Description

The eddy conductivity meter of TMD-106.The application range is more extensive after adding continuity measurement and camber measurement mode. In the meanwhile adding lots of temperature compensation mode can make sure measuring the temperature accurately under difference temperature conditions.

1.Applicability and features

TMD-106 is the product of digital conductivity meter designed with eddy phase. These products commonly used in industries of metallurgy, machinery, electric power, aviation and aerospace, nuke, military, etc.


  • Beautiful appearance, easy to carry about and grasp, simple and convenient to use
  • Big screen, big character; displaying measured result, working frequency, temperature, temperature coefficient etc. simultaneously.
  • Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
  • Up to 500μm lift-off compensation design, for maintaining the measuring accuracy when painted, coated or dusty on surface.
  • The variety of temperature compensation mode design, combined with temperature coefficient, instruments can ensure the measurement accuracy under different testing temperature.
  • With interchangeable probes, the user is able to change probes provided by our company without matching.
  • Built-in date memory, can record 16000 sets of test date and important test parameters, you can connect the computer to generate a complete report.
  • Two units (MS/m or %IACS) convenient choice, but also can directly switch resistivity in the measurement of interface.
  • Three kinds of language selection: Simplified Chinese, Japanese and English.

2.Typical application

  • Conductivity and resistivity measurement of
  • non-ferromagnetic material
  • Determining extent of thermal treatment
  • Checking thermal damage, material fatigue and crack
  • Determining metal purity
  • Monitoring of metal homogeneity
  • Metal classificationMonitoring of strength and hardnessDetecting the density of powder metallurgy parts

3.Measuring system instructions



Working Freq. 60KHz sine wave
Measurement range for conductivity

0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m or

resistivity 0.01538 Ω·mm²/m到3.33333Ω·mm²/m

Resolution 0.1 %~0.001 %IACS



±0.5% reading
Lift-off compensation 0.5mm of φ14 probe;
Temp. Measuring range 0℃~+80℃(Temp. resolution0.1℃,Temp. Measuring precision0.5℃)


Compensation Mode

the pseudo temperature compensation mode when conductivity is automatically adjusted to 20℃ ;Automatic temperature compensation mode and Manual input temperature compensation mode
Probes B1 type machine with a diameter of 14 mm working frequency of 60 KHz of a probe. The probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligently .
Working environment Temp. 0℃~+50℃,Related humidity 0~85%(Non-condensing)
Display Large screen LCD, with back-light designed, can display multiple items of important parameter simultaneously
Power supply Provided lithium ion battery of 3.7V,2200mA/h, continuous working about 12hours
Temp. Probe Hand-hold surface temperature sensor
Reading memory Save 16000 sets of measuring date
PC Communication RS 232 interface, Baud rate: 2400bps; Date rate:8
Host weight 0.5KG(Including battery)
Host size 220 mm×95 mm×55 mm
Shell Plastic shell

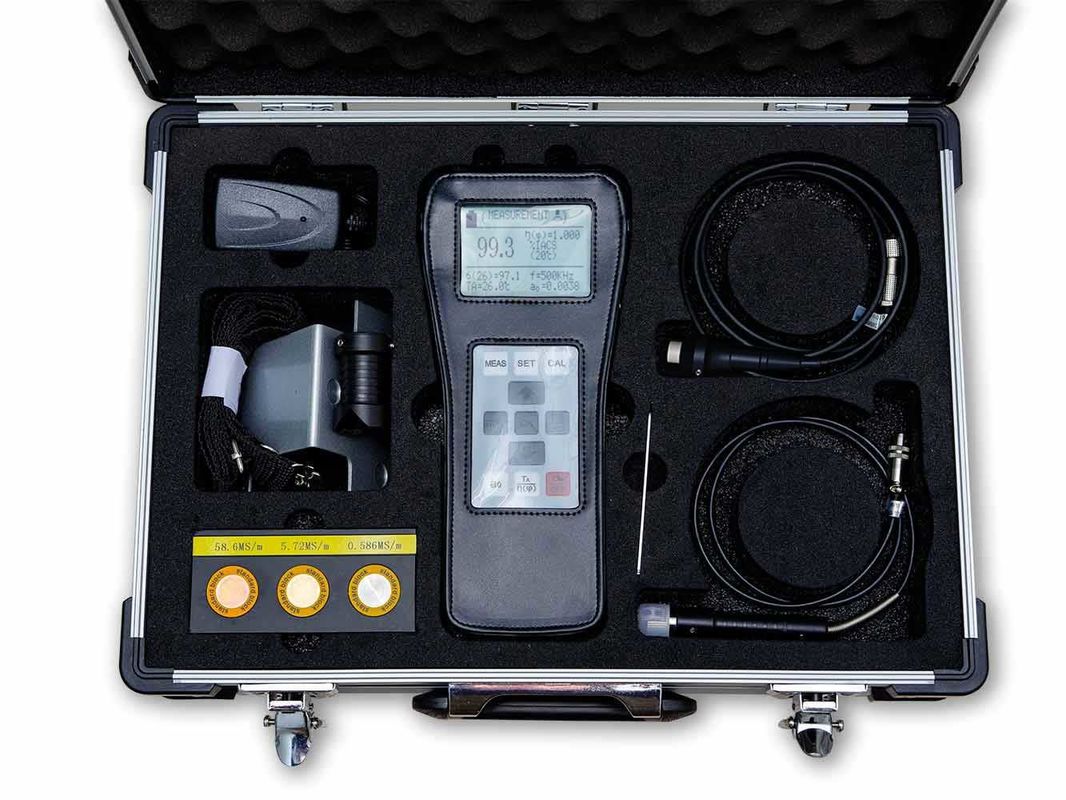

Package and protection High impact-resistance, portable box made of aluminum alloy, and instrument, probe, communication cable, operation manual, conductivity block, charger, instrument bracket, U-disk (or optical disk).
Accessories 3 pieces of standard conductivity blocks, can provide more blocks for customer choose.



















































Detailed list




Instrument host 1
Standard block (with block base) 3
The probe( 60KHz) 1
External temperature sensor 1
Main engine protective cover 1
Probe curved grip 1
Instrument bracket 1
Hexagon wrench 1
Communication connecting cable 1
Lithium ion battery (in the machine) 1
Lithium ion battery charger 1
An instruction manual 1
Random U disk (or CD) 1
Certificate 2
File pocket 1
Aluminum alloy instrument carrying case 1


0.5mm Sine Wave 60 KHz Digital Conductometer 0

0.5mm Sine Wave 60 KHz Digital Conductometer 1

0.5mm Sine Wave 60 KHz Digital Conductometer 2

0.5mm Sine Wave 60 KHz Digital Conductometer 3

0.5mm Sine Wave 60 KHz Digital Conductometer 4
