Measuring Range: | 0-1250µ With Standard Probe F1.N1 (10.000mm Max) | Probes Available: | 5 Probes Available For F (ferrous: On Steel/iron) And N (non-ferrous Metals) |
---|---|---|---|
Tolerance: | F1:±(1µ+3%H) N1.±(1.5µ+3% H) H: Actual Thickness Tested | Resolution: | Alphanumeric With 4 Large Digits |
Standards: | DIN, ISO, ASTM,BS | Min. Measuring Area: | F1:(standard Probe) |
Min. Curvature Radius: | Convex:3mm, Concave:50mm | ||
High Light: | 10000um digital coating thickness gauge,tmteck digital coating thickness gauge,CE magnetic coating thickness gauge |

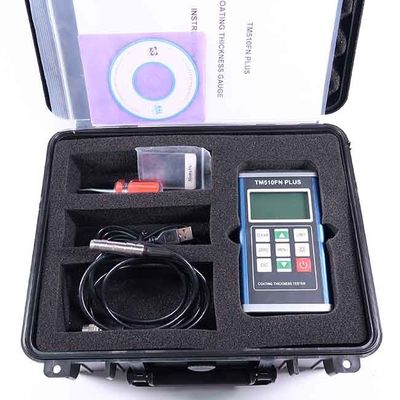

TM510FNplus Coating thickness gauge
● 2 Measuring modes: continuous/single
● 2 Shutdown modes: manual/automatic
●Wide measuring range with 5 probes available (next page)
●Direct testing mode and block statistics mode (APPL/BATCH)
●Can connect with printer to out of statistical values
●Dataview to connect with PC with USB 2.0 port
●500 datas can be stored
Main features
Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement;
Three calibration methods: one point calibration, two point calibration, the basic calibration;
Display resolution: 0.1 um (measuring range of less than 100 um)
1μ m (range greater than 100 u m)
Have five statistics, data storage 500
There are two working methods: direct ways and means of group
There are two measurements: continuous measurement and a single measurement
There are two shutdown: manual and automatic shutdown shutdown
Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis;
Deleted features: the gross error and error settings can be deleted;
Printing: Print Measurement measurement, statistics, gauges, histogram
A music tone in the operation carried out at any time tips
A power supply under-voltage direct function
An error function
And printers, computer communications (communications software operating environment for the Window operating system) connectivity.
Technical specifications:
Measuring range
|
0-1250µ with standard probe F1.N1 (10.000mm max) |
Probes available
|
5 probes available for F (ferrous: on steel/iron) and N (non-ferrous metals) |
Tolerance
|
F1:±(1µ+3%H) N1.±(1.5µ+3% H) H: actual thickness tested |
Resolution | Alphanumeric with 4 large digits |
Operation language | English |
Standards | DIN, ISO, ASTM,BS |
Min. measuring area | F1:(standard probe) |
Min. curvature radius | convex:3mm, concave:50mm |
Min. substrate thickness |
type F: 0.5mm, type N: 50mm |
Calibration | Zero and foil calibration |
Statistics
|
Number of measurements, mean, standard deviation, maximum and minimum of 3000readings |
Data memory | 500 measuring data |
Limits | Adjustable with acoustic alarm |
Interface | USB 2.0 |
Operating temperature | 0-40℃ |
power supply | AA size 1.5V |
Dimensions | 125*67*31mm (main unit) |
Weight | 345.g |
Standard delivery
Main unit | 1 |
Probe F1 or N1 | 1 |
Calibration foils | 5 |
Instruction manual | 1 |
Cetificate | 1 |
Warranty card | 1 |
Carrying case | 1 |
Communication cable | 1 |
PC software Dataview | 1 |
Optional accessories
5 probes for different applications
Calibration foils in various thickness
Type F probe :
Probe | F400 | F1 | F1/90° | F10 | |||
Measuring Principle | Magnetic method | ||||||
Measuring range(mm) | 0~400um | 0~1250 um | 0~10000 | ||||
Min resolution(mm) | 0.1 | 0.1 | 10 | ||||
Tolerance | One-point calibration (mm) | ±(2%H+0.7) | ±(2%H+1) | ±(2%H+10) | |||
Two-point calibration (mm) | ±(1%H+0.7) | ±((1%H+1) | ±(1%H+10) | ||||
Minimum radius of curvature (convex) (mm) | 1 | 1.5 | flat | 10 | |||
Minimum measuring area(mm) | F3 | F7 | F7 | F40 | |||
Minimum thickness of base material(mm) | 0.2 | 0.5 | 0.5 | 2 | |||
Type N probe :
Probe | N400 | N1 | CN02 | |
Measuring Principle | Eddy current method | |||
Measuring range (mm) | 0~400 | 0~1250 | 10~200 | |
Min resolution(mm) | 0.1 | 0.1 | 1 | |
Tolerance | One-point calibration (mm) | ±(2%H+0.7) | ±(2%H+1.5) | ±(2%H+1) |
Two-point calibration (mm) | ±(1%H+0.7) | ±(1%H+1.5) | -------- | |
Minimum radius of curvature (convex) (mm) | 1.5 | 3 | flat | |
Minimum measuring area(mm) | F4 | F5 | F7 | |
Minimum thickness of base material(mm) | 0.3 | 0.3 | 0 |
Note:H——Measured Value
