Product Name: | Personal Gamma X-ray Geiger | Brand: | TMTeck |
---|---|---|---|
Original: | China | Name: | Tmteck Counter Radiation Detector |
Highlight: | tmteck counter radiation detector,counter radiation detector tmteck,radiation geiger counter |

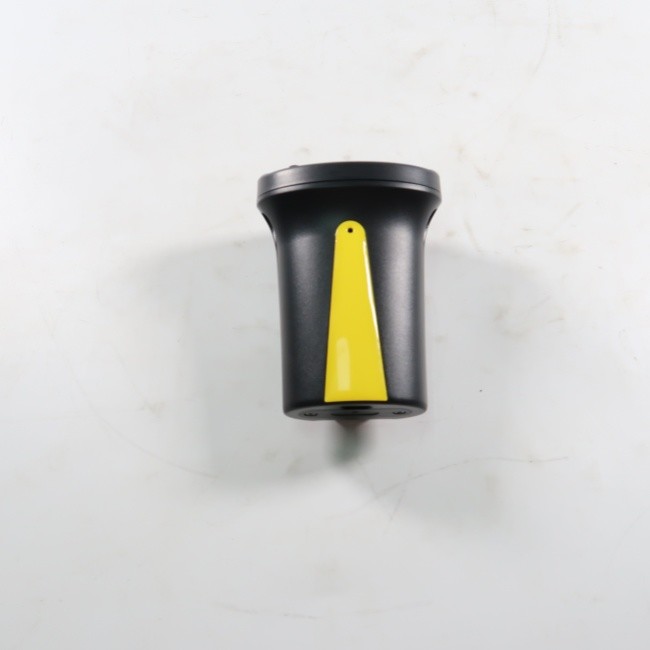

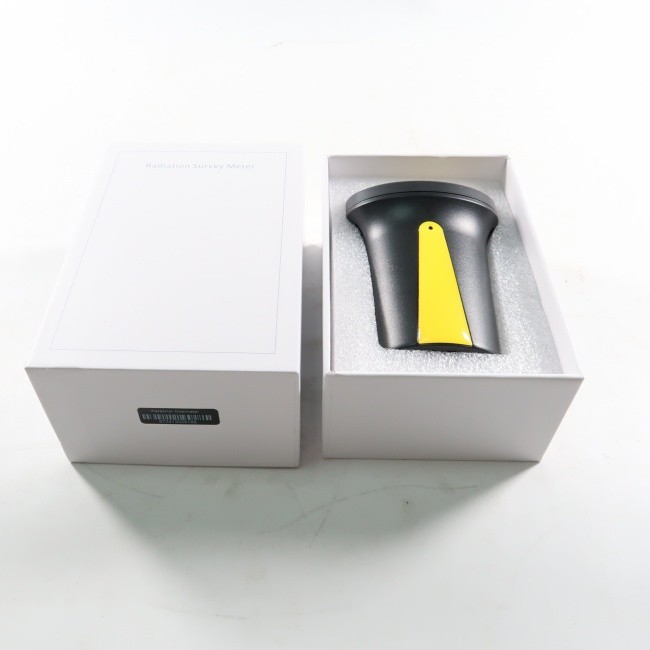

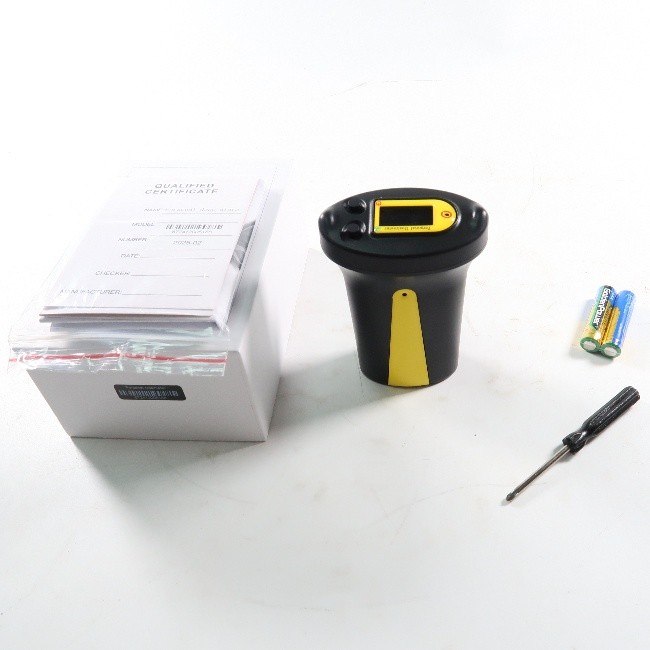

TMG1100 personal gamma x-ray geiger counter radiation detector Dose Alarm Device
Brief introduction
TMG1100 personal X-Y radiation alarm dosimeter is a small high-sensitivity personal radiation dose alarm. The instrument uses G-M counter tube as a detector, the reaction speed; and the use of strong single-chip technology, has a strong anti-interference ability. Mainly used to monitor the X-ray and γ-ray, in the measurement range, can be arbitrarily set alarm threshold, when the alarm threshold is reached, an alarm to alert the staff in time to pay attention to safety. Instrument main technical indicators in line with national standards and international standards, is currently the same type of equipment in the strong, small size, low power consumption pocket-sized
Application
TMG1100 personal X-γ radiation alarm dosimeter is widely used in radiation processing enterprises, health and epidemic prevention, radiation therapy, nuclear laboratories, nuclear power plants, import and export commodity inspection, building materials, petrochemicals, geological survey, scrap steel, industrial nondestructive flaw detection ionization Radiation environment, personal radiation dose monitoring and protection.
Features
1, Using energy compensation GM tube, indicating the value of accurate, fast response, in a leading position;
2, High-end OLED display, English interface, the dose rate LED strobe instructions, simple, clear number;
3, Dose rate, cumulative dose, blocking fault alarm function, sound, light, vibration alarm any combination;
4, The alarm threshold is set arbitrarily within the range;
5, The alarm data is automatically stored for easy query;
6, Optional intelligent wireless networking, to achieve personal dose centralized management.
Technical Parameters
The detector:Energy compensated GM counter tube
Measurement range: The dose rate:0.10uSv/h to 10mSv/h
The dose:0uSv/h to 10Sv
Sensitivity:More than 1.5cps/uSv/h (relative to 137Cs )
Energy response:48keV to 3.0MeV
Relative error:More than 5% (when at 1mSv/h)
Power supply:2 AAA batteries
Power consumption:More than 24mW
Temperature property:Minus 10 ℃ to plus 50 ℃,less than or equal to 10 %
Dimensions:95*70*40(mm)
Weight:100g(including batteries)
Notice
1. When not in use, turn off the device, if not in use for a long time, remove the batteries.
2. Device appears low battery reminder, please replace the batteries in order to ensure the accuracy of the measured values.
