Tmteck Made Universal Encoder Mini-Wheel Encoder Compatible With Olympus Ndt Standard Pa Wedges

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Minimum Order Quantity: 1pc
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,Paypal
Detail Information
Warranty: 6 Months Application: Industrial Detection
Usage: Flaw Detection Power: Electronic
Name: TMTECK UNIVERSAL ENCODER
Highlight:

tmteck mini wheel encoder olympus

,

ndt mini wheel encoder olympus

,

tmteck olympus mini wheel encoder


Product Description

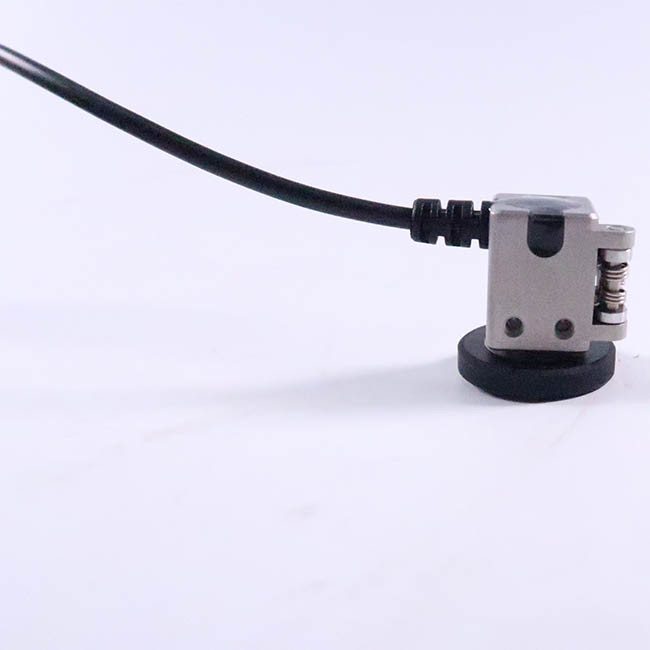

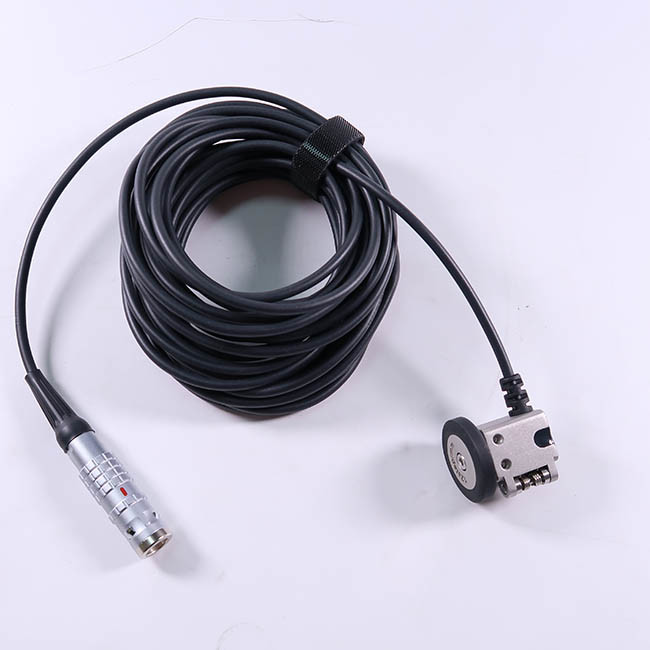

TMTECK Made UNIVERSAL ENCODER Mini-Wheel Encoder suit work for OLYMPUS NDT standard PA wedges



FEATURES

Waterproof

Small dimensions

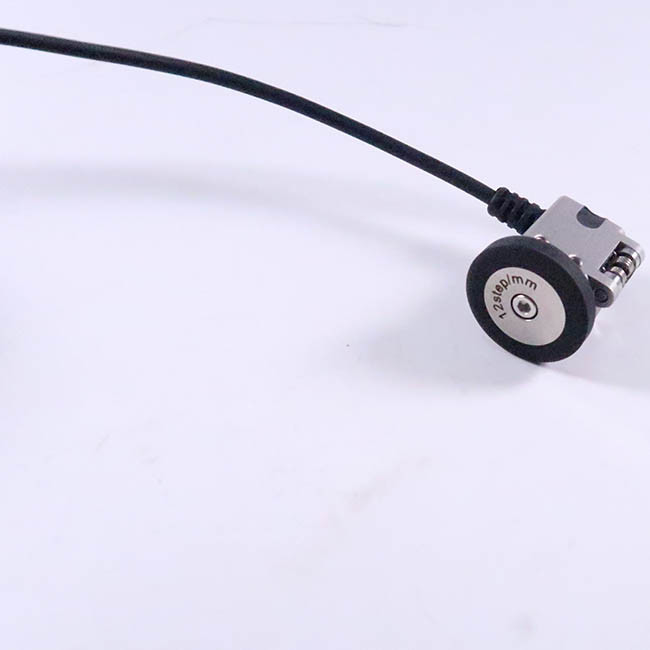

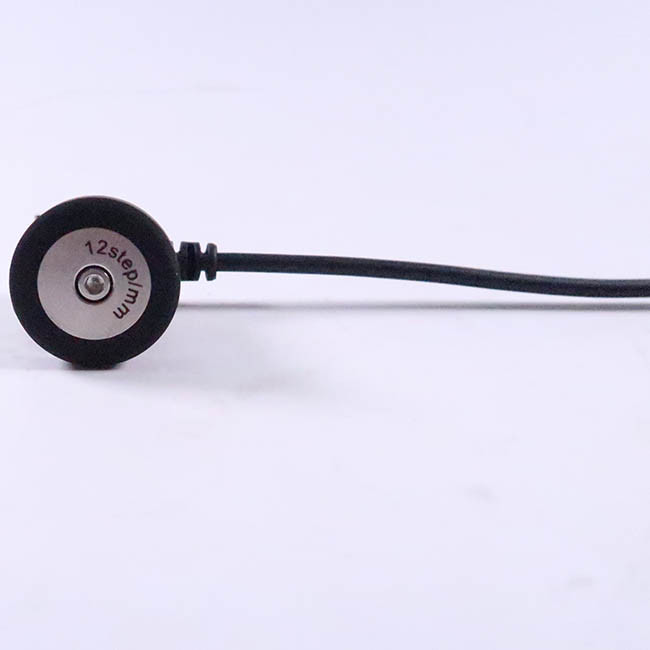

Encoder resolution is engraved on the wheel

Removable encoder wheel

Double O-ring tire for better adherence

Metallic strain relief for cable protection

Spring-loaded pin for encoder attachment

Two M3 threaded holes on top of the casing for rigid attachment

DE version is compatible with the Omniscan instrument (with DE15 connector type)

BX version is compatible with the FOCUS LT instrument (with Bendix connector type)



The Mini-Wheel Encoder is used for the positioning and dimensioning of defects in the

scan axis. It can synchronize data acquisition with probe movement.

The Mini-Wheel Encoder is waterproof and compatible with the HST-X04 scanner, as well

as Olympus NDT standard PA wedges that can be connected with the included bracket kit.

This miniature encoder is built with an aluminium casing, a stainless steel wheel, and has a

resolution of 12 counts per millimeters (304.8 counts per inch).

Tmteck Made  Universal Encoder Mini-Wheel Encoder Compatible With Olympus Ndt Standard Pa Wedges 0



A = 27 mm (1.06 in.) D = 24 mm (0.94 in.)
B = 28.7mm (1.12 in.) E = 17.5 mm (0.69 in.)
C = 22.5 mm (0.89 in.) F = 6 mm (0.23 in.)

Mini-Wheel Encoder Ordering Information



Part number, Cable length (m), Connector

TE01-F2.5-J2 2.5
TE01-F5-J2 5.0
TE01-F7.5-J2 7.5

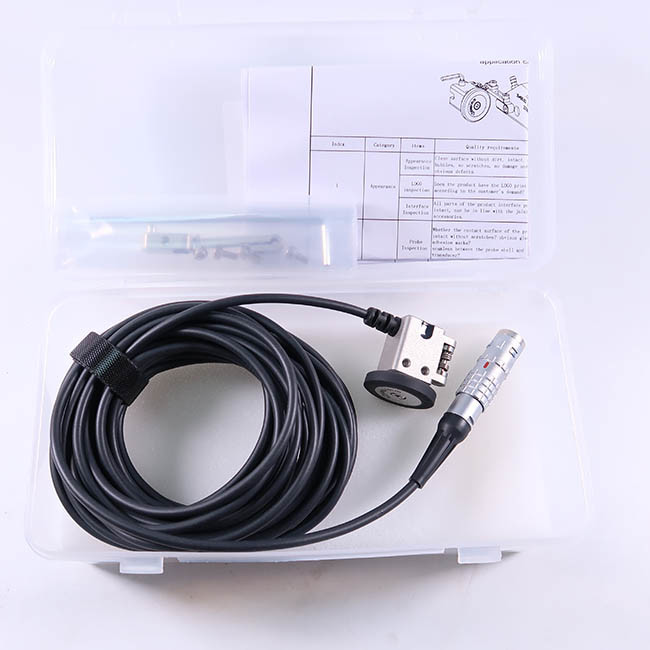

Standard Inclusions

• 1 encoder with standard wheel

• 1 bracket kit

• 1 Allen key screwdriver for bracket attachment

• 1 carrying case
