Measuring Range: | Less Than 450HBS | Diameter Of Steel Ball: | 10mm (0.4") |
---|---|---|---|
Dimension: | F25X110mm (1X4.33") | Weight: | 2 LBS |
Objective Magnification: | 1X | Objective Focus: | 31.48mm (1.24”) |
Highlight: | hbc portable brinell hardness tester,metal portable brinell hardness tester,digital portable hardness tester brinell |
HBC Brand Portable Hammer Hitting Brinell Hardness Tester With Readout Microscope(TMTECK brand promised, will refund you double if it is a fake brand)
This tester is designed to easily measure the Brinell hardness value of different ferrous and non-ferrous metals including crude or annealed steel (non austenitic steel only), quenched and tempered steel (non austenitic steel only), cast iron, brass casting, rolled brass, rolled cooper, alloy of tin and bronze and casting of aluminum alloy.
It can determine the Brinell hardness by measuring the diameters of the indentations left on the test piece and the standard hardness test block. The indentations are obtained by the steel ball of the tester located between the piece and test block with an instant load applied by hammer. The Brinell value can be obtained by referring the attached Conversion Table after measuring the indentations by the readout microscope.
Widely used in shop, material supplier, plant, and quality control due to lightweight, easy operation and convenience. Wooden carring case is included.
Features:
Measuring Range | less than 450HBS |
Diameter of Steel Ball | 10mm (0.4") |
Dimension | f25X110mm (1X4.33") |
Weight | 2 LBS |
Readout Microscope: | |
Objective Magnification | 1X |
Objective Focus | 31.48mm (1.24”) |
Eyepiece Magnification | 20X |
Eyepiece Focus | 12.6mm (0.5”) |
Microscope Magnification | 20X |
Working Distance | 62mm (2.44”) |
View Field Diameter | 9mm (0.35”) |
Effective Measuring Range | 6mm (0.24”) |
Eyepiece Division Plate Value | 1mm |
Eyepiece Division Plate Scores | 6 lines |
Measuring Accuracy | 0.01mm |
Dimension | 70X50X155mm (2.76X1.97X6.10”) |
Weight | 2 LBS |
Brinell Hardness Test Block: | |
Dimension | 12X12X150mm (0.48X0.48X5.9”) |
Weight | 0.17kg (0.37lb.) |

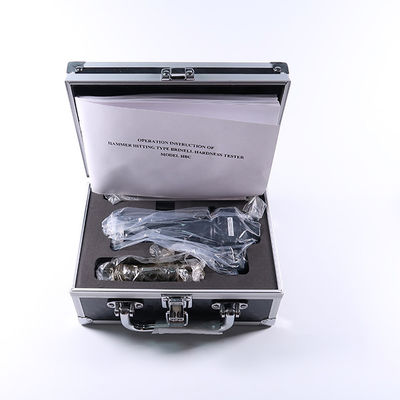

Packing List:
1 | 1 x Hardness Tester |
2 | 1 x Readout Micrscope |
3 | 2 x Hardness Test Block |
4 | 1 x Carrying Box |
