Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc

Basic Information
Place of Origin: China
Brand Name: TMTECK
Certification: EN12668-1
Model Number: TFD806C
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 30PCS/Two weeks
Detail Information
Range: 0-10000 Mm ,at Steel Velocity Warranty: 2 Years
Material Velocity: 100~20000 M/s Pulse Repetition Frequency: 10-2000Hz
Dynamic Range: ≥38dB Resolving Power: >40dB (5P14)
Sensitivity Leavings: >68dB Name: TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc
High Light:

anti noise ultrasonic flaw detector

,

connect pc ultrasonic flaw detector

,

connect pc flaw detector


Product Description

Ultrasonic flaw detector TFD806C Can use probe frequency 20M perfectly



User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG AWS, etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 20M perfectly .

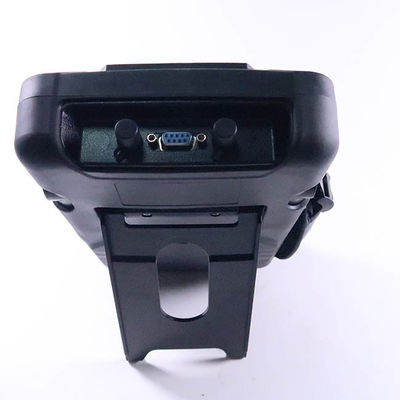

★ IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge.



Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 0

Main interface

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 1

Report

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 2

Menu

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 3

Making DAC

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 4

Coded echo

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 5

Standards

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 6

AVG SET

Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 7

Report list


Specifications
Range:0-10000 mm ,at steel velocity
Material Velocity:100~20000 m/s
Pulse Repetition Frequency:10-2000Hz
Dynamic range:≥38dB
Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )
Resolving Power:>40dB (5P14)
Sensitivity Leavings:>68dB
Reject (suppression): 0 to 80% full screen height
500 independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 1000 A graph
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface
Gate Monitors: Two independent gates controllable over entire sweep range
Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
H×W×D(mm):250×165×55 (mm)
Weight :1.2kg
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass ): 0.2 to 25 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
Transducer Connections: BNC or LEMO


Functions

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-Disk,the unit can get unlimited memory.
There are 15 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site.(Option)
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.



Base Instrument Package
Portable Ultrasonic Flaw Detector
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5,or optional C9- C5)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
App Software
protective rubber casing
Strap
Options:
1. Swiveling metal support, Damping support makes it stands in any angle.
2. Bluetooth connection to mobile device to generate and print detection reports on-site. Bluetooth App on mobile device.
3. V2 block.
4. leather sheath.




Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 8
Anti Noise TFD806C Ultrasonic Flaw Detector Probe Frequency 20M Connect Pc 9
APP
