TMQ-100BS Manual Automatic Cutting Machine With Frequency Converter Adjust Speed

Basic Information
Brand Name: TMTeck
Minimum Order Quantity: 1 pc
Price: Negotiation
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 20pcs/ one month
Detail Information
Cutting Disc Standard: φ200xφ32x0.9 Dimension: 730×700×540mm
Focus Range: 30MM Heater: 220V 850W
Inlay Temperature Range: 0~200°C Adjustable Motor Driver: 370W,220V,50Hz
Mould Specification: φ25 φ30 φ40 φ50 (choose Two) Type: Portable Metallurgical Microscope
Voltage: 220V, 1ph, 50Hz Warranty: 2 Years
High Light:

Frequency Converter automatic cutting machine


Adjust Speed automatic cutting machine


Frequency Converter manual cutting machine

Product Description

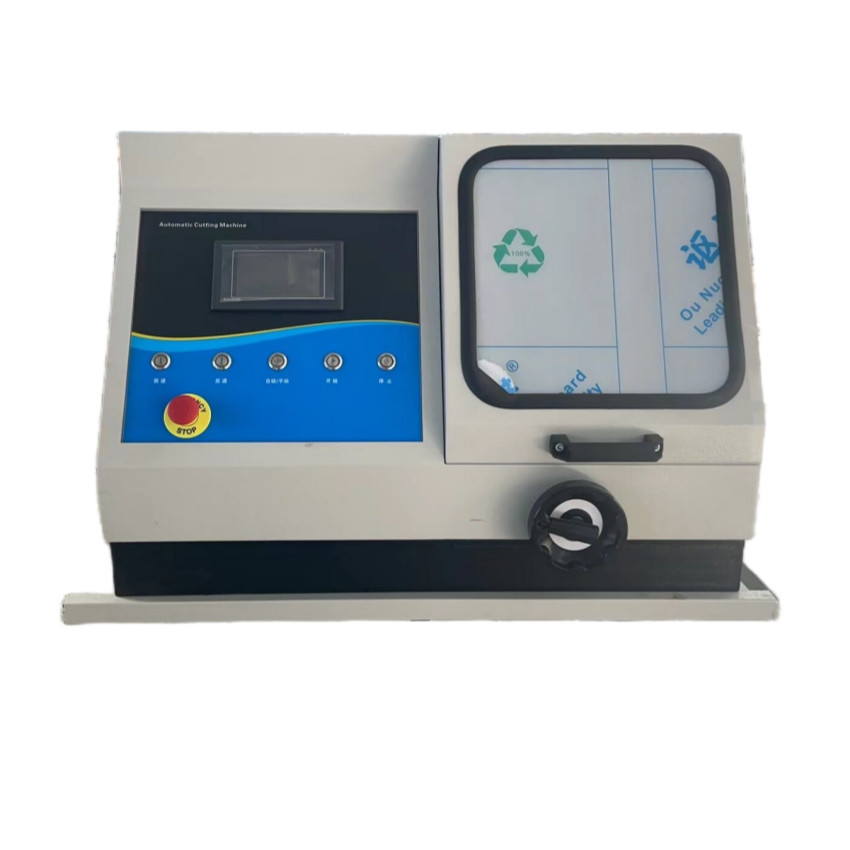

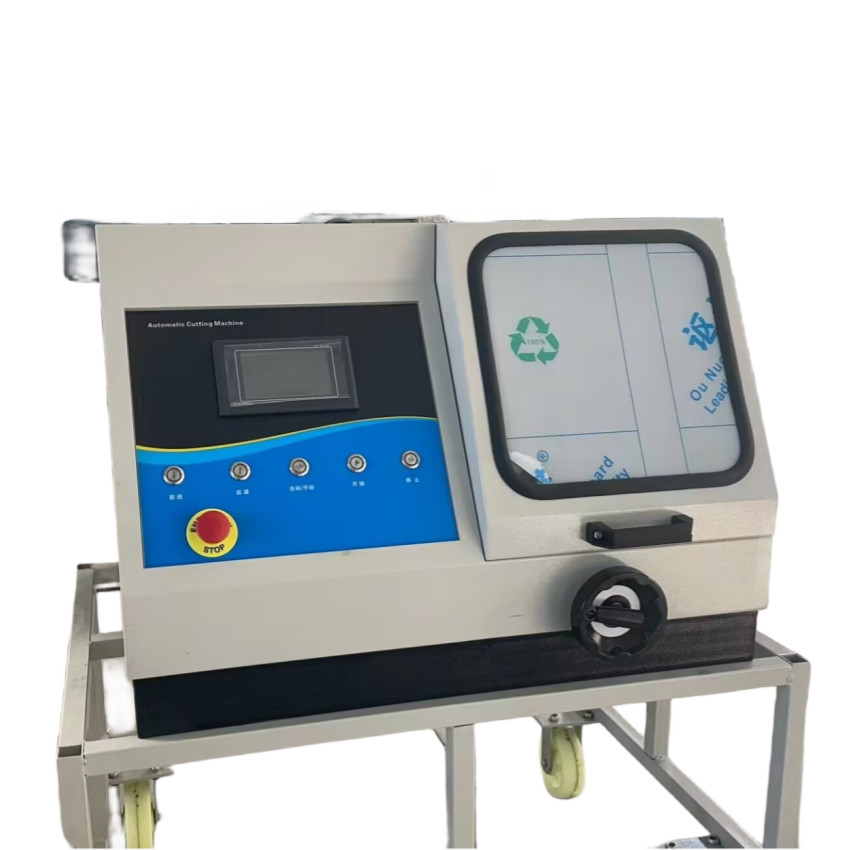

TMQ-100BS Manual&Automatic Cutting Machine with frequency converter


1. Various cutting data can be displayed on high definition backlight type LCD screen.
2. Manual cutting and automatic cutting means can be switched at will
3. Large cutting chamber, tempered glass observing window
4. Equipped with 60L cooling liquid water tank.
5. Non-burning loss swing type cutting means that improved the cutting quality
6. Automatic withdraw function after cutting is finished
7. Bidirectional feeding means increase the length of deep cutting

8. Power supply : Three phase four line(380V/50HZ)

9. Spindle speed : 2100r/min

10. Cutting discspecification : Φ350mm×2.5mm×32mm

11. MAX cutting diameter : 100mm

12.Maximum cutting volume:100×200mm

13.Electric machinery:YS90L2-2 3KW

14.Cutting table size:310×280mm

15. Dimension :930×700×610mm

16. added with frequency converter, 50-3000 rpm can be adjusted.




Diameter of working disc 203mm (250mm can be customized)
Rotating Speed of working disc 300/600 rpm(two-level constant speed)
Working Voltage 380V/50Hz
Diameter of Abrasive Paper φ200mm (250mm can be customized)
Motor Yc713, 550W
Dimension 700*600*270mm
Weight 45KG
