TE-04 TMTECK Universal Encoder Compatible With HSMT Compact Scanner

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Minimum Order Quantity: 1pc
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,Paypal
Detail Information
Warranty: 6 Months Application: Industrial Detection
Usage: Flaw Detection Power: Electronic
High Light:

TMTECK universal encoder


HSMT Compact Scanner universal encoder

Product Description

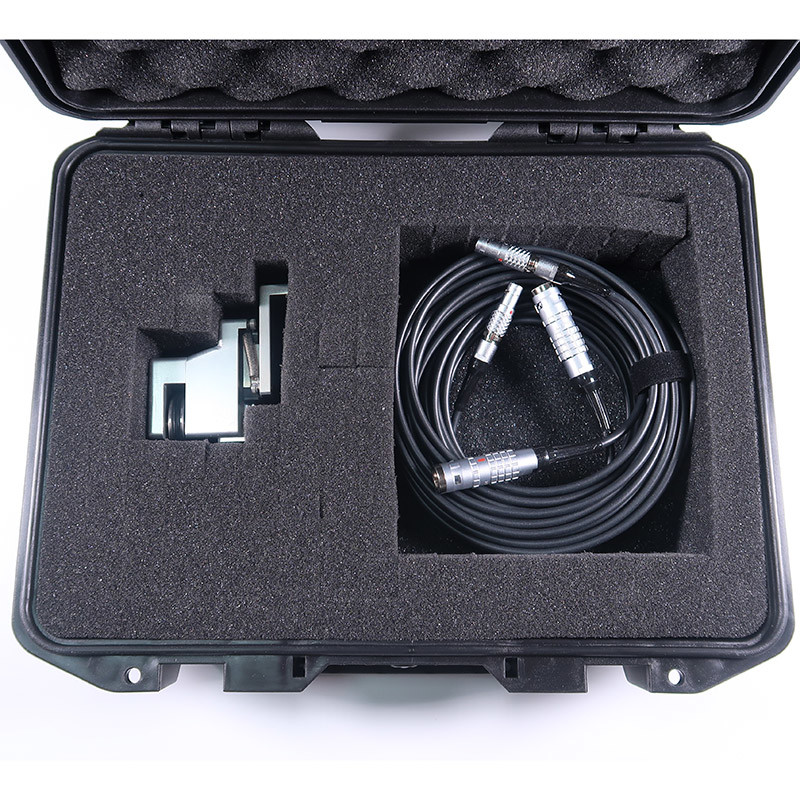

TE-04 TMTECK UNIVERSAL ENCODER compatible with HSMT-Compact Scanner

The HSMT-Compact is a manual one-axis encoded scanner. In particular, it is light and small, and also versatile. It can be used (with up to 4 probes) on plates and for circumferential scans on pipes as small as 4.5 in. OD pipes.


The HSMT-Compact is a light, small, and versatile manual one-axis encoded scanner. It can be used -with up to four probes- on plates and for circumferential scans on pipes as small as 4 in. schedule (4.5 in. OD). The scanner length can be changed and the frame can extend outside the limit of the wheels, providing a configuration that is well suited for hard-to-reach places such as pipe-to-component welds.

The HSMT-Compact completes the HSMT family. While the HSMT-Flex and HSMT-X03 are designed for construction welding inspection, the HSMT-Compact is designed for maintenance weld inspection.

HSMT-Compact Kit Includes:

  • Scanner frame with handles
  • Additional frame bars: 400 mm (16 in.) and 600 mm (24 in.)
  • Four magnetic, plastic-covered wheels
  • Waterproof, spring-loaded wheel encoder
  • TE-04-compatible encoder with 5 m cable
  • Four 90° probe holder brackets
  • Four spring-loaded arms (SLA)
  • Four TOFD/PE yokes (31.75 mm)
  • Two phased array yokes (40 mm)
  • Irrigation tubing and accessories
  • Two metric/U.S. rulers
  • Hard carrying case

A typical configuration includes two phased array probes and a pair of TOFD probes, to comply with ASME code.

Other configurations include:

  • 1 pair of TOFD probes
  • 2 pairs of TOFD probes
  • 2 PA probes


  • Circumferential scan on 4 in. schedule pipes (4.5 in. OD), or greater
  • Magnetic wheels hold the unit against a ferromagnetic inspection surface.
  • Light aluminum frame with customizable length
  • Frame design allows probes to be positioned outside the wheels.
  • Support up to 4 probes on pipes or flat surfaces
  • Fully adjustable probe positioning
  • Independently spring-loaded probe holders
  • Waterproof, spring-loaded encoder
  • Removable handles
  • Eyelet for umbilical or lanyard attachment
  • Water manifold integrated into the scanner frame
  • Metric/U.S. rulers on the scanner for easy probe separation measurement
