TSW-20 series digital display Webster hardness tester Aluminum alloy

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TSW-20
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 50PCS/Two weeks
Detail Information
Model: TSW-20 Range: 0-20HW
Accuracy: ±0.5HW Display Resolution: 0.1HW
Measuring Range: Equivalent To 20~110HRE

Product Description

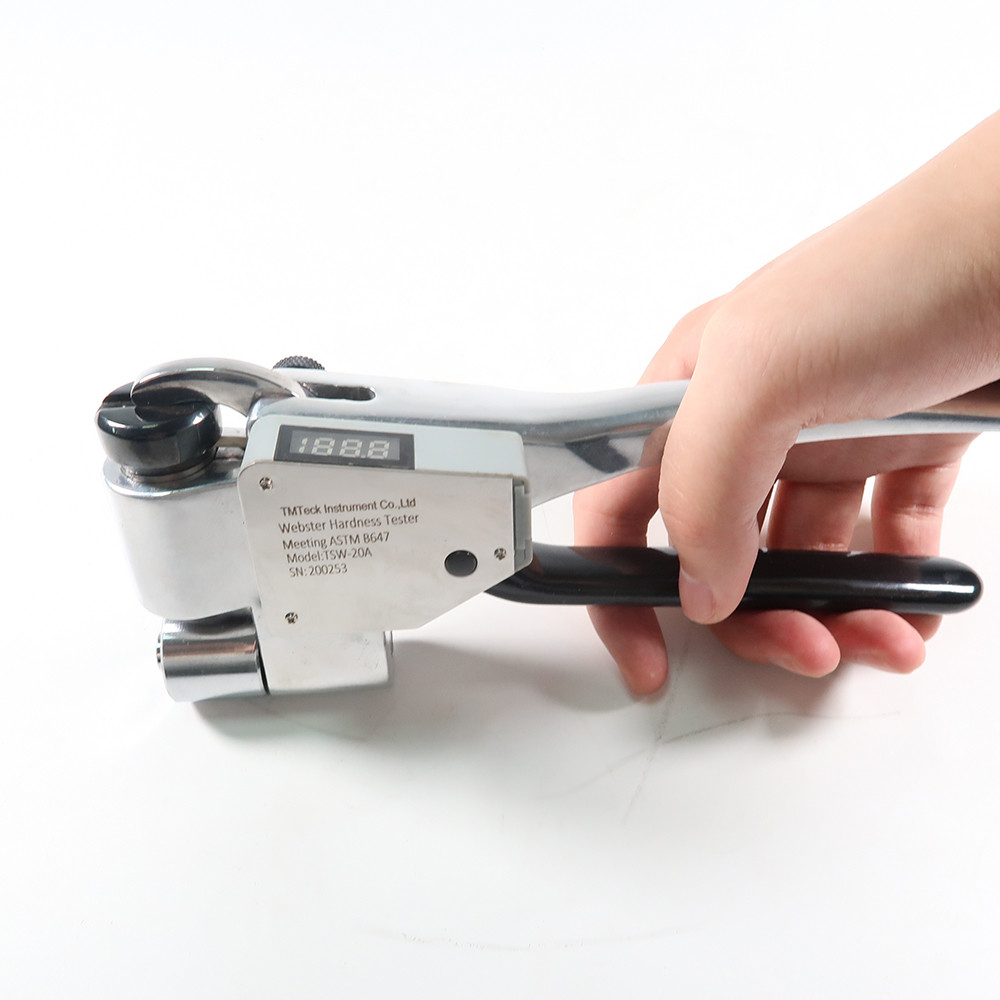

TSW-20 series digital display Webster hardness tester Aluminum alloy



TSW-20 series digital display Webster hardness tester Aluminum alloy Webster hardness tester (also known as clamp hardness tester) is a portable instrument that can quickly test the hardness of aluminum alloys on site. The test is quick and easy, just one card, and the hardness value is displayed directly. Determine whether the workpiece has heat treatment, check the effect of heat treatment; determine whether the workpiece is processed from an inappropriate alloy; test long, heavy workpieces or assemblies that are inconvenient to send to the laboratory; used for production inspection, acceptance inspection and quality supervision inspection ; Mainly used to measure the hardness of aluminum alloys (1100~7075 series).



Features

Aluminum alloy Webster hardness tester is suitable for testing aluminum alloy profiles, pipes and plates, especially suitable for quick, non-destructive qualification inspection of product hardness on production sites, sales sites or construction sites; it can quickly and directly display the hardness tester ; Webster hardness value can be converted into commonly used Vickers, Rockwell, Brinell hardness and tensile strength values;

Three, technical parameters.

1. Range: 0-20HW

2. Accuracy: ±0.5HW

3. Display resolution: 0.1HW

4. Measuring range: equivalent to 20~110HRE



TSW-20 series Webster hardness tester instrument selection:



Model



Sample size/diameter mm



Net Weight Kg



Total weight Kg



Packaging size in mm



TSW-20



plates with thickness≤6, pipes with inner diameter ≥10



0.5



1.1

280×230×80



TSW-20a



plates with thickness ≤13,pipes with inner diameter ≥10



0.5 1.1

280×230×80



TSW-20b



plates with thickness ≤8, pipes with inner diameter ≥6 0.5

1.1



280×230×80





Webster hardness tester optional accessories:

1. Press the needle

2. Standard hardness block

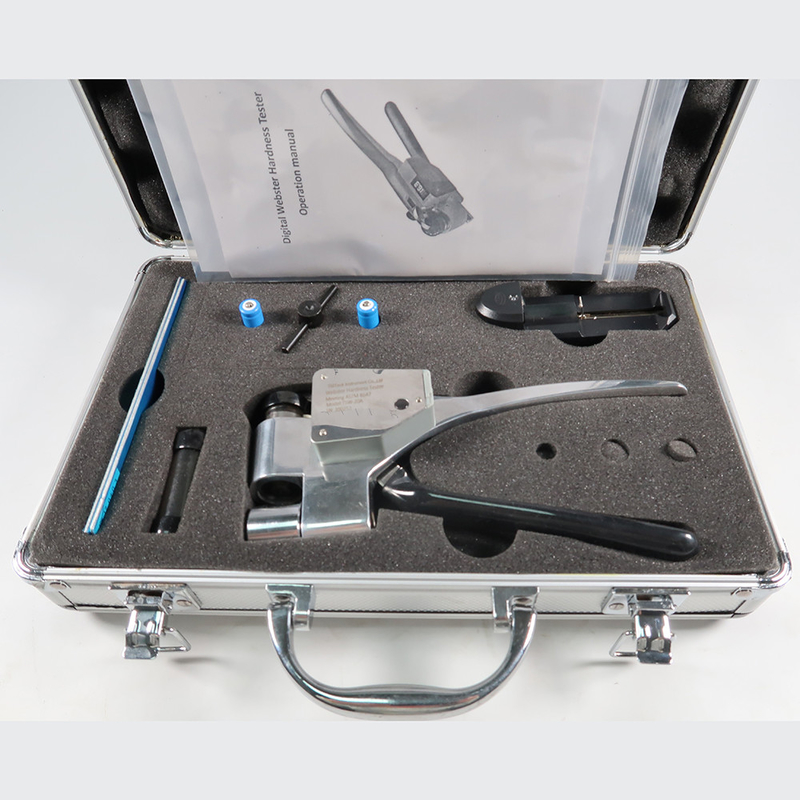

standard packing list:

Host 1 set

Standard hardness block 2 pieces

Spare pressure needle 1 stick

Correction wrench 1

Charger 1

Rechargeable Battery 1

instrument case 1

Manual 1
