Ultrasonic thickness gaugeTM282 with A&B Scan/Through coating/Software

Product Description

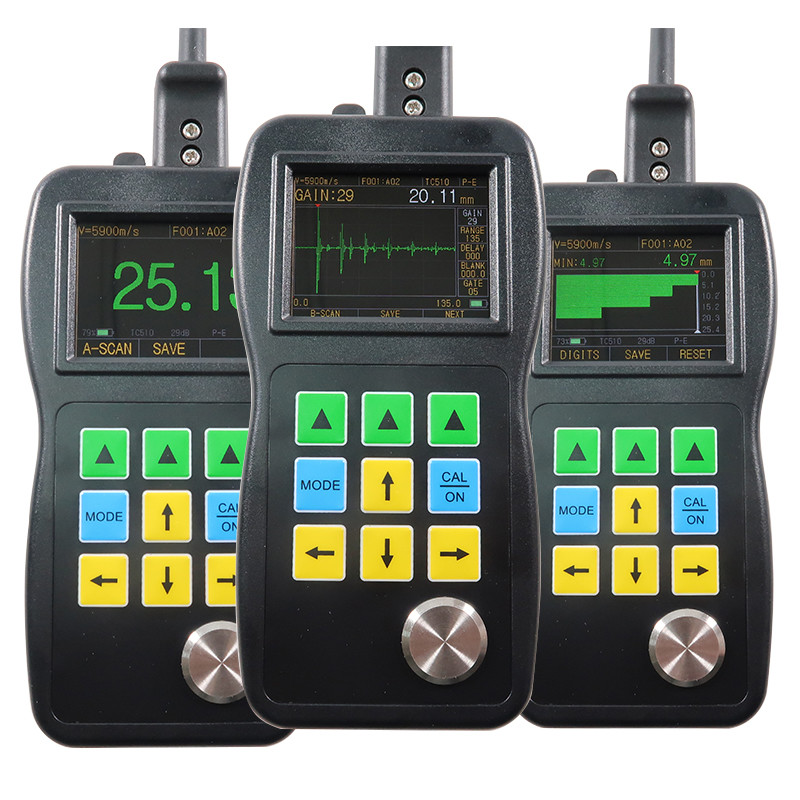

TM282 Color Screen with A/B-Scan Ultrasonic Thickness Gauge Professional in Solving Various Difficult Thickness Measurement

Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 0





Features:

2.4” color OLED, 320 X 240 pixels, display contrast 10,000:1



Live Color A-Scan

Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 1

Users could directly see the color waveform of the ultrasonic sound (or A-scan) on the screen, which is quite important for the occasions that we need to check the correctness of the testing results. Many cases will cause wrong testing results or even noreadings. We could find the causes easily through the A-scan. Adjust the three parameters of GAIN, BLACKING, GATE, and then we will get the right readings.



Live Color B-Scan

Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 2

TM282 thickness gauge has time base B-scan function. Move the probe along the workpiece surface, then the cross -sectional profile of the workpiece display, use for observe the underside contour of the workpiece.It could be automatically capture a minimum value of the B-scan image, and indicate the position of the minimum by a red triangle. You can see any point thickness value of the B-scan image by moving the pointer.



Through Coating Function No longer need to waste time to remove the coating

TM282 has this widely acclaimed function. It's realized by measuring the two continuous bottom surface of the substrate. This mode also has more advantages:

1. Exempt Zero Calibration

2. High Stability, the measuring value is not influenced by the probe pressure, the coupling layer thickness and the surface dust of the workpiece.

3. Zero Drift



Power-Cutting Function

Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 3

The Power-cutting button is added on the bottom.If you do not use the device for a long time,you can press this buttton to save the energy, which makes battery a much longer life.



More Practical Function

Difference/Reduction Rate: Difference mode displays the difference between the actual value and the normal value. Reduction rate calculates and shows the percentage of the thickness reduction when the material becomes thin. Typical application is to measure the metal material which is due to bending and becomes thin.

Information displays: LOS, min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol

Max./Min. Capture: On this mode, the current thickness, minimum thickness and the maximum thickness will be shown on the screen at the same time.

Alarm Mode: Dynamic change the color of thickness readings when alarming.

Update Rate: Selectable 4Hz, 8hz and 16Hz. 4Hz for ordinary application, when you need a quick scan, such as high temperature measurement, you can choose higher update frequency.

Multi- Languages Available: Chinese, English, Spanish, German.

Echo to Echo: Measures the metal thickness only (ignore paint and coatings)

Data logger: 99999 thickness data logger with ID point in linear or grid files ( 400 files)

Output: USB 2.0 full speed connector. DataView report software

Size: 156mm) (L) 76mm) (W) x 1.25" (38 mm) (H)

Weight: 285 g

Temperature: Gage Operating: -10° C to 50° C



Standard TM510 Probe

The probe is the heart of the instrument,TMTeck has the world’s leading probe production technology. TM510 probe uses the high performance piezoelectric ceramic chip, with integrated metal die-casting shell, practical design of probe and cable separated, regardless of costs to create high quality .



The Difference Between TM282 Series Ultrasonic Thickness Gauge

  TM282 TM282D TM282DL
Color Display
Live A-Scan
Time-based B-Scan
Control of Gain and Gate
Blanking
Thru-paint&coatings ×
Data Logger × ×
DataView Software × ×

Specifications of TM282DL Ultrasonic Thickness Gauge

Display Type 2.4'' color OLED, 320×240 pixels, display contrast 10,000:1
Operating Principle Pulse echo with dual elemet transducers
Measuring Range 0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition;E-E Mode:3-50mm under condition
Measuring Resolution Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
Units Inch or Millimeter
Rectify Mode RF+, RF-, HALF+, HALF-, FULL
Display Mode Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s(0.0197 to 0.3939 in/μs)
Languages English, French, German,spanish,Chinese
Alarm Settings Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010'' to 20.00''). Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10℃ to +50℃(+10°F to +12°F )
Size 158mm × 76mm × 37mm (H × W × D)
Weight 285g including batteries



Standard Delivery TM282DL

Name Quantity
Main body 1
Probe 1
Battery 1
Couplant 1
Carrying Case 1
Operating Manual 1
USB Cable 1
Software 1



TM282 Probe/Transducer Specifications
PIC Model Type Frequency Contact Diameter

Measurement

Range

Temperature Range
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 4 PT-08 TM282 Standard 5MHz 11mm 0.8 to 100.0mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 5 TM510 TM282D/DL Standard 5MHz 13.5mm 1.2 to 200.0mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 6 TM550 Small tube 5MHz 5mm 0.8-60 mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 7 ZT-12-2 Cast iron 2MHz 17mm 4.0 to 508mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 8 PT-06 Small tube 7.5MHz 8mm 0.8 to 30mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 9 PT-04 Fingertip 10MHz 6mm 0.7 to 12mm -10 to 70℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 10 GT-12-2 High- Temperature 5MHz 15mm 4 to 80mm -20 to 300℃
Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 10 GT-12-4 High- Temperature 5MHz 15mm 4 to 80mm -20 to 550℃


Tm282 Ultrasonic Thickness Gauge With A&B Scan / Through Coating / Software 12
