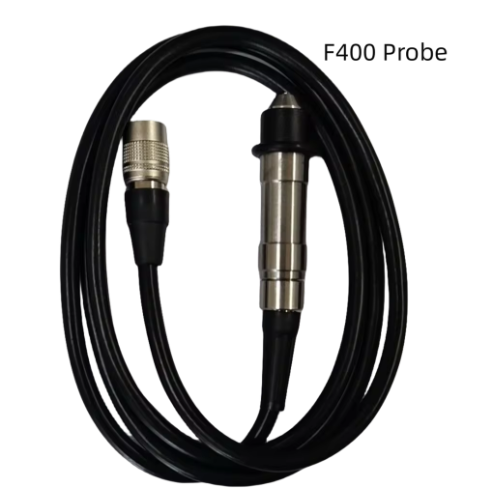

F400 Coating Thickness Probe For COATING THICKNESS GAUGE TM510FNplus

Basic Information

Place of Origin:	China
Brand Name:	TMTeck
Model Number:	F400

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton 201512cm 0.5kg
Delivery Time:	3-5 work day
Payment Terms:	T/T
Supply Ability:	50PCS/Two weeks

Get Best Price Contact Now

Detail Information

Measuring Range:

0~400μm

Highlight:

F400 coating thickness probe

TM510FNplus gauge probe

coating thickness gauge accessory

Product Description

F400 Coating thickness probe for COATING

THICKNESS GAUGE TM510FNplus

Probe		F400	F5	F1	F1/90°		F10
Measuring Principle			Magnetic method
Measuring range(mm)		0～400um	0～1250 um				0～10000
Min resolution(mm)		0.1	0.1				10
Tolerance	One-point calibration (mm)	±(2%H+0.7)	±(2%H+1)				±(2%H+10)
	Two-point calibration (mm)	±(1%H+0.7)	±((1%H+1)				±(1%H+10)
Minimum radius of curvature (convex) (mm)		1	1.5	1.5		flat	10
Minimum measuring area(mm)		F3		F7		F7	F40
Minimum thickness of base material(mm)		0.2		0.5		0.5	2
