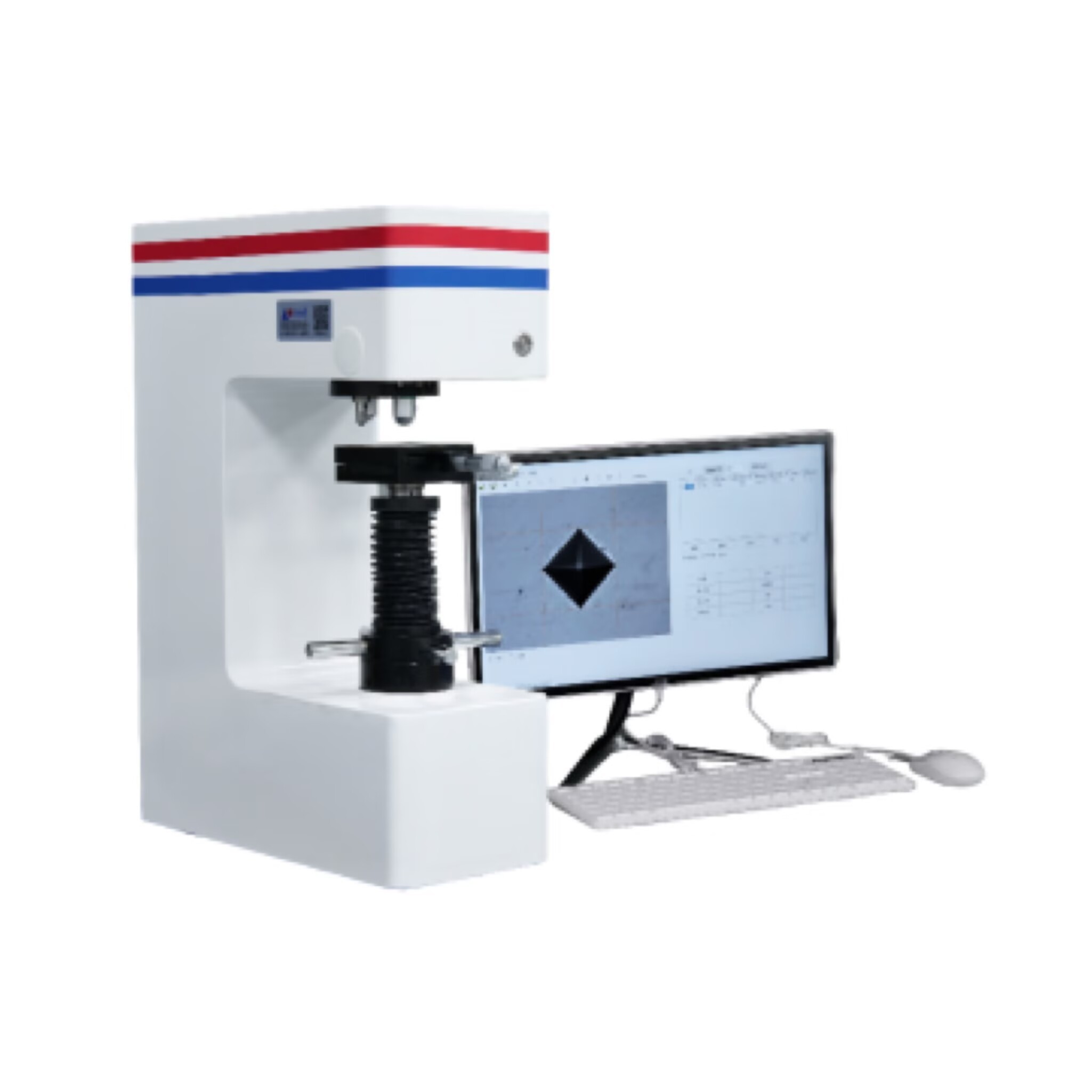

Name: Automatic Turret Vickers Hardness Tester with Electric Closed Loop Loading and 5-Megapixel HD CCD Camera
Brand: TMTeck Instrument Co., Ltd
SKU: TMHV-MPT Series
Availability: InStock

Detail Information

Loading Method:	Electric Closed Loop	Compliant With Standards:	GB/T4340, ASTM E92
Conversion Ruler:	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T	Hardness Test Range:	8~2900HV
Test Objective Lens:	10X, 20X	Test The Force:	Automatic (loading, Holding, Unloading)
Highlight:	Vickers Hardness Tester 10MPT model , Vickers Hardness Tester with warranty , Vickers Hardness Tester 100MPT model

Product Description

TMHV Series Vickers Hardness Tester

Modern minimalist style hardness tester system combining precision instrumentation with computer technology for exceptional cost-effectiveness.

Key Features

Compact design with integrated light source and camera
Includes brand computer with 5-megapixel HD CCD camera for superior image clarity
Dedicated control and measurement software for hardness testing
High-brightness, long-life LCD light source
Automatic hardness measurement and turret control
Precision calibration using micrometer or hardness blocks
Hardness value statistics with over-limit alarm system
Hardness conversion according to national standards and ASTM
Customizable test reports with permanent data and image storage

Technical Specifications

Parameter	TMHV-10MPT	TMHV-30MPT	TMHV-50MPT	TMHV-100MPT
Test Force Range (kgf)	0.3-10	0.5-30	0.5-30	2-100
Standard Force Values	0.3, 0.5, 1.0, 3.0, 5.0, 10 kgf	0.5, 1.0, 2.0, 2.5, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0 kgf	1.0, 2.0, 2.5, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0 kgf	2.0, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0, 60, 80, 100 kgf
Loading Method	Electric Closed Loop
Force Application	Automatic (loading, holding, unloading)
Turret	Automatic
Compliance Standards	GB/T4340, ASTM E92
Hardness Test Range	8~2900HV
Test Objectives	10X, 20X
Force Holding Time	1~99s
Max Specimen Height	160mm
Indenter to Wall Distance	170mm
Computer System	21.5" All-in-one, 4GB RAM + 120GB SSD, Windows OS, WiFi
Camera	5 Megapixels
Dimensions	580190700mm
Weight	Approx. 55kg
Power Supply	AC220V ±5%, 50-60Hz, 600W

Standard Accessories

Item	Quantity	Notes
All-in-one Computer	1	Includes program and user manual
Camera	1	Built-in
Camera Interface	1	Built-in
X/Y Test Bench	1	-
Vickers Hardness Block	2 pieces	-
Horizontal Adjustment Feet	4	-
Hex Socket Wrench (2.5mm)	1	-
Dust-proof Bag	1	-
Spare Fuse (2A)	2 pieces	-
Power Cord	1	-
Product Documentation	1 copy	Qualification certificate and warranty card

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TMHV-MPT Series

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	7-15 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10 pieces within two weeks
