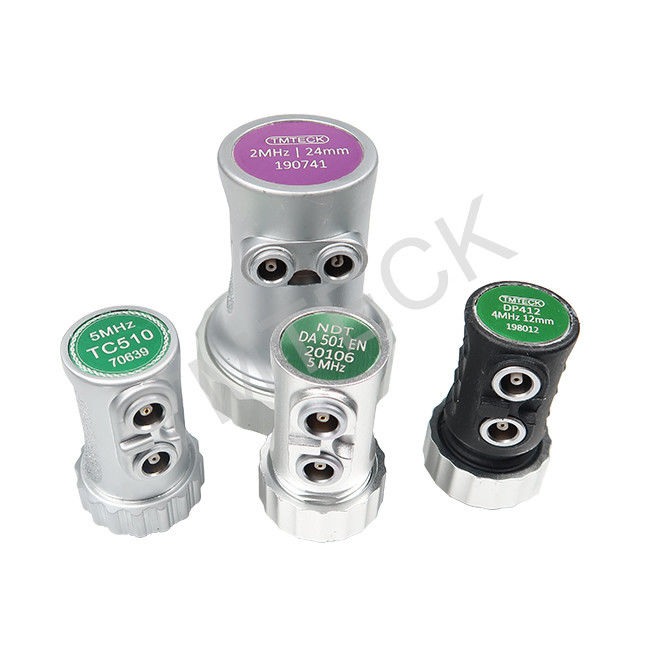

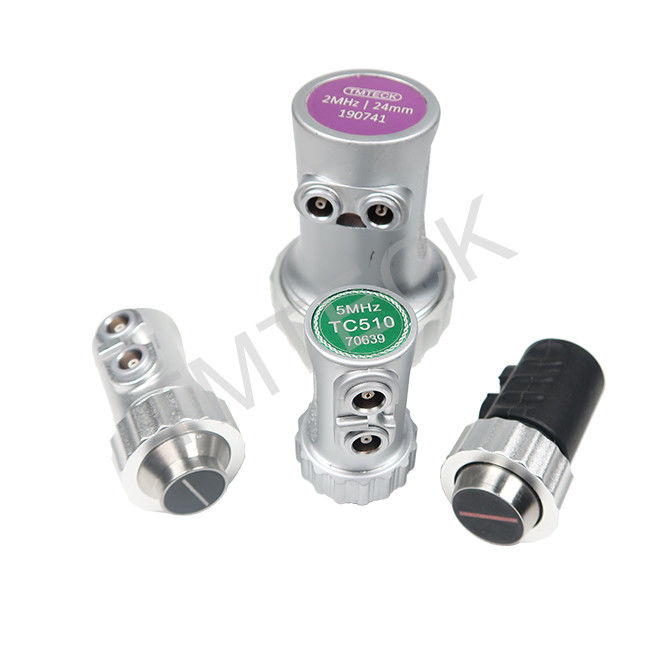

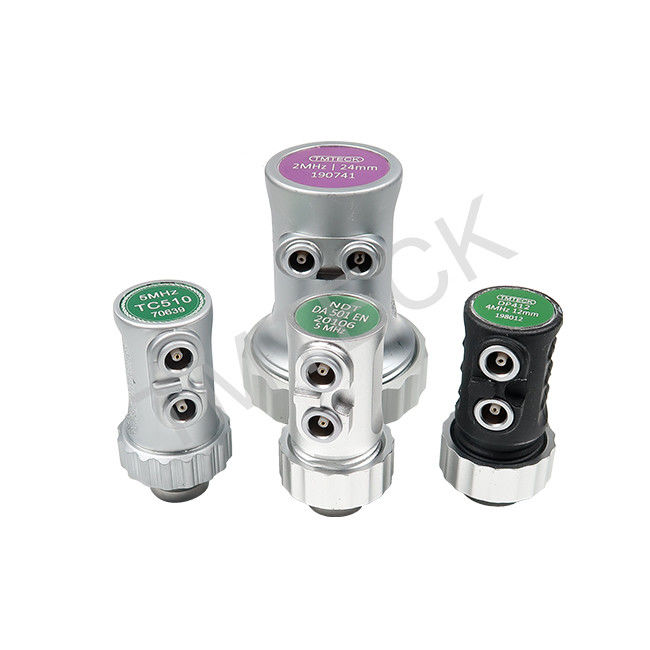

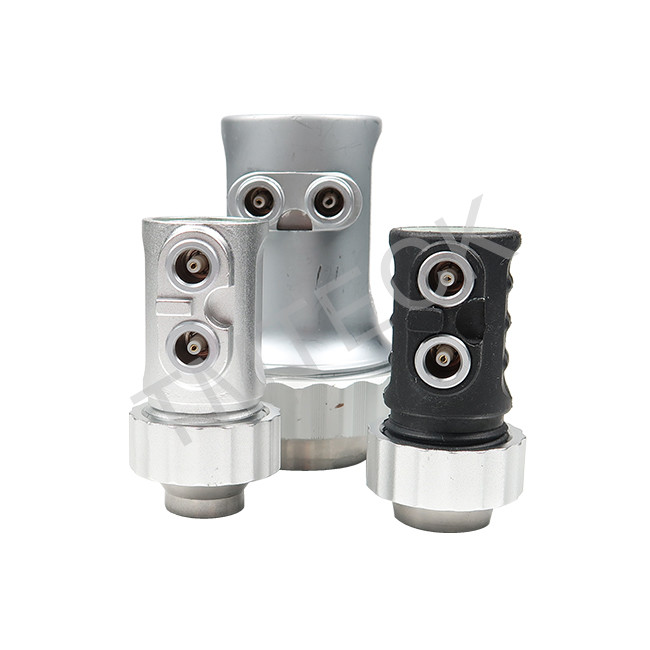

Dual Contact Ultrasonic Transducer

Basic Information
Place of Origin: China
Brand Name: TMTeck
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100pcs/ one week
Detail Information
Name: Ultrasonic Testing Probe Frequency: 5mhz
Size: 3 4 Inch OEM/ODM: Support
High Light:

Dual Contact Ultrasonic Transducer

,

Ultrasonic Transducer Probe


Product Description

Dual contact probe



Parameter:

model EQUV. GE MODEL DA301
Frequency 5Mhz
Center Frequency 4.93MHZ
Crystal Dimension 10mm
Sensitivity 27dB
Type Straight beam probe
Diameter contact surface 12.5mm
Measuring range 1.2 – 200mm
Connection type 2x Lemo-00
Connection position side
Amount of christals 2
Bandwidth(-6dB) 38%
Temp -5—50C
Probe Type Dual

EQUV. GE MODEL DA501EN ULTRASONIC Probe 5MHZ 12.5mm



Model Frequency (Mhz Crystal Dia (mm) Connector type Range in steel(mm) Temperature range
DA501EN 5 12.5 Lemo00 1.0-200 -20-60



TC510 dual contact probe utransducer

Model Frequency (Mhz Crystal Dia (mm) Connector type Range in steel(mm) Temperature range
TC510 5 10 Lemo00 1.0-200 -10-60



● Detecting wall thickness and corrosio
● Excellent near surface flaw detection
Model

Frequency

MHZ

rystal Dia.

mm

Standard

Connector

DP-212 2 12

Dual Lemo 00

equivalent

DP-412 4 12
DP-220 2 20
DP-420 4 20
DP-124 1 24
DP-224 2 24
DP-424 4 24
