500 Test Values Ultrasonic Thickness Gauge

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Model Number: TM251D
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton 30*15*24cm 2.5kg
Delivery Time: 3-5 work day
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100PCS/Two weeks
Detail Information
VELOCITY RANGE: 1000-9999 M/s (0.0393-0.3936 Inch/μs) DISPLAY TYPE: 4 Digital LCD With Advanced Backlight
MEMORY: 500 Test Values POWER: 2 Pcs. 1.5v AA Batteries
OUTSIDE DIMENSION: 149mm×73mm×32mm WEIGHT: 160g
High Light:

ultrasonic gauge thickness tester

,

ultrasonic metal thickness gauge


Product Description

TM251D THROUGH PAINT OR COATING THICKNESS GAUGE



Product Description:

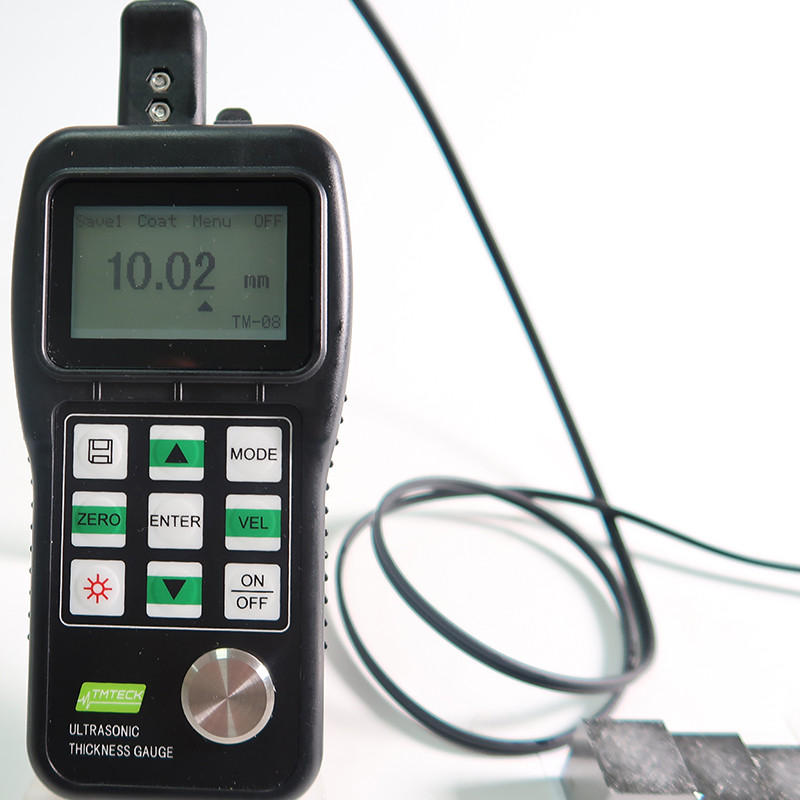

500 Test Values Ultrasonic Thickness Gauge 0

FEATURES:

  • AUTOMATIC SELF CALIBRATION
  • COUPLANT INDICATOR
  • AUTOMATIC POWER OFF DEVICE
  • HIGH-LOW LIMIT ALARM
  • LCD BRIGHTNESS ADJUST
  • THROUGH COATING CAPABILITY
  • LOW BATTERY INDICTOR



TECHNICAL SPECIFICATIONS :

  TM251D
MEASURING RANGE (STEEL) Standard 0.8mm – 250mm Depending of the probes
Through coating 3mm – 18mm Depending of the probes
DISPLAY RESOLUTION 0.1mm/0.01mm or
0.01inch/0.001inch
TOLERANCE +/- 0.025mm in steel
VELOCITY RANGE 1000-9999 m/s (0.0393-0.3936 inch/μs)
DISPLAY TYPE 4 digital LCD with advanced backlight
MEMORY 500 Test Values
POWER 2 pcs. 1.5v AA Batteries
OUTSIDE DIMENSION 149mm×73mm×32mm
WEIGHT 160g

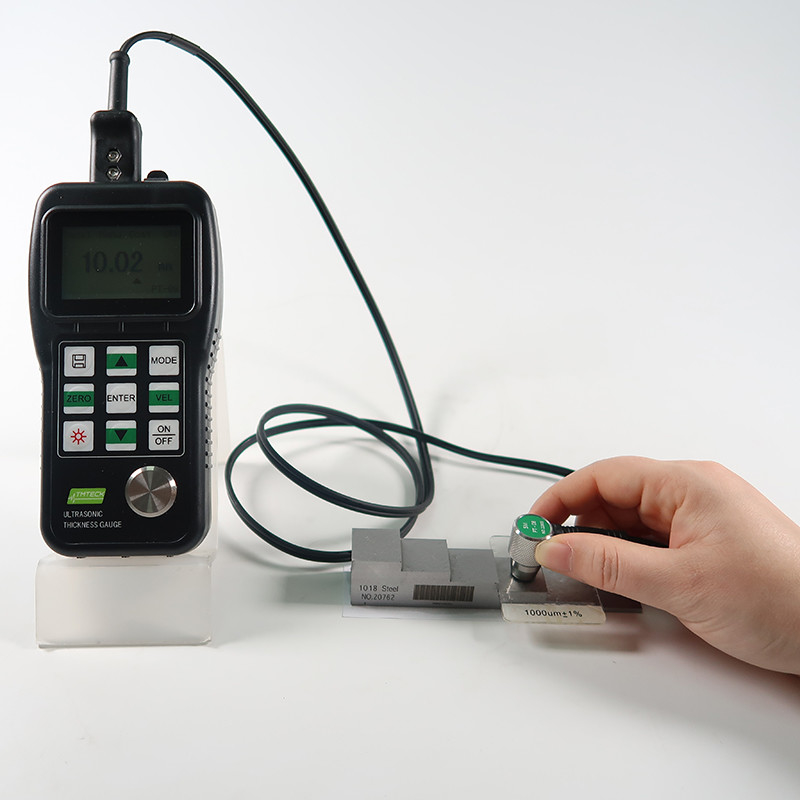

500 Test Values Ultrasonic Thickness Gauge 1

STANDARD DELIVERY :

  • MAIN UNIT WITH THOUGH COATING MODE
  • STANDARD PROBE TM-08
  • COUPLANT BOTTLE
  • TWO AA SIZE 1.5V BATTERIES
  • OPERATION MANUAL
  • CARRYING CASE
