Stainless Aluminum Astm Distance Amplitude Blocks

Basic Information
Place of Origin: China
Brand Name: TMTeck
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton, kg
Delivery Time: 4-6 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50PCS/Two weeks
Detail Information
Product: ASTM Distance/ Area Amplitude (Set Of 10) Material: 1018 Steel, Aluminum, Stainless
Standard: ASTM E127-2015 Or ASTM E428-2008 Type: NDT Accessories
High Light:

hardness calibration blocks


iiw type 2 calibration block

Product Description

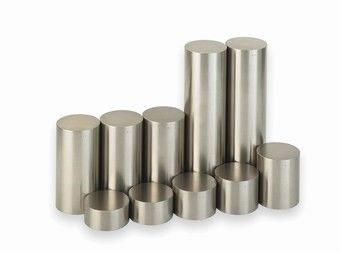

ASTM Distance/ Area Amplitude (Set of 10)



ASTM E127-2015 or ASTM E428-2008
Calibration Functions:
Determining relationship comparisons of flaw size and echo amplitude.
Basic set of ten flat-bottom hole blocks used to determine dead zone, sensitivity, distance and area amplitude linearity measurements. In accordance with ASTM E127. Includes our NIST traceable dimensional certification report, ultrasonic inspection report and two response plots, and the certified material test report.


• Dimensions: 3/64” at 3.000” MTD; 5/64” at 0.125”, 0.250”, 0.500”, 0.750”, 1.500”, 3.000” and 6.000” MTD; and 8/64" at 3.000" and 6.000" MTD. Block diameter is 2.0".

• Made from 7075-T6 Aluminum, black anodized.

• Hardwood or Durable Plastic Cases recommended...see above.


*Sets of ASTM Blocks in aluminum alloys are available with various colors of anodic coating. Colors available include black, blue, green, red, gold, orange, gray and clear. Colors other than the typical black coating come at additional cost. Blocks are anodized in accordance with MIL-A-8625, and receive a sulfuric acid soft coat (Type II) anodize (Class 1 for clear coating, Class 2 when colored dye is used). Contact PH Tool Technical Sales to discuss further coating options.




Q: Are You Trading Company Or Manufacture?


A: We Are Manufacture






Q: How Long Is Your Delivery Time?


A: Generally It Is 2-3 Days Upon Advanced Payment For Small Orders Or It Need To Negotiate For Quantity Order Over 50pcs




Q: How Do You Send The Goods?


A: We Usually Send Goods Via Dhl,Tnt,Fedex For Small Order.




Q: What Is Your Terms Of Payment?


A: Payment Is 100% In Advance Via T/T ,Paypal,Western Union.




Q: How About Your After -Sales Service?


A: 2 Year Warranty For All Kinds Of Gauges Except Consumed Accessories.
