Rebound Concrete Test Hammer Testing Strength Tall Building Structure Bridge

Basic Information
Place of Origin: China
Brand Name: Tmteck
Certification: CE
Model Number: TMH-1000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pc in carrying case and per carton box
Delivery Time: 3-4 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100pcs/month
Detail Information
Test Range: 50~80Mpa Standard Impact Energy: 9.8J
Stroke Of Rebound Hammer: 140mm Friction Of Pointer Slider: 0.4N~0.8N
Average Rebound Value On Steel Anvil: 83±2 Stiffness Of Tension Spring: 10N/cm
High Light:

concrete hammer test machine

,

ndt rebound hammer test


Product Description

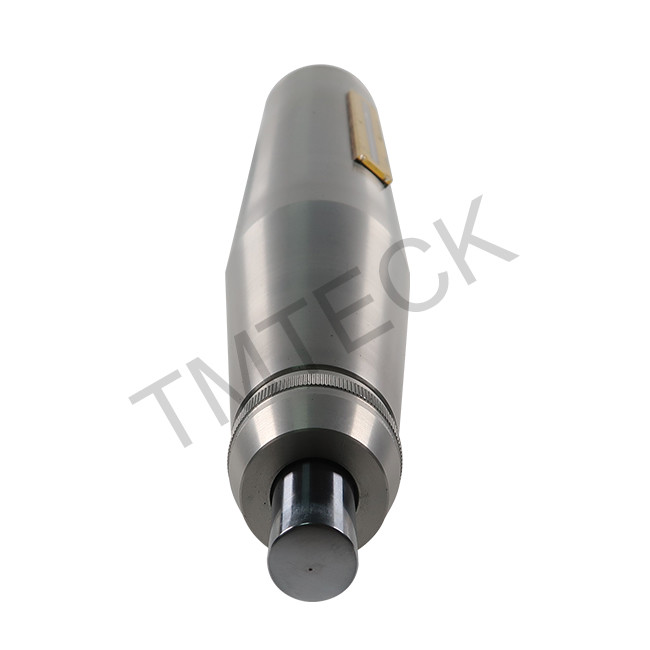

TMH-1000 Test Hammer suitable for testing strength of tall building structure, bridge and concrete component etc



Brief introduction:

Submit to JGJ/T23-2001 technology regulation. The instrument is suitable for testing strength of tall building structure, bridge and concrete component etc.



Trait:

1 ) Center rod use imported material, high precision and wear proof:

2) Shell use super hard aluminums, protect instrument from damage on site work and prolong use life;

3) Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price.

Parameter:

Test range 50~80Mpa
Standard impact energy 9.8J
Stroke of rebound hammer 140mm
Friction of pointer slider 0.4N~0.8N
Average rebound value on steel anvil 83±2
Stiffness of tension spring 10N/cm
Size Φ65*486mm
Weight ≈3.5KG
