TMRS-710 Integrated Rebar Scanner

The appearance of TMRS-710 integrated Rebar detector:

a)Top view:

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 0

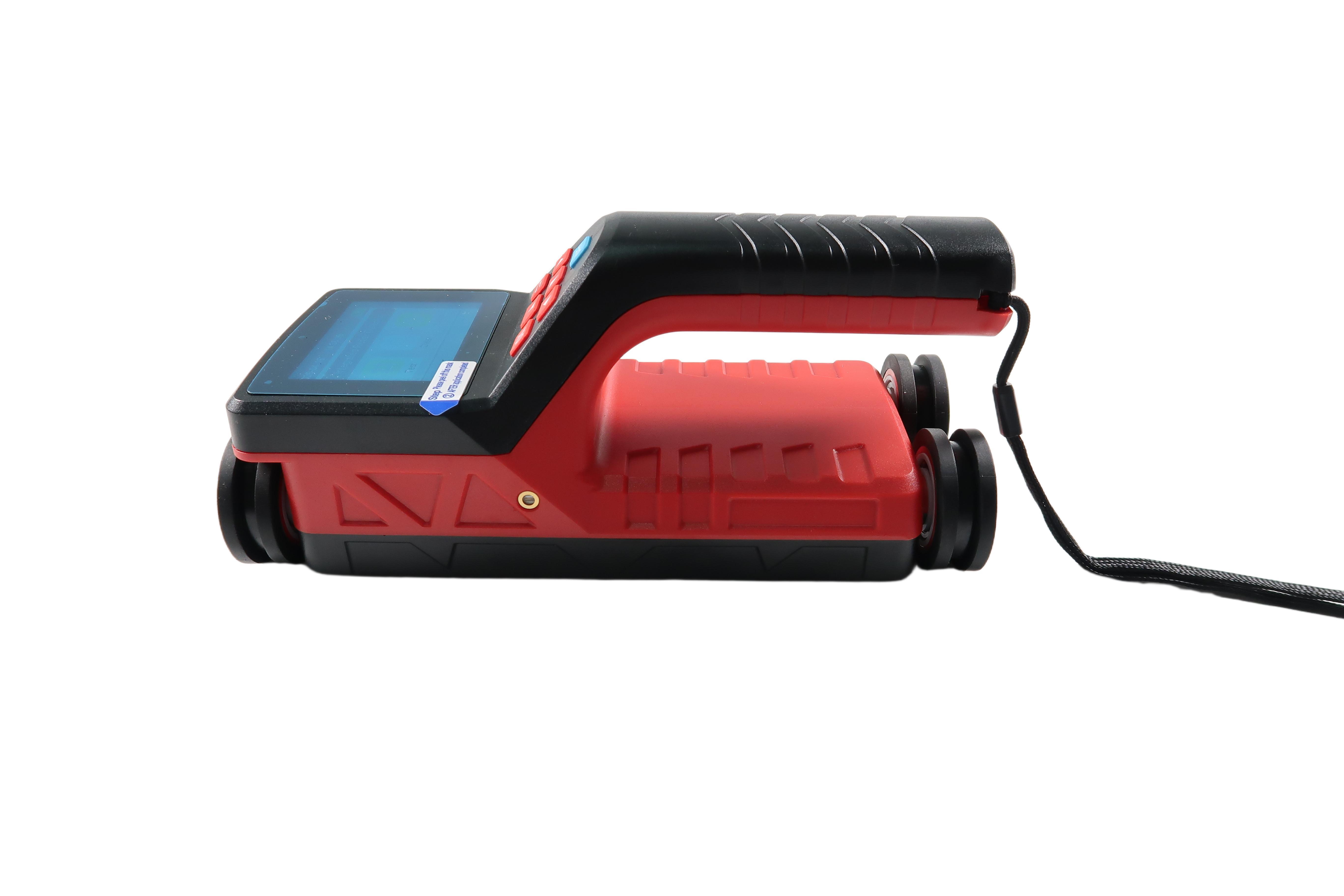

b)Left view:

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 1

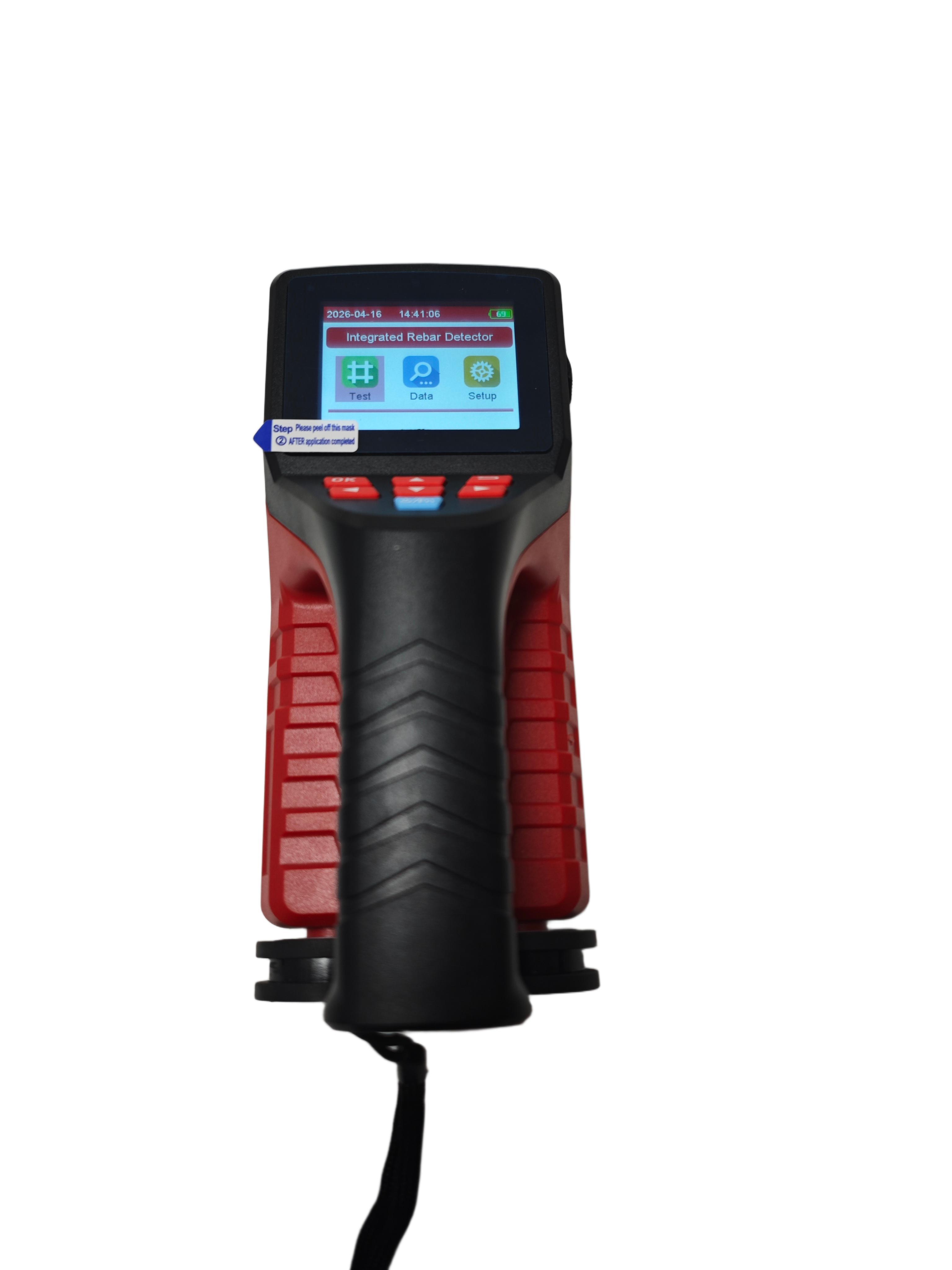

c)Right view:

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 2

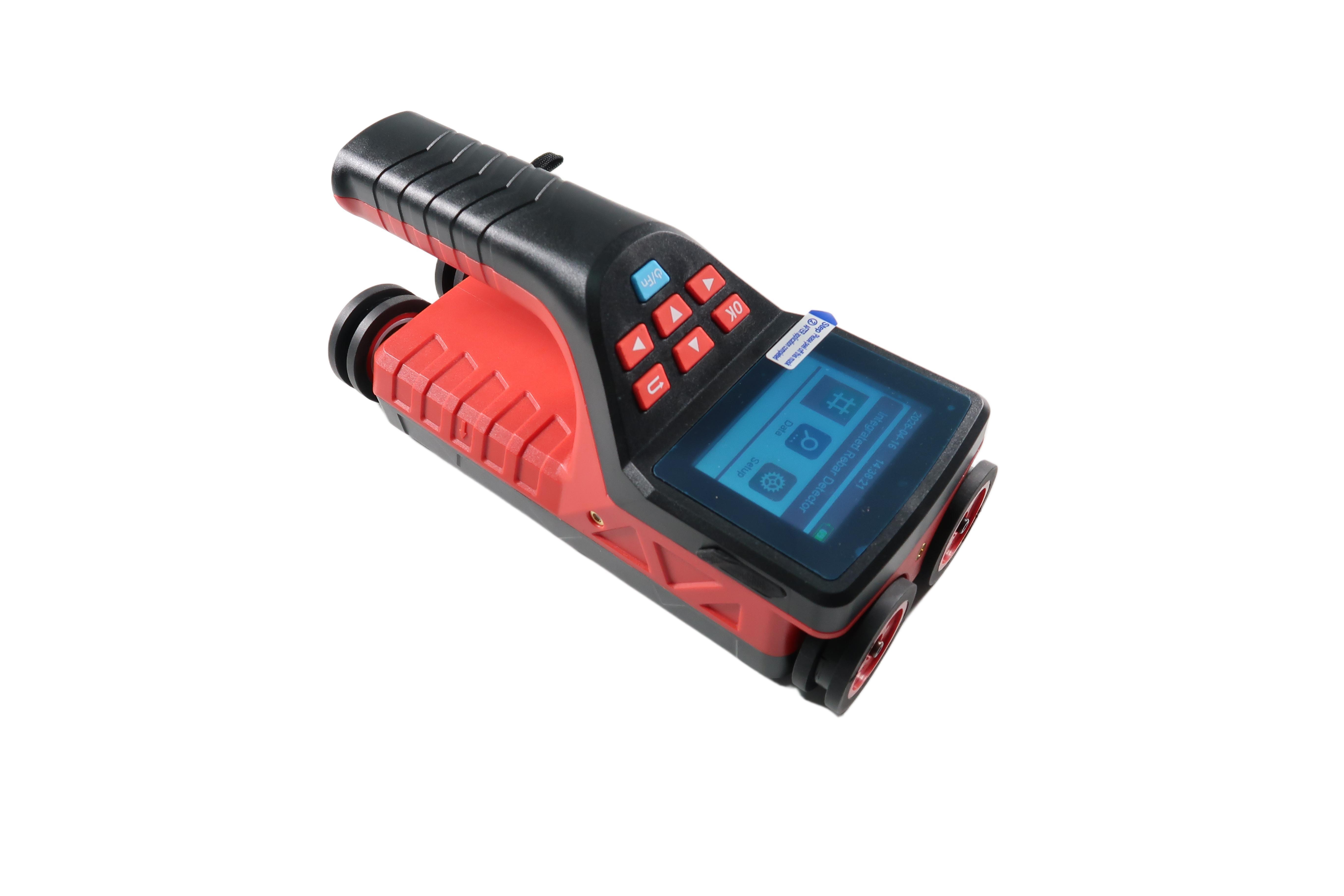

d)Bottom view
Figure 2.1 Schematic diagram of host appearance

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 3



1.1 Introduction

TMRS-710 Integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integratedstructure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger resolution.

1.2 Functions

1.2.1 Main Functions

1. Accurately measure the thickness of protective layer of rebar;

2. Locate the position, trend and distribution of steel bars;

3. Measure the protective layer of steel bar and estimate the diameter of steel bar;

4. Storage, view and transmission of detection data.

1.2.2 Special Functions

1. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the same screen;

2.The thickness measurement is completely realized. During the measurement process, pages can be turned back and forth, data and graphics can be viewed, and the test data can be deleted at any time.

3.Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires, easy to protect the wear and tear of the detector;

4. Analysis software can produce two-dimensional plan view and 3D three-dimensional view.

5. JGJ detection mode realizes 1-6 repeated tests of a single steel bar, and automatically calculates the average value.

1.2.3 Main Features

1. 2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly visible detection data;

2. Multi-coil structure design, faster, higher precision, stronger resolution;

3. Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.

4. With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is about 16 hours;

5. Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data;

6. The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;

7. Select configuration Standard test block which can be configured with special and unique design;

8. Using the host and sensor coil integrated design, compact size, light weight, easy to carry;

9. Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy drilling coring;

10. The instrument bag is shockproof, has a protective lining inside, and is equipped with a waterproof cover for easy carrying;;

11. Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing and generating complete report in PC.

1.3 Technical sheet

Mode TMRS-710
Applicable range of Rebar(mm) φ6~φ50
Protective layer thickness range(mm) Small range:1~80 Large range:5~185
Maximum Allowable Error of Protective Layer Thickness(mm) ±1 1~60
±2 60~100
±3 101~120
±5 121~160
±8 161~185
Applicability of Diameter Measurement (mm) ϕ 6~Ф50
Maximum Error of Diameter Measurement (Specification) ±1
Scanning mode Thickness model, JGJ Testing
Scanning range Borderless
JGJ Testing Achieve single point 1-6 measurements, automatically calculate the average
Data transmission mode USB wireless
Screen 2.8-inch High Resolution Color LCD Screen (320 x 240 pixels
Power supply Built in high capacity lithium battery
Set shutdown time 5min,10 min,15 min,30 min,60 min,90 min
Working hours ≥16h
Screen 320×240
Storage 200K Measuring point of steel bar
Communication USB interface
With error correction -3.0~+3.0(±0.5,±1.0,±1.5,±2.0,±2.5,±3.0)
Operation Silicone keypad
working temperature -10℃~+42℃
Size(mm) 219×92×106
Weight(Kg) 0.60(Battery included)













































1.4 Measurement interface

Integrated Rebar detector The measurement mode is shown in Figure 1 and 2

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 4


(1) Thickness model

Integrated Portable Borderless Rebar Detector In Concrete TMRS-710 5


(2)JGJ measuring interface

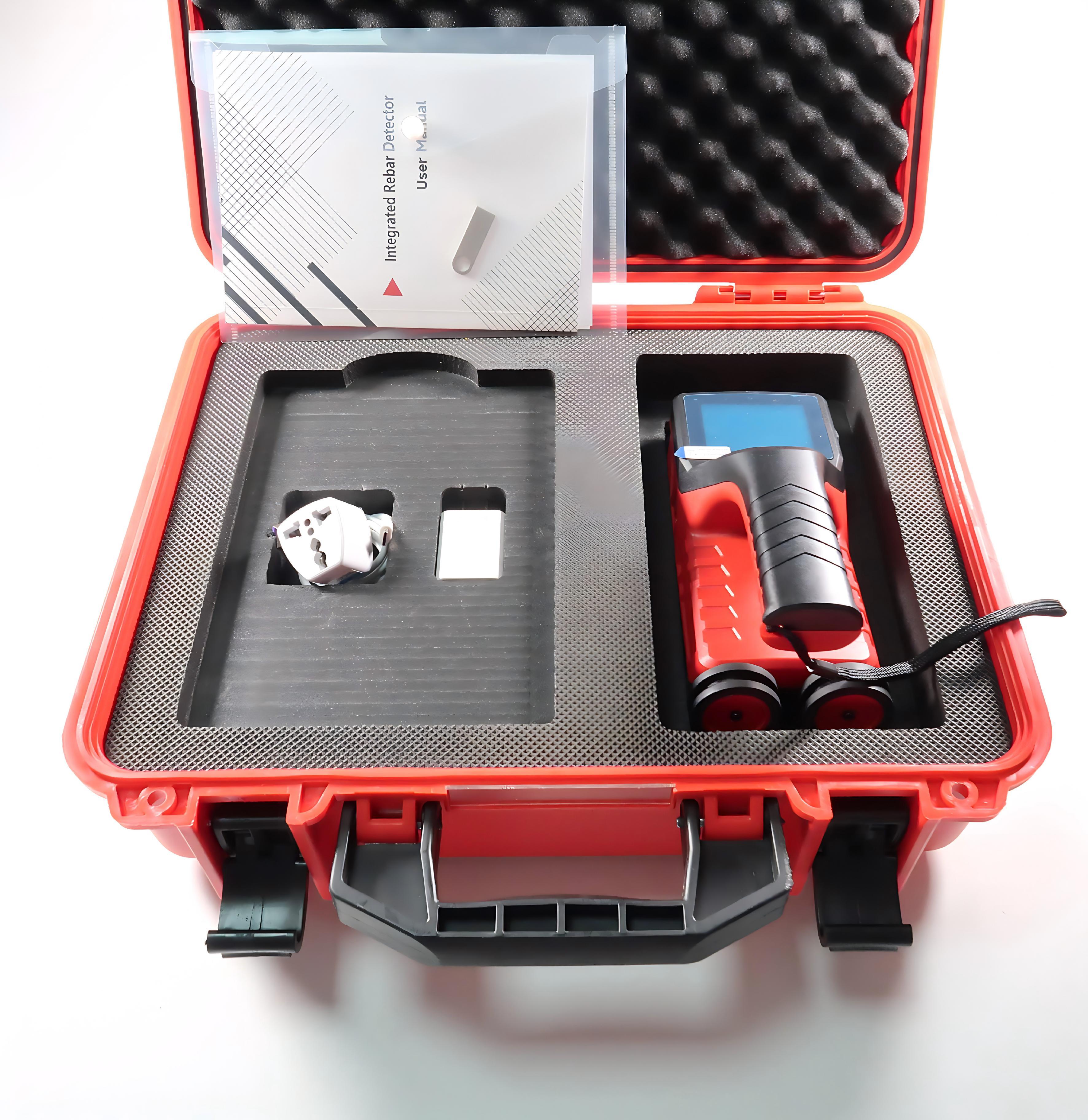

1.5 Standard Configuration

No. Name Unit Quantity Remarks
1 Product Host piece 1 /
2 Charger piece 1 /
3 USB Cable piece 1 /
4 User Manual piece 1 /
5 Producer Certificate piece 1 /
6 Warranty Card piece 1 /
7 Packing List piece 1 /
8 Software CD piece 1 Limited to Different Models
9 Product Suites/Box piece 1 /
10 crayon piece 1 /
11 Standard Block piece 1 Optional accessories
