TMTeck Made Automatic Brinell Hardness Tester / Hardness Test Rockwell Brinell Vickers

Basic Information
Place of Origin: China
Brand Name: TMTeck
Model Number: TMBS-3000ZX
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 6-10 Work days
Payment Terms: T/T, Western Union
Supply Ability: 10PCS/Two weeks
Detail Information
Measuring Range: 8-650HBW Max Height Of Sample: 280mm
Depth Of Throat: 150mm Hardness Reading: Touch Screen
Min Value Of Drum Wheel: 1.25μm Dwelling Time Of Test Force: 0~60S
Power Supply: 220V AC 50 Dimensions: 520*225*925mm
Lens/indenters With: Auto Turrent
High Light:

brinell hardness test apparatus


brinell hardness test equipment

Product Description

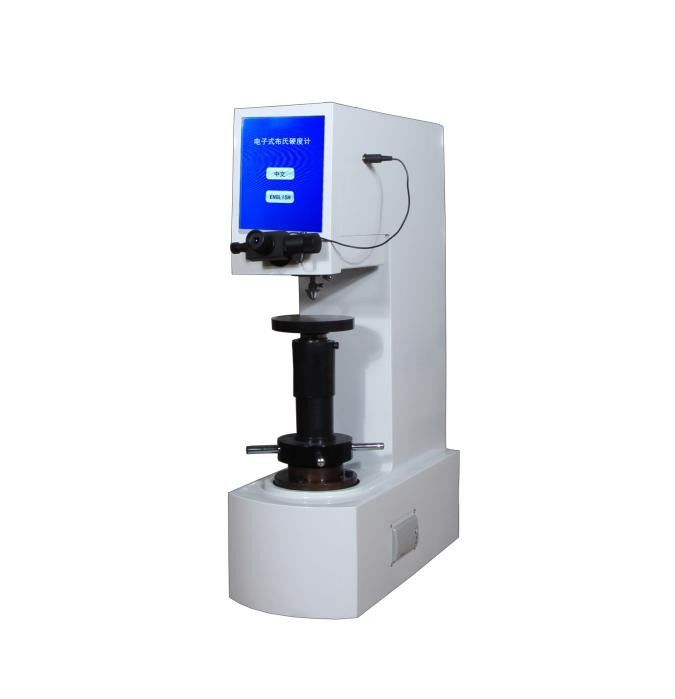

TMBS-3000ZX Electric Load Type Digital display Brinell Hardness Tester

TMTeck Made Automatic Brinell Hardness Tester / Hardness Test Rockwell Brinell Vickers 0

Features and Function:

* Integrated product of precise mechanical structure;

* Closed-loop control technology

* Automatic loading, dwell and unloading; electric reversing switch;

* The indentation can be directly measured on the instrument through the micrometer eyepiece;

* Key in the measured indentation diameter, hardness value will be displayed on the LCD screen;

* Hardness conversion between different hardness scales;

* Automatic test process, no human operating error;

* Large LCD display of testing process, easy operation;

* Novel shape, strong structure, high testing efficiency;

* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys. It’s also applicable to the hardness testing of hard plastic, bakelite and other non-metal materials. It has wide range of applications, suitable for precision measurement of planar plane, and surface measurement is stable and reliable.

Technical Parameter:

Measuring range: 8-650HBW

Test force: 612.9,980.7,1226,1839, 2452, 4903,7355, 9807, 14710, 29420N(62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf)

Max. height of test piece: 280mm

Depth of throat: 150mm

Hardness Reading: Touch Screen

Lens/indenters with: Auto Turrent

Microscope: 20X digital micrometer eyepiece

Min Value of drum wheel: 1.25μm

Diameter of tungsten carbide ball: 2.5, 5, 10mm

Dwelling time of test force:0~60S

Data output: In-built printer, RS232

Power supply: 220V AC 50

Dimensions: 520*225*925mm

Weight Approx. 160kg


Standard Accessories:

Main unit 1 20x micrometer eyepiece 1
Φ110mm Large flat anvil 1 Brinell standardized block 2
Φ60mm Small flat anvil 1 Power cable 1
Φ60mm V-notch anvil 1 Spanner 1
Tungsten carbide ball penetrator:Φ2.5, Φ5, Φ10mm, 1 pc. each User manual: 1
Anti-dust cover 1


Accessory box:


Indentation Automatic Measuring system (optional)

TMTeck Made Automatic Brinell Hardness Tester / Hardness Test Rockwell Brinell Vickers 1
