Fast Automatic Digital Brinell Hardness Testing Machine Encoder Auto Correct

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Model Number: TMBS-3000XP-Z
Minimum Order Quantity: 1 pc
Price: Negotiation
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,PayPal
Detail Information
Weight: 160kg Warranty: 2 Years
Power Supply: AC220± 5%, 50 ~ 60 Hz Color: White, Silvery
Size: 700 * 340 * 970 Mm Hardness Range: 3.18-653HBW
High Light:

fast digital brinell hardness testing machine


automatic digital brinell hardness testing machine


digital encoder automatic brinell hardness tester

Product Description

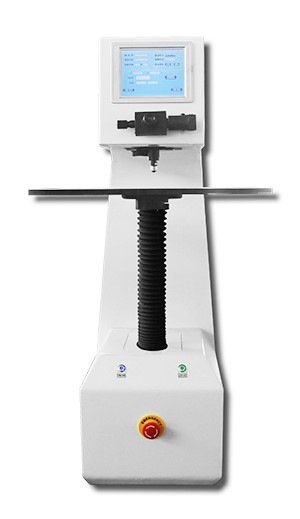

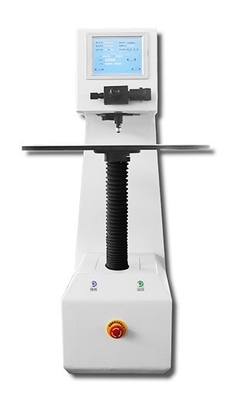

TMBS-3000XP-Z Automatic Brinell hardness tester



Product Introduction


  1.  Automatic closed-loop pressure control, automatic loading, automatic load;
  2.  Tester body designed in Italy, Ample sample space for large samples.
  3.  Wide force measurement range: from 62.5 to 3000 kgf, 10 brinell scales, can be customized;
  4.  Automatic turret, automatic loading and unloading, no need for auto focus after loading;
  5.  Z-axis automatic ascending and descending. After placing sample, push test button and the sample automatically ascends, after touching indenter, loading automatically starts, after unloading, turret automatically turns to sample location, z axis automatically focus and proceed testing.
  6.  Objective structured with digital encoder, calculate D1, D2 value, LCD directly displays hardness value and D1, D2 value.
  7.  Can calibrate according to standard block or length scale.
  8.  Test force can auto-correct using standard force meter.
  9.  Can convert to rockwell and vickers hardness value.
  10.  Touchscreen, easy operation, can input sample, name of testing personnel and other info.
  11.  Data can be saved as excel format in u disc for easy editing and processing.
  12.  railway, energy, steel, aviation, roller plants, tube rolling mills, foundries and so on.



Technical Parameters


Model TMBS-3000XP-Z
Brinell hardness scale HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force (Kgf)

62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N)

187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)

Carried standard BSEN 6506, ISO 6506, ASTM E10, GB/T231
Accuracy of test force 62.5~250Kgf≤1% 500~3000Kgf≤0.5%
Measuring device resolution 0.1 um
Indenter and lens Automatic replacement
Hardness range 3.18-653HBW
Hardness resolution 0.1 HBW
Dwell time 0 ~ 99 s
Data output LCD display
Data store The measured values are stored in EXCEL format on a usb flash disk
Maximum allowable specimen height 350 mm
Distance from indenter to wall 250 mm
size 700 * 340 * 970 mm
Weight 160 kg
Power supply

AC220± 5%, 50 ~ 60 hz




Operation Interface


  Fast Automatic Digital Brinell Hardness Testing Machine Encoder Auto Correct 0Fast Automatic Digital Brinell Hardness Testing Machine Encoder Auto Correct 1

                      Main interface                                                             Brinell scale




  Fast Automatic Digital Brinell Hardness Testing Machine Encoder Auto Correct 2Fast Automatic Digital Brinell Hardness Testing Machine Encoder Auto Correct 3

                     Conversion scale                                                       Hardness calibration




Standard Accessories



Item Quantity Item Quantity
Digital display test eyepiece        1 Large, medium and V type working table Each 1
Cemented carbide ball indenter (diameter: 2.5, 5, 10mm)        3 Standard hardness block (HBW10/3000, HBW10/1000,HBW2.5/187.5)        3
U disk        1 Touch pen        1
Power cord        1 Fuse cable(2A)        2
certificate,warranty        1 Instruction        1
