25 50 75 100mm 4 Step Test Ultrasonic Calibration Block

Basic Information

Place of Origin:	China
Brand Name:	TMTeck
Model Number:	step test block

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton, 0.5kg
Delivery Time:	4-6 work days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	50PCS/Two weeks

Get Best Price Contact Now

Detail Information

Product:

Step Test Block

Material:

1018 Steel, Stainless

Step Thickness:

25 50 75 100mm

Type:

NDT Accessories

Highlight:

step test ultrasonic calibration block

100mm ultrasonic calibration block

ultrasonic step test calibration block

Product Description

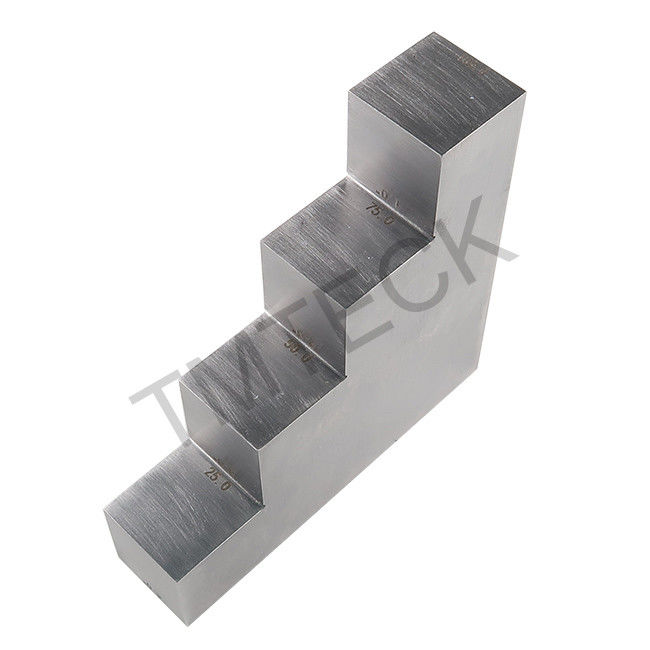

4 Step Thickness Meter Calibration Block 1018 Steel Metric 25 50 75 100mm

INCLUDED MAKER CERTIFICATION AND ABS PLASTIC CASE

MATERIAL :1018 Steel or 304 stainless steel

Thickness:25mm 50mm 75mm 100mm size: 80X20mm

Tipsy Step Block
Special Step Block for thickness and linearity calibration. This versatile block
contains eight (8) steps. Set it down on one side and get the 1.0, 2.0, 3.0 and 4.0"
steps. Then "Tip" it over and get the 1.5, 2.5, 3.5, and 4.5" steps. Step faces
measures 1.00" x 1.00". Manufactured in accordance with TMTeck drawing . Step thickness tolerance is ±0.002". Metric version with steps measuring
25.0, 37.5, 50.0, 62.5, 75.0, 87.5, 100.0, and 112.5mm also available. Step faces
on metric block measure 25.0mm x 25.0mm. Our new Universal Tipsy Block
design combines both measurement scales on one handy block. Stand it up to
calibrate on the 1.0, 2.0, 3.0, and 4.0" thicknesses; then "Tip" it over to get the
25.0, 50.0, 75.0, and 100.0 mm steps.

Package including

1 unit 1018 Steel 4 steps Calibration Test Block

1 certification

1 suitcase
