USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE

Basic Information
Place of Origin: China
Brand Name: TMTeck
Certification: CE
Model Number: TM8880
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton 163.8x58.1x88.3mm 5.2KGS
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 50pcs/two weeks
Detail Information
Measuring Angle: 20",60°,85° Measurement Of Spot Size: 20°:10×10 Mm 60°:9×15 Mm85°:5 × 38 Mm
Indication Error: 0.0~99.9 GU: 1.5 GU100~2,000 GU:1.5% Of Indication Measuring Range: 20°:0.0~2,000 Gu 60°: 0.0~1,000 Gu 85°:0.0~160 GU
Resolution Resolution Ratio: 0 ~ 99.9 GU:0.1 GU100~2 000 GU:1 GU Warranty: 2 Years
Weight: 520g Interface Language: Chinese And English
Port: USB 2.0, Bluetooth Standard Edition 2.0
High Light:

usb 2.0 gloss meters

,

tm8880 gloss meters

,

usb gloss meter 60 degree


Product Description

TM8880 Gloss meters/gloss measurement instrument 20 60 85

Gain the first- class China Metrology Accreditation.

Chinese and English switchover operations.

To meet the measurement of the gloss in any case.

Multi-angle precise test and stable property.

Shape design with the international fashion.

Unique technological means and guarantee the favorable repeatability guaranteed.





Professional design standard and powerful functional configuration

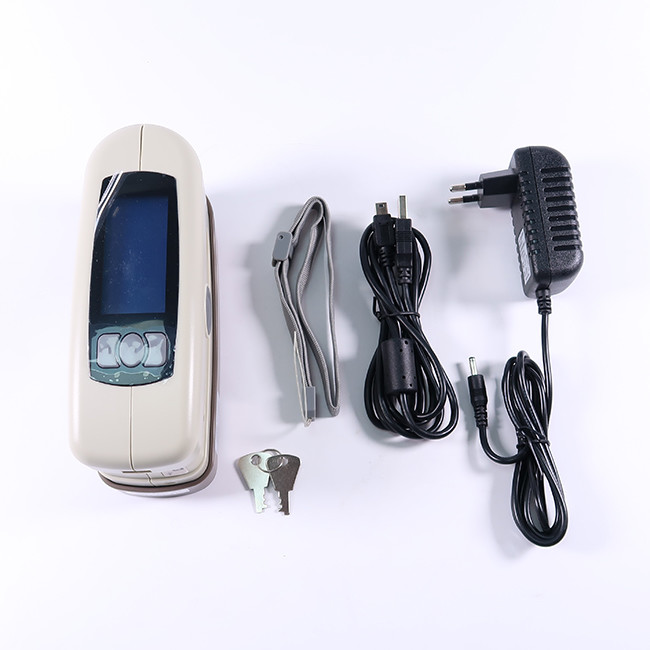

 USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 0



This instrument conforms to the Test Conditions stated in lSO2813, and meets the test requirements under different gloss conditions. With the powerful functions, large data storage is available, and it can allocate the storage data structure freely. It stores the mass data backup through SD card or conducts the data backup by adopting PC connection. The overvoltage protection function realizes the automatic power-off under the abnormal situation of the voltage, for fear of the damage of the instrument. The function of updating at any time by the instrument operational software facilitates the updating maintenance of the software, which can guarantee that the operational software keeps the latest version all the time.





Measuring Technology



 USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 1

  • Unique technological means, and guarantee the favorable repeatability guaranteed
  • Conform to Test Conditions stated in ISO2813 and to measure the gloss data from20°, 60° and 85° these three angles at the same time.
  • PC software, data statistical management
  • Low power, full data hint
  • Mass data storage of SD card
  • USB and Bluetooth (optional) data connection
  • To connect the mini-printer for printing
  • Fit for enterprise internal and external gloss evaluation and data control





Technical Parameters



Measuring angle 20",60°,85°
Measurement of spot size 20°:10×10 mm 60°:9×15 mm85°:5 × 38 mm
Storage 100 sets of standard samples, storing 100 sets of testing samples, under each standard sample, with free allocation
Conformity ISO 2813,ISO 7668,ASTM D 523,ASTMD 2457,DIN 67 530,JIS Z8741,BS 3900,BS 6161
Measuring time 0.5 seconds
Measuring range 20°:0.0~2,000 Gu 60°: 0.0~1,000 Gu 85°:0.0~160 GU
Measuring mode Sample measuring, statistical measuring, continuous measuring. and basic measuring
Resolution ratio 0 ~ 99.9 GU:0.1 GU100~2 000 GU:1 GU
Power Source Management The function of automatic backlight off, Automatic power- off
Repeatability 0.0~99.9 Gu: 0.2 GU 100~2,000 GU: 0.2% of indication
Interface Language Chinese and English
Power Source External direct current +5V power adapter / USB/ Four 1.5V alkaline batteries or nickel- metal hydride batteries
Indication error 0.0~99.9 GU: 1.5 GU100~2,000 GU:1.5% of indication
Port USB 2.0, Bluetooth standard edition 2.0
Weight 520g
Size 163.8x58.1x88.3mm





USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 2

USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 3

USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 4

USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 5

USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 6

USB 2.0 Tm8880 Gloss Meters 20 60 85 Degree CE 7
