| Measuring Range: | 0~1000Gu | Stability: | <0.45Gu(0~99.9Gu), 0.5%(100~1000Gu) |
|---|---|---|---|
| Value Error: | <1Gu(0~99.9Gu), 1%(100~1000Gu) | Projecting Angle: | 60° |
| The Measuring Window Size: | ф4.5mm | Power: | 3V(1.5(AAA)*2) |
| Working Temperature: | <85% Without Condensed Dew | Weight: | 100g |
| Highlight: | portable gloss meter GTM8886,stylish gloss meter for surfaces,lightweight gloss meter with warranty |
||
Brief Introduction

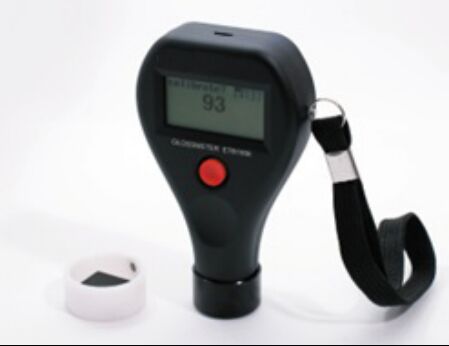

The technology parameter of TM8886 Glossmeter is complete according with state standard GB9754-88,GB9966.5 and international standard ISO2813, all items of the performance meet the first class work requirements of state JJG696-2002 (Lens Luster Degree Instrument Measure Test Regulations) .
Applications
Instrument Characteristics
Technical Parameters
| Model | TM8886 |
| Measuring Range | 0~1000Gu |
| Stability | <0.45Gu(0~99.9Gu), 0.5%(100~1000Gu) |
| Value error | <1Gu(0~99.9Gu), 1%(100~1000Gu) |
| Projecting angle | 60° |
| The Measuring window size | ф4.5mm |
| Power | 3V(1.5(AAA)*2) |
| Working Temperature: | 4-40℃ |
| Working humidity | <85% without condensed dew |
| Dimension | 115*65*25(mm) |
| Weight | 100g |
| Measuring time tracking | Yes |
| Memory | Yes |
| Communication | USB interface |
| Color | Black |
| Display instructions |
“GU”--- luster unit “calibrate”---calibration “clear save”---clear the save datas. Change Ca”l--- Modify the calibration value ”Set time”---Modify the time |
| Note:The measurement aperture is 4.5 mm, and the measured area must be larger than 4.5 mm. | |
![]()
