Tmck-2 Concrete Structure Crack Width Microscope Measurement Instrument Dc12v

Basic Information
Place of Origin: China
Brand Name: Tmteck
Certification: CE
Model Number: TMCK-2
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 pcs/1 Month
Detail Information
Max Detection Range: 0-8mm Accuracy: Better Than 0.01mm
Magnification: 40times/20times/13times/10times, Optional Warranty: 2 Years
High Light:

concrete structure crack width microscope


dc12v crack width microscope


concrete structure crack width measurement instrument

Product Description

crack width instrument/measuring device/measurement instrument/crack width microscope and concrete crack meter


Product Description

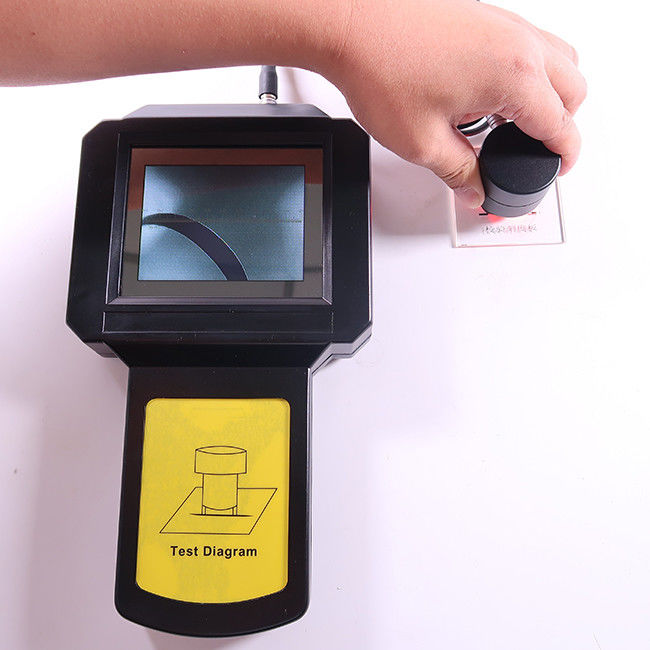

TMCK-2 crack width measurement instrument a new professional concrete structure measurement instrument for the crack

width and the microcosmic defects on surface, against the traditional crack microscope inconvenient for observation.


Mainly used for testing the crack width of bridge, channel, concrete plate, metallic surface.


High light supper lager LCD, display the crack image’s edge clearly and read conveniently

The newest technology of formation of image of electronic, recover the original crack actually.

The microcosmic camera measurement probe is made of totally stainless steel, resistance to wear and drop




Amplified multiple 40(standard)50(optional)
Test range 0.02—2.0mm
Interpolation 0.01mm
Voltage 12VDC (8 recharger battery)
Size 270×15×50(mm);
Measurement probe 40×40×60(mm);
Weight 800g

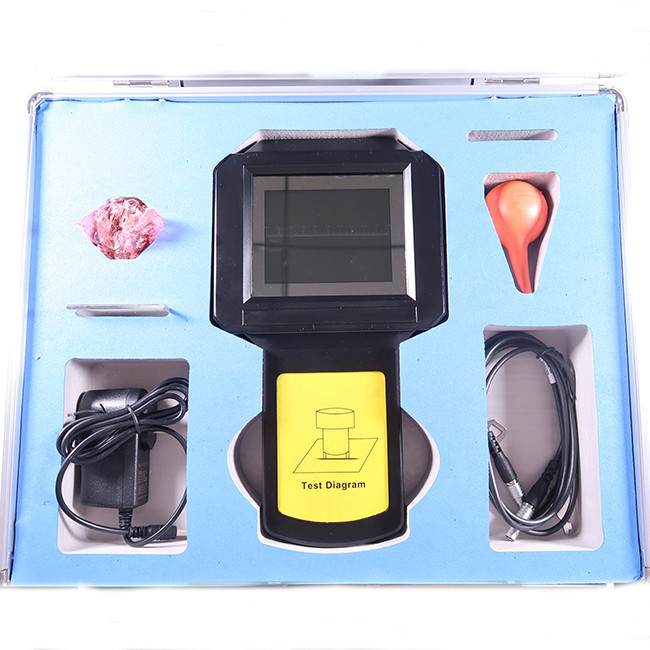

Standard configuration:

High light supper lager LCD

Microscopic camera measuring probe

Signal transfer line

Standard scale plate calibrated by MIN
