Quick Direct Display Digital Hardness Values With TSW-20 Series Webster Hardness Tester

TSW-20 series digital display Webster hardness tester Aluminum alloy Webster hardness tester (also known as clamp hardness tester) is a portable instrument that can quickly test the hardness of aluminum alloys on site. The test is quick and easy, just one card, and the hardness value is displayed directly. Determine whether the workpiece has heat treatment, check the effect of heat treatment; determine whether the workpiece is processed from an inappropriate alloy; test long, heavy workpieces or assemblies that are inconvenient to send to the laboratory; used for production inspection, acceptance inspection and quality supervision inspection ; Mainly used to measure the hardness of aluminum alloys (1100~7075 series).

Features

Aluminum alloy Webster hardness tester is suitable for testing aluminum alloy profiles, pipes and plates, especially suitable for quick, non-destructive qualification inspection of product hardness on production sites, sales sites or construction sites; it can quickly and directly display the hardness tester ; Webster hardness value can be converted into commonly used Vickers, Rockwell, Brinell hardness and tensile strength values;

Three, technical parameters.

1. Range: 0-20HW

2. Accuracy: ±0.5HW

3. Display resolution: 0.1HW

4. Measuring range: equivalent to 20~110HRE

Specification:

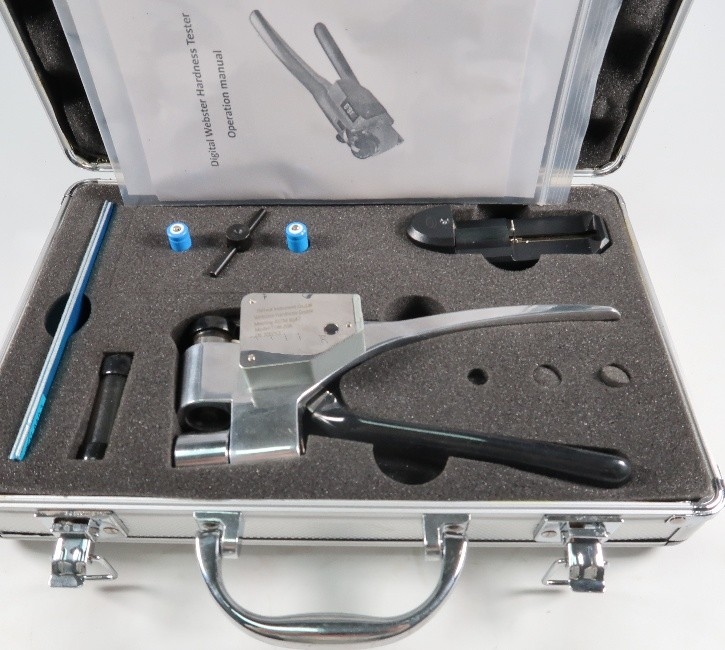

Host 1 set

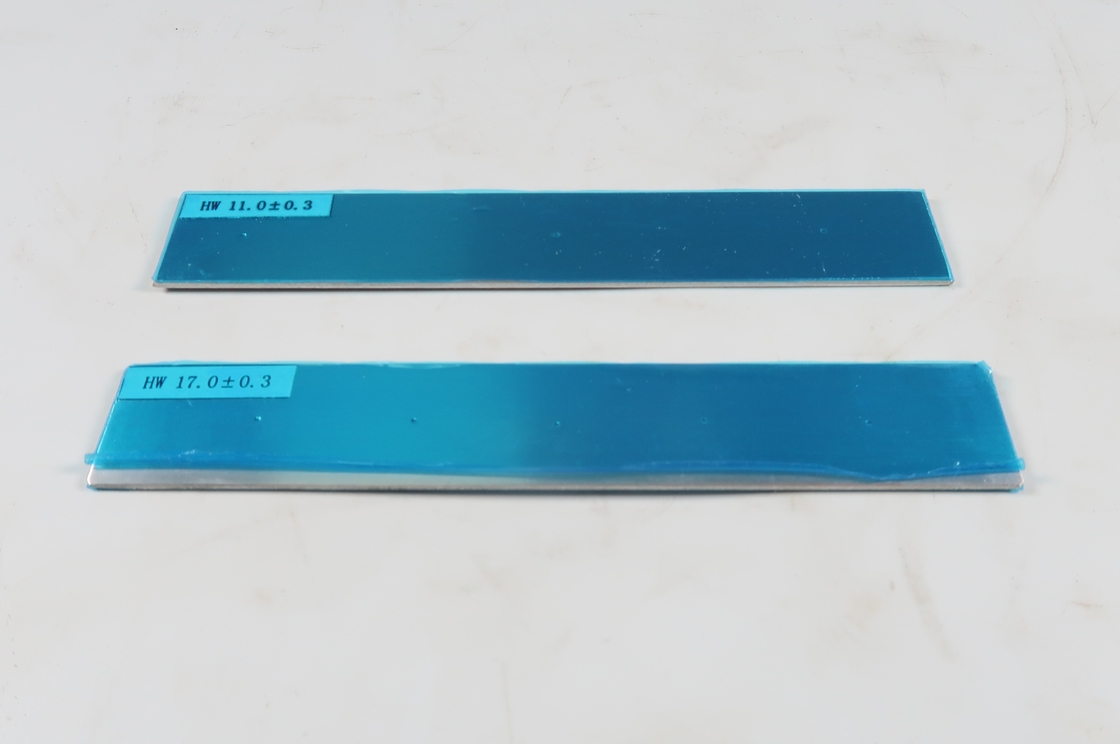

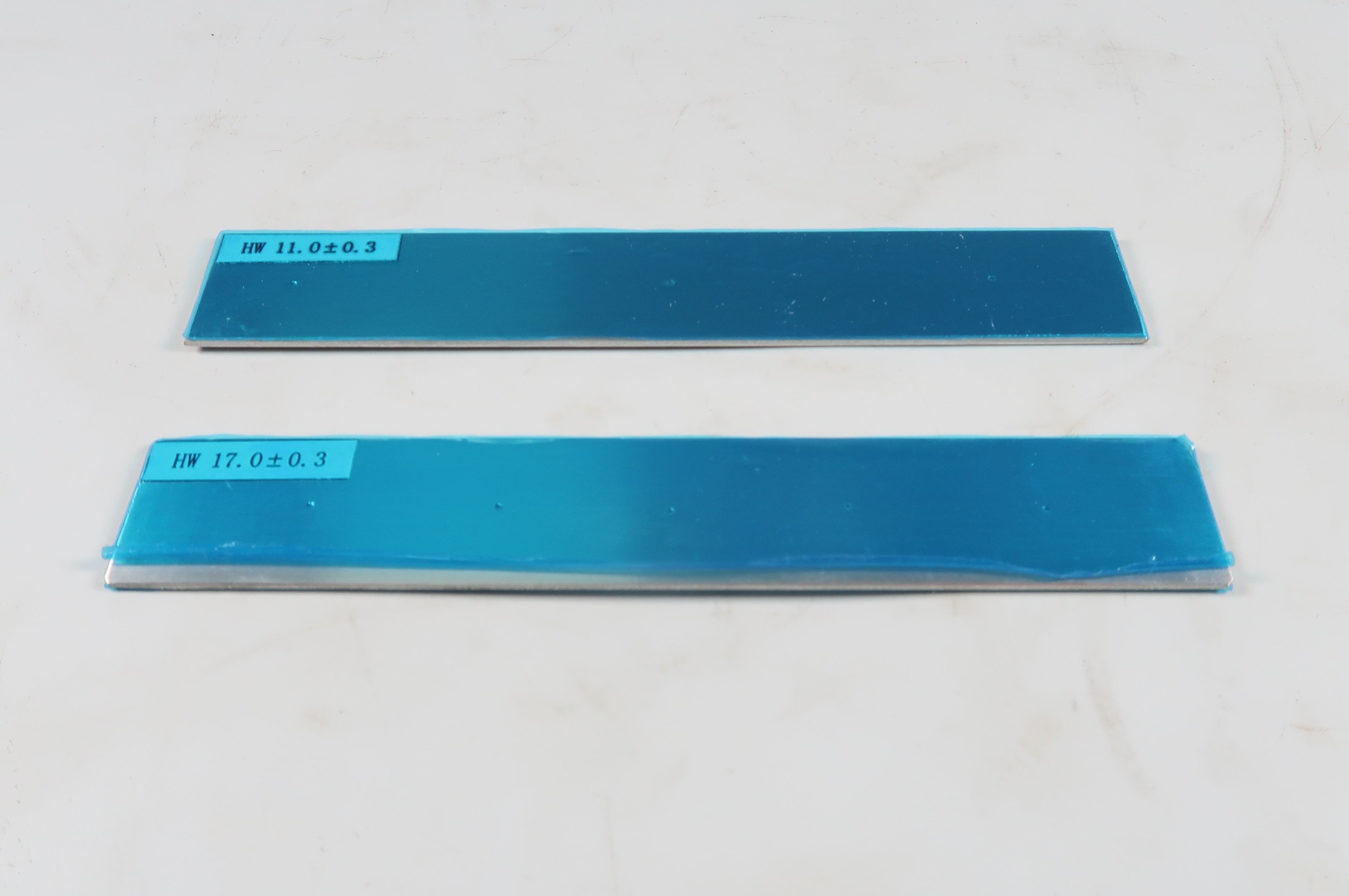

Standard hardness block 2 pieces

Spare pressure needle 1 stick

Correction wrench 1

Charger 1

Rechargeable Battery 1

instrument case 1

Manual 1

TSW-20 series Webster hardness tester instrument selection:

Webster hardness tester optional accessories:

1. Press the needle

2. Standard hardness block
