Phased Array Ultrasonic Test Blocks Aws Pacs® Block - 0.060" 1.5mm Holes Material 1018 Steel

Basic Information

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	PACS

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union,PayPal, L/C
Supply Ability:	100pcs/month

Get Best Price Contact Now

Detail Information

Product:

AWS PACS Block

Material:

1018 Steel, Aluminum, Stainless

Weight:

3.5kg

Type:

NDT Accessories

Highlight:

1018 Steel Ultrasonic Test Blocks

AWS PACS® Ultrasonic Test Blocks

1.5mm Holes Ultrasonic Test Blocks

Product Description

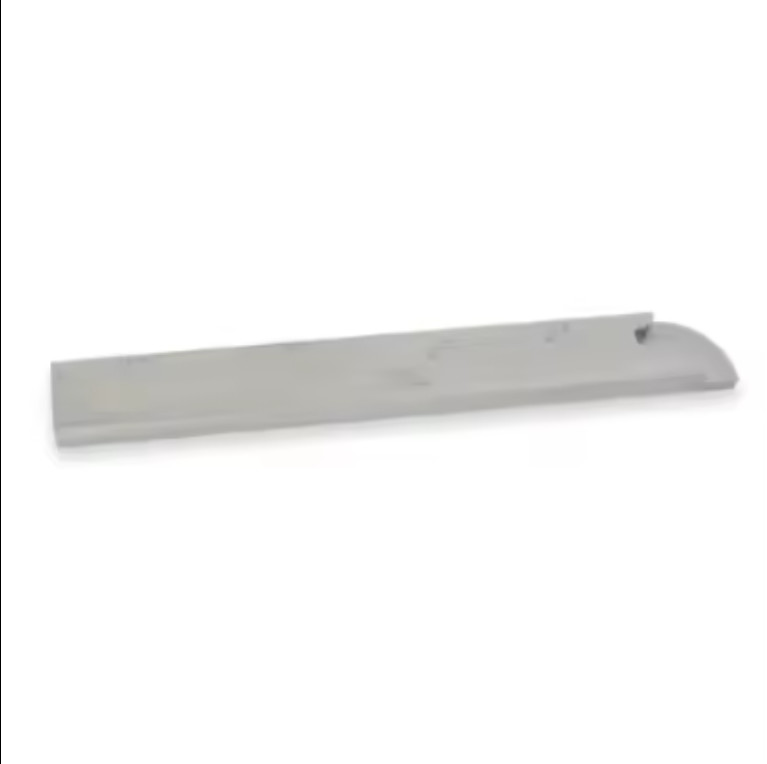

Phased Array Ultrasonic Test Blocks AWS PACS® Block - 0.060" (1.5mm) Holes

Special Version of the Phased Array Calibration Standard (PACS™) with 0.060" diameter Side-drilled Holes for use with AWS requirements. Block is used for angle beam verification, probe angle exit point, calibration for wedge delay, sensitivity, DAC/TCG for thicknesses up to 2".

Inch

The three radii (0.500, 1.000, 2.000") allow for exit point verification, velocity, and sound path calculations. Block contains five holes at 0.060" diameter drilled through the 1.000" width, located at 0.100, 0.200, 0.400, 0.600, 0.800, 1.200, 1.400, 1.600, 1.800, and 1.900" from the respective scanning surface. Generous hole spacing eliminated "ghost" images from adjacent holes. Also includes an engraved scale from 30° to 70° associated with the 0.800" hole for beam angle verification.Dimensions: 18.0" x 2.0" x 1.0"

Materials:1018 Steel

Package Including:

1 calibration block

1 suitcase

1 certificate
