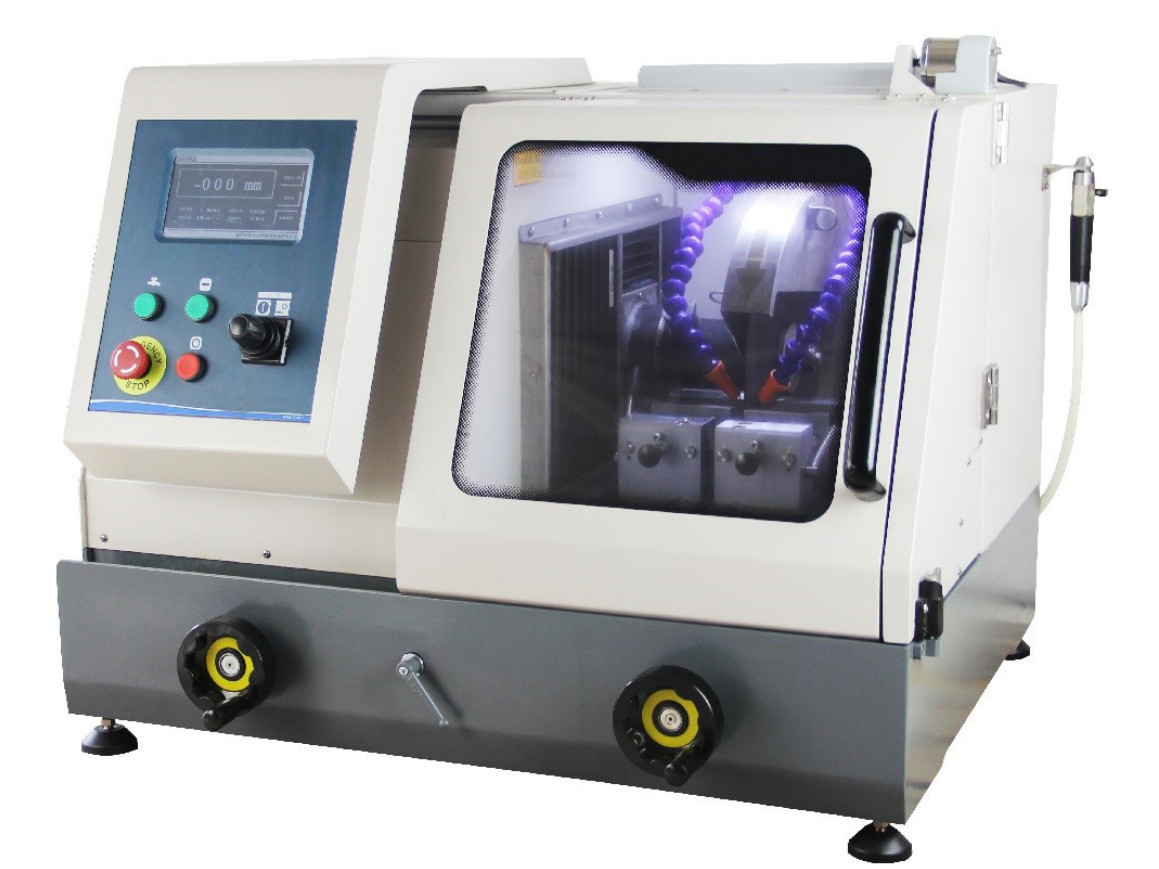

380v 2200RPM Metallographic Cutting Machine Efficient

Basic Information

Place of Origin:	China
Brand Name:	TMTeck
Model Number:	TMTECK-S061

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	1pc/carton box
Delivery Time:	7-15 days
Payment Terms:	T/T, Western Union,paypal
Supply Ability:	100pcs/month

Get Best Price Contact Now

Detail Information

Input Voltage:	380v/50HZ	Feed Speed:	0.1-15mm/m
Spindle Speed:	2200RPM	Cut-off Wheel:	Φ350×2.5×32mm
Cutting Capacity(Max):	Φ100mm	Max Table Moving Distance:	145mm(Only Y Axis For Auto&Manu)
Spindle Z Lifting Range:	50mm	Input Power:	3.3kw
Cutting Motor:	3kw	Dimensions:	960mm×855mm×735mm
Table Dimension:	330mm×280mm
Highlight:	380v Metallographic Cutting Machine , 2200RPM Metallographic Cutting Machine , Efficient Metallographic Cutting Machine

Product Description

Application

It is suitable for cutting precision various materials with strong ability, high reliability, easy operation. The machine consists of machine body, electrical control tank, super cutting room, and cooling system, supporting more economical and convenient cutting models. Meanwhile the user can define cutting models. Meanwhile the user can define cutting speed and track. At the same time, this machine have following features, such as self-test, security. Running tips in order to improve the quality of cutting sample. It is one necessary equipment in laboratory of colleges. Research institutes and factories.

Technical Parameters

Model	TMTECK S061
Input voltage	380v/50HZ
Feed speed	0.1-15mm/m
Spindle speed	2200RPM
Cut-off wheel	Φ350×2.5×32mm
Cutting capacity(Max)	Φ100mm
Max Table Moving Distance	145mm(Only Y axis for Auto&Manu)
Spindle Z lifting range	50mm
Input power	3.3kw
Cutting motor	3kw
Dimensions	960mm×855mm×735mm
Table Dimension	330mm×280mm
Net weight	285kg
optional	Cabinet / Transversal worktable (X axis)
