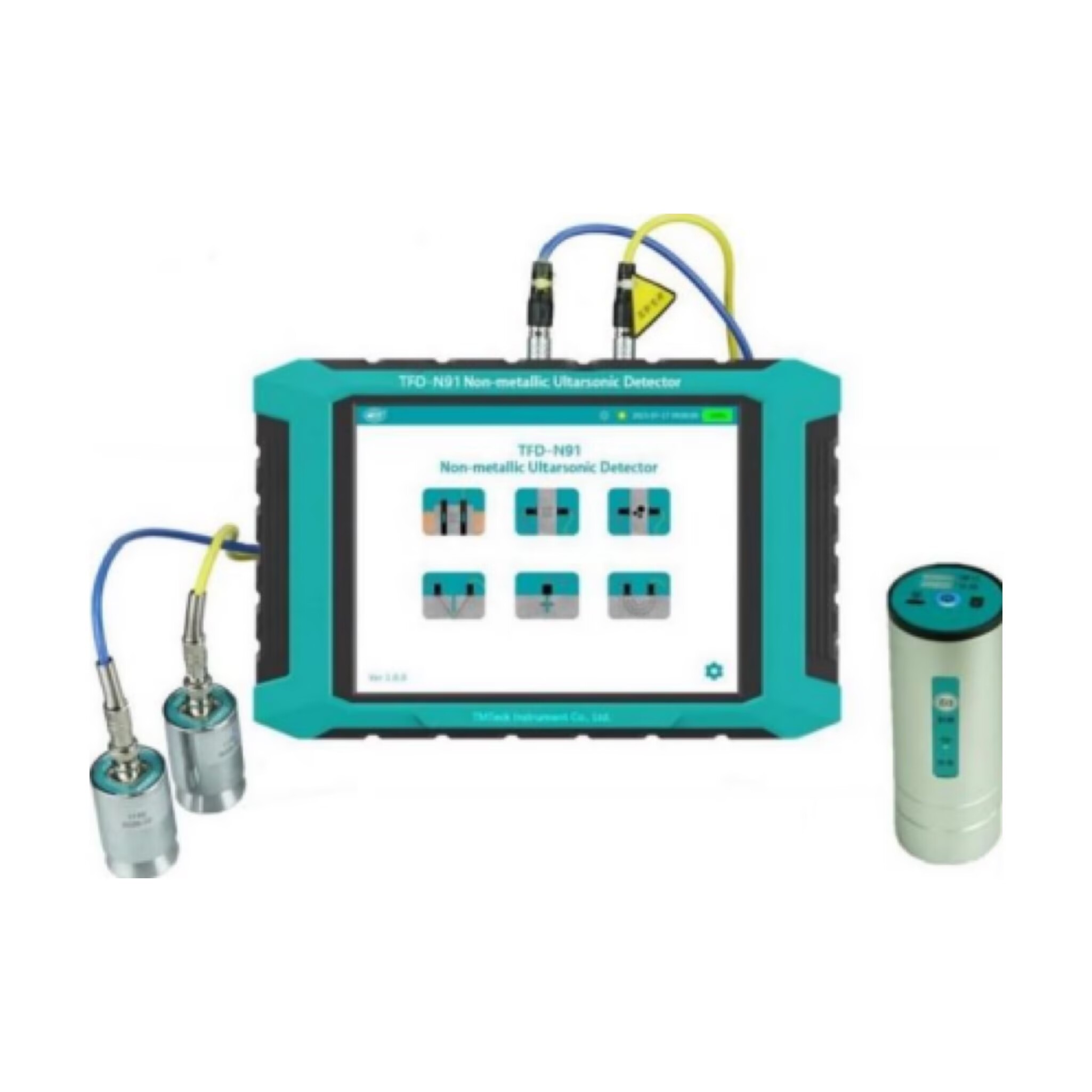

Name: TFD-N91 Non-metallic Ultrasonic Tester with Wireless Cloud Transmission 10.1-inch TFT Color LCD and Built-in Lithium Battery
Brand: TMTeck Instrument Co., Ltd
SKU: TFD-N91
Availability: InStock

Detail Information

Acoustic Time:	0.05	Frequency Bandwidth:	1~500
Gain Accuracy:	0.5dB	Power Supply:	Built-in Lithium Battery
Temperature Range:	Power Supply	Measuring Rang:	0~10mm

Product Description

TFD-N91 Non-metallic Ultrasonic Tester

Product Overview

The TFD-N91 Non-metallic Ultrasonic Tester utilizes ultrasonic transmission methods for comprehensive testing applications including foundation pile detection, continuous wall integrity assessment, structural concrete analysis, and mechanical property evaluation of non-metallic materials.

Key Applications

Rapid and continuous detection of foundation piles
Continuous wall integrity assessment
Structural concrete compressive strength detection
Structural concrete crack depth and width detection
Concrete pavement bending resistance detection
Mechanical properties detection of non-metallic materials

Product Features

New upgraded wireless cloud transmission function (optional)
Integrates six functions: pile measurement, strength measurement, defect measurement, width measurement, depth measurement, and road surface bending resistance measurement
Stable performance with powerful functionality for engineering testing, teaching, and scientific research
Semi-reflective, high-brightness TFT color LCD display
Full touch screen operation for simple and reliable use
Large memory capacity with working time exceeding 10 hours
Compatible with digital rebound tester probe for ultrasonic rebound comprehensive method strength measurement
USB data transfer and software upgrade capability
Powerful dedicated analysis software for data processing, reporting, and printing
Chinese and English interface switching for international use

Applicable Standards

Technical Specifications for Building Foundation Pile Testing - JGJ 106-2014

Technical Specifications for Dynamic Measurement of Highway Engineering Pile Foundations - JTG/TF81-01-2004

Technical Regulations for Pile Testing of Railway Engineering Projects - TB 10218-2019

Building foundation testing specifications - DBJ/T 15-60-2019

Shenzhen Building Foundation Pile Testing Regulations - SJG09-2020

Technical Specification for Ultrasonic Detection of Concrete Defects - CECS 21:2000

Technical Specification for Testing Concrete Strength by Ultrasonic Rebound Comprehensive Method - CECS 02: 2020

Railway Engineering Structure Concrete Strength Test Code - TB 10426-2019

Technical Specification for Entity Inspection of Concrete Structures in Water Transport Engineering - JTS 239-2015

Technical Specifications for Strength Testing of High-Strength Concrete - JGJ/T294-2013

Technical Specification for Testing the Strength of Pumped Concrete by Rebound Method and Ultrasonic Rebound Combined Method - DBJ/T01-78-2003

Technical Specification for Compressive Strength Testing of Structural Concrete - DG/TJ08-2020-2007

Technical Specification for Testing Structural Concrete Strength by Ultrasonic Rebound Comprehensive Method for Highway Engineering - DB51/T1996-2015

Technical Specification for Testing Concrete Compressive Strength by Ultrasonic Rebound Comprehensive Method - T/CECS02-2020

Technical Specifications for Pile Testing of Highway Engineering - JTG/T 3512-2020

Technical Specifications for Testing and Inspection of Water Transport Engineering Foundations - JTS237-2017

Technical Specifications

Parameter	Specification
Product Model	TFD-N91 Non-metallic Ultrasonic Detector
Main Control Unit	Built-in A8 industrial control motherboard
Display	10.1-inch, high-brightness TFT color LCD capacitive
Operation	Touchscreen
Storage	Built-in electronic hard disk (≥8GB) + large capacity
Data Transmission	USB transmission, wireless cloud transmission
Acquisition Mode	Single-channel manual point-by-point acquisition
Number of Channels	1 transmit + 1 receive
Trigger Mode	Signal trigger
Sampling Period (μs)	0.05~409.6 multiple options
Acoustic Time	0.05
Sound Time Range (μs)	±1677700
Width Measurement	Measuring range: 0~10mm
Dynamic Range (dB)	146
Frequency Bandwidth	1~500
Receiving Sensitivity	≤10
Gain Accuracy (dB)	0.5
Emitting Voltage (V)	125, 250, 500, 1000 four gears adjustable
Communication	USB
Working Hours (h)	≥8
Power Supply	Built-in lithium battery
Work Environment	Temperature: -10℃~+40℃, Humidity: <90% RH
Host Size (mm)	305 * 195 * 58
Project Box Size (mm)	480 * 165 * 390
Product Weight	8.5 KG

Instrument Composition

Standard Configuration

Serial No.	Item	Quantity
1	Project Box	1
2	Host	1
3	Planar Transducer	2
4	Slit-width Camera	1
5	Touch Pen	1
6	10-meter Signal Line	2
7	Camera Signal Cable	1
8	Check Plate	1
9	Host Charger	1
10	Host Bracket	1
11	Backpack Straps	1
12	Program Disk	1
13	Operation Guide	1
14	Product Certificate, Warranty Card, Packing List	1 set

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE
Model Number:	TFD-N91

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10 pieces within one week
