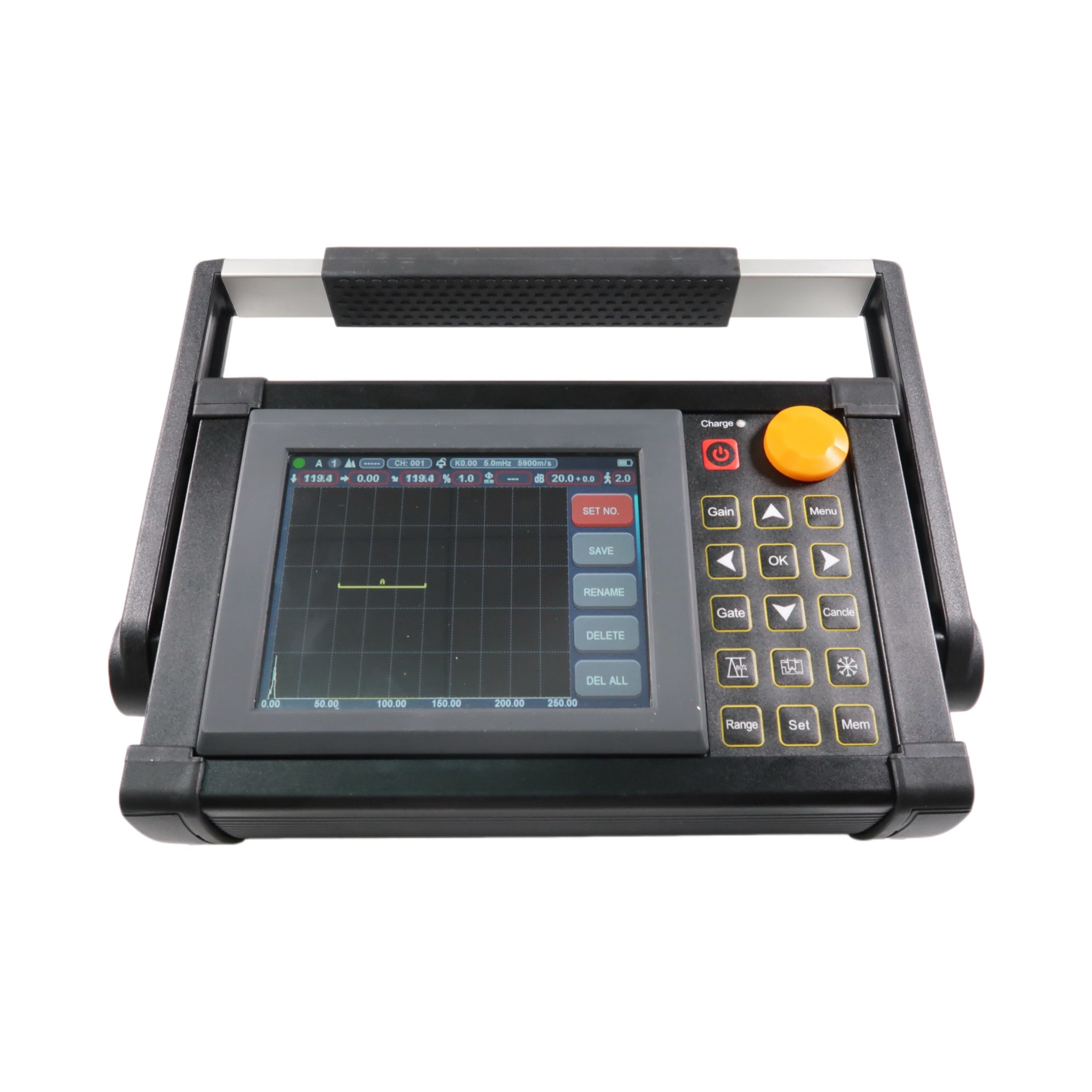

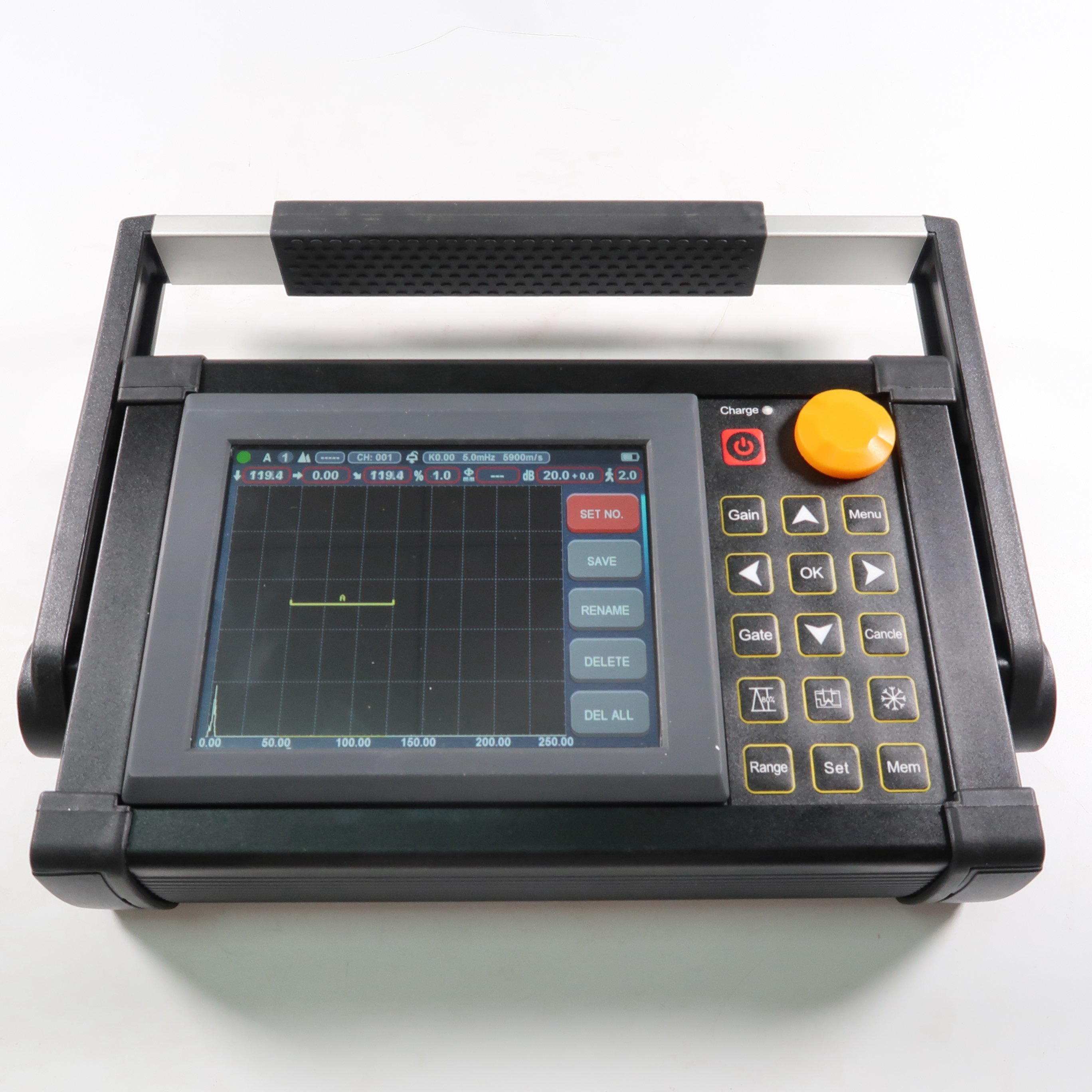

Name: TFD320PLUS Digital Ultrasonic Flaw Detector with IP65 DAC AVG TCG and Color B Scan for NDT UT Testing
Brand: TMTeck Instrument Co., Ltd
SKU: TFD320PLUS
Price: Negotiable USD
Availability: InStock

Detail Information

Services:	OEM, ODM, OBM	Range:	0-10000 Mm ,at Steel Velocity
Material Velocity:	100～20000 M/s	Pulse Repetition Frequency:	20-2000Hz
Pulse Energy:	70V,100V,200V, 300V, 400V, 500V Selectable	Display Delay:	-20 To 3400 µs
Highlight:	IP65 Digital Ultrasonic Flaw Detector , DAC AVG TCG NDT UT Testing Instrument , Color B Scan Ultrasonic Thickness Gauge

Product Description

TFD320PLUS Digital Ultrasonic Flaw Detector IP65 NDT UT Testing Instrument with DAC AVG TCG Color B Scan

Key Features

User-friendly dialog interactive interface for calibration and curve creation
Comprehensive toolset including DAC, AVG, TCG, and AWS
Pulse Repetition Frequency: 20-2000Hz with precise adjustment for high-speed scanning
High signal-to-noise ratio with clear, stable echo and anti-noise design
12-digit AD with high-speed sampling for detailed echo diagrams
Compatible with probe frequency up to 20MHz
High-speed real-time flaw detection video recording with unlimited USB storage
IP65 rated with alloy and silica gel casing for water and dust protection
Extended battery life up to 15 hours per charge with dual battery support

Technical Specifications

Range	0-10000 mm (at steel velocity)
Material Velocity	100-20000 m/s
Pulse Repetition Frequency	20-2000Hz
Dynamic Range	≥38dB
Linearity	Horizontal: ±0.2%, Vertical: 2.0%, Amplifier Accuracy ±1 dB
Resolving Power	>40dB (5P14)
Sensitivity Leavings	>66dB
Operating Temperature	-10℃ to 50℃
Dimensions	240×150×50 mm
Weight	1.4kg

Advanced Functions

Automated display of precise flaw location parameters
Automatic flaw sizing using AVG or DAC/TCG
Automated calibration of transducer parameters
DAC/TCG and AVG curve creation and modification
Unlimited memory via USB connection
Real-time video recording of test process
Color B-scan capability
Built-in 15 industry standards
Bluetooth connectivity for mobile reporting
AWS D1.1 compliance

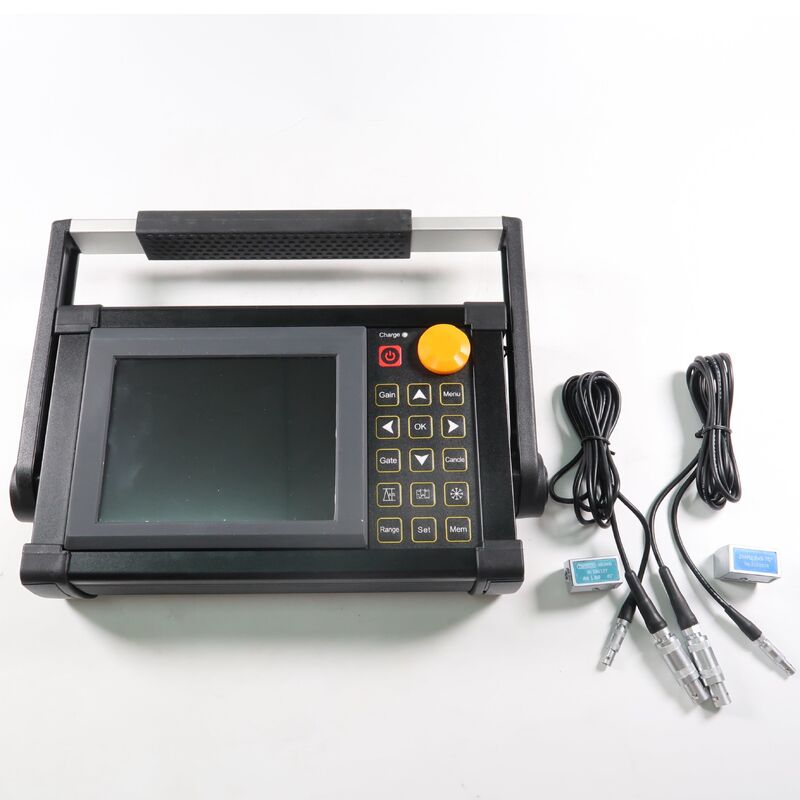

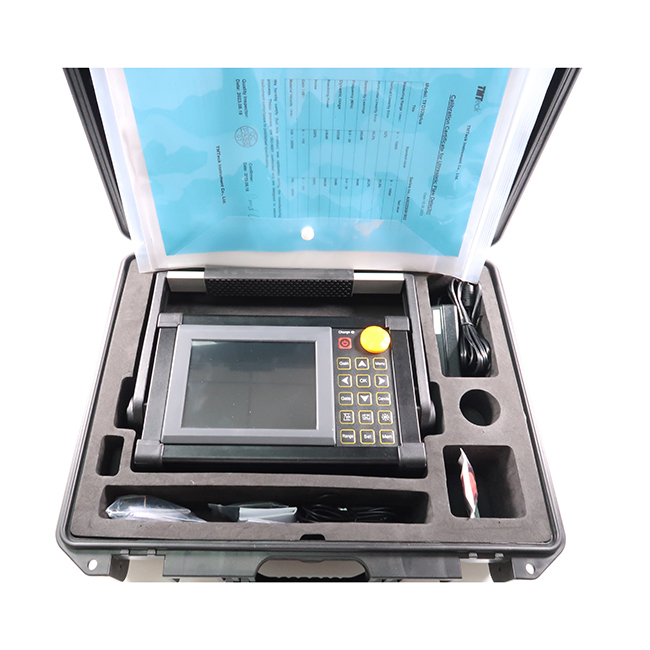

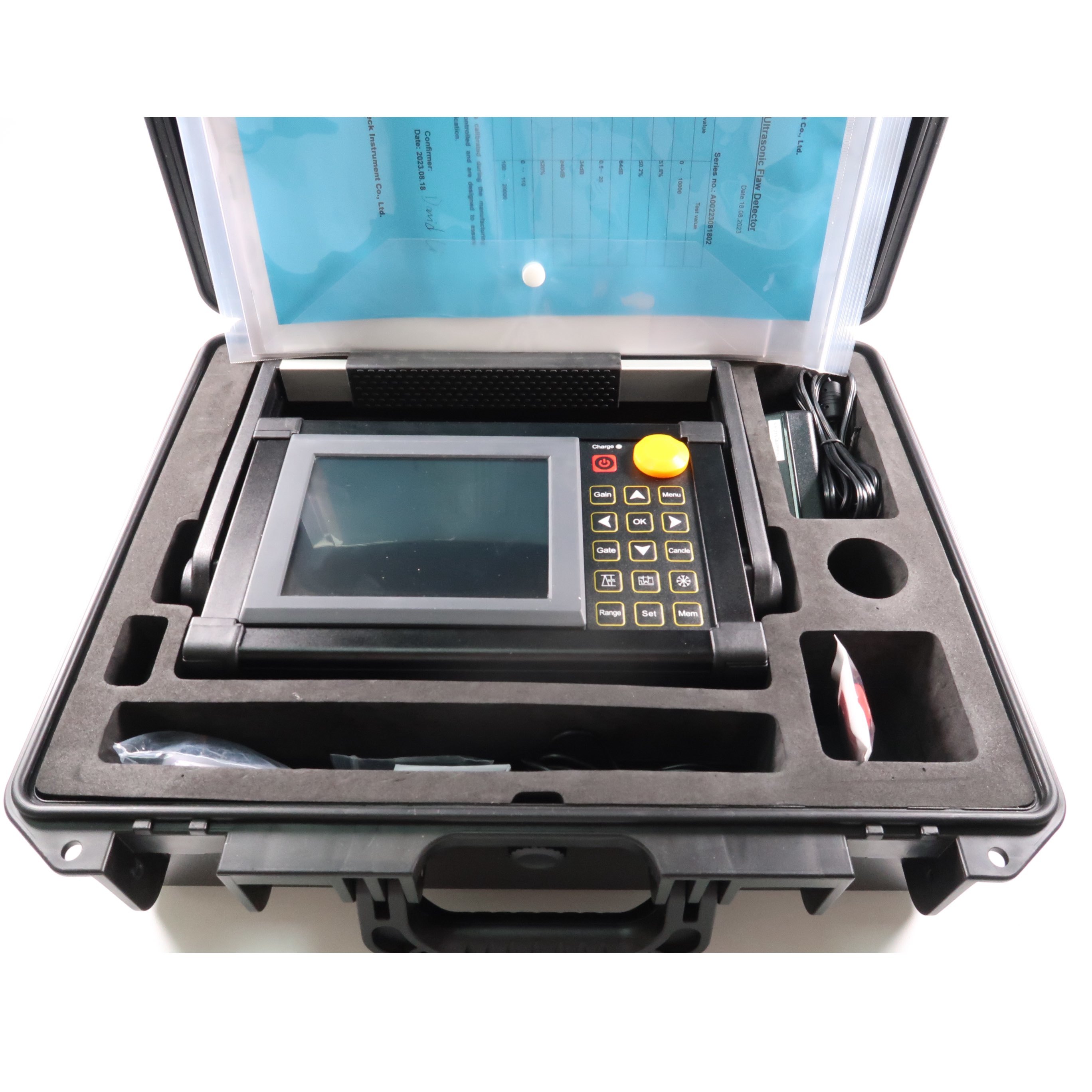

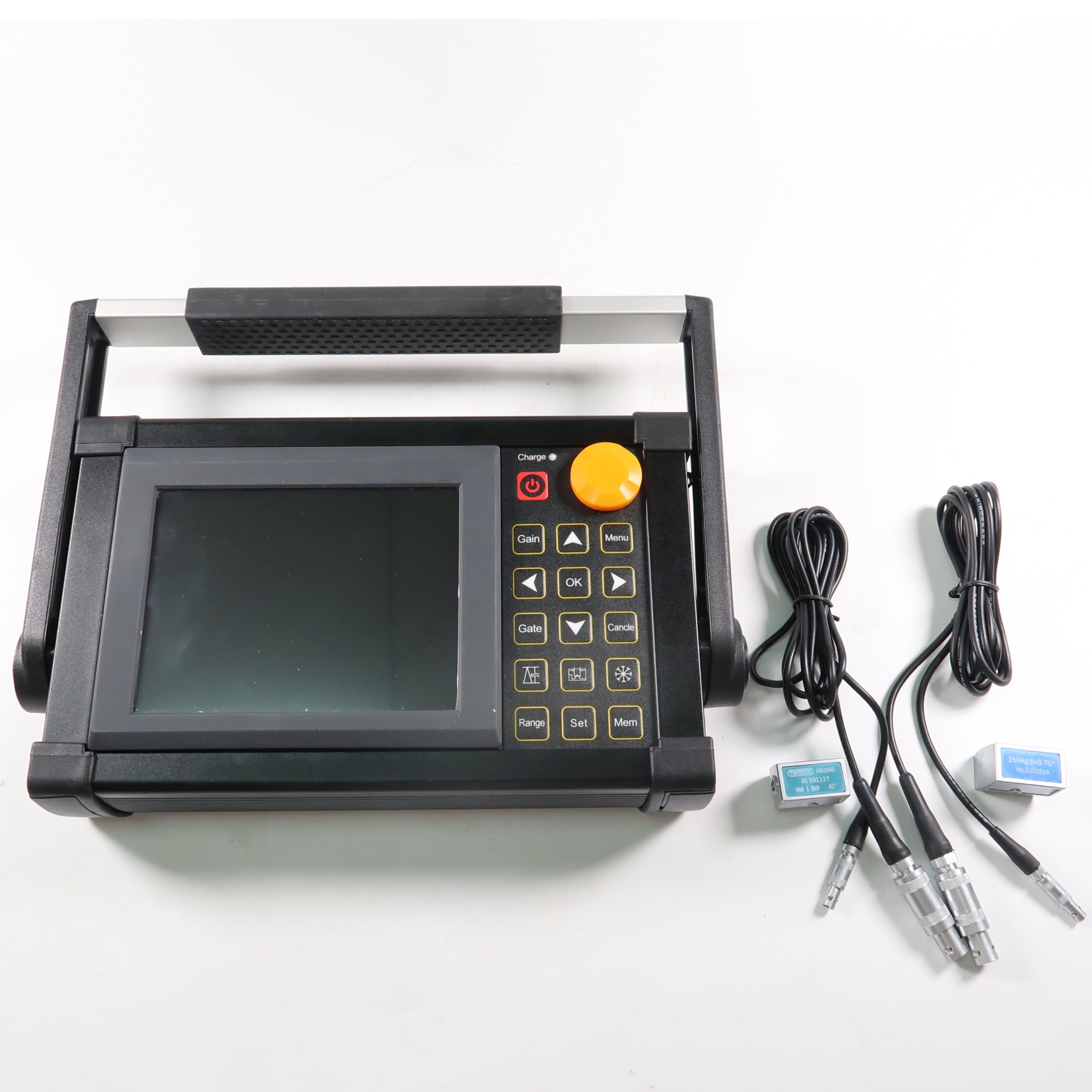

Standard Package Contents

Portable Ultrasonic Flaw Detector
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cables (Q9-C9 and C9-C5)
Rechargeable Li-Ion Battery Package (8 amp hour)
Power supply/charger unit
Operating Manual in English

Tag:

Place of Origin:	China
Brand Name:	TMTECK
Certification:	CE、ISO9001
Model Number:	TFD320PLUS
Document:	TFD320 PLUS Ultrasonic Flaw...or.pdf

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	50 pieces within one week
